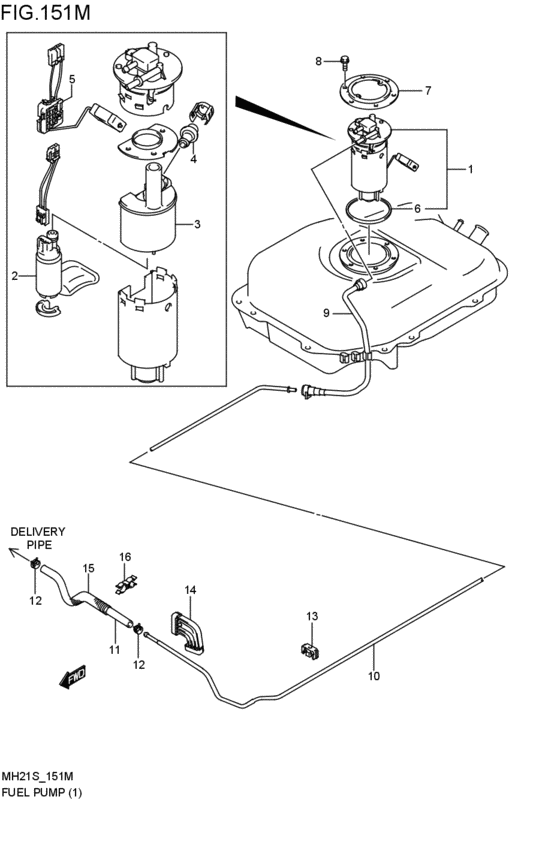

Fuel Pump (4V; 2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-58830-000
ポンプセット,フューエル
4V; 2003-09-01~2004-03-01 |
15100-58830-000 |
— | ||
|
2
|
2
15110-77G00-000
PUMP ASSY,FUEL
4V; 2003-09-01~2004-03-01 |
15110-77G00-000 |
— | ||
|
3
|
3
15310-58J00-000
フィルタアッシ,フューエル
4V; 2003-09-01~2004-03-01 |
15310-58J00-000 |
— | ||
|
4
|
4
15610-58J00-000
レギュレータアッシ,フューエル
4V; 2003-09-01~2004-03-01 |
15610-58J00-000 |
— | ||
|
5
|
5
34810-58J00-000
ゲージアッシ,フューエルレベル
4V; 2003-09-01~2004-03-01 |
34810-58J00-000 |
— | ||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMP4V; 2003-09-01~2004-03-01 |
15111-75F01-000 |
from US $8.84 |
||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMP4V; 2003-09-01~2004-03-01 |
15121-75F01-000 |
from US $6.17 |
||
|
8
|
8
02162-06103-000
Bolt
4V; 2003-09-01~2004-03-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREW4V; 2003-09-01~2004-03-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15812-58J00-000 PIPE,FUEL PUMP TO PIPEポンプツーパイプ; 4V; 2003-09-01~2004-03-01 |
15812-58J00-000 |
US $46 |
||
|
10
|
10
15811-58J00-000
パイプ,フューエル
4V; 2003-09-01~2004-03-01 |
15811-58J00-000 |
— | ||
| replacement | |||||
|
10
|
10
15811-58J02-000
PIPE,FUEL
4V; 2003-09-01~2004-03-01 |
15811-58J02-000 |
— | ||
|
11
|
11
15815-58J00-000
ホース,フューエル(パイプツーエンジン)
パイプツーエンジン; 4V; 2003-09-01~2004-03-01 |
15815-58J00-000 |
— | ||
| replacement | |||||
|
11
|
11
15815-58J01-000
ホース,フューエル(パイプツーエンジン)
パイプツーエンジン; 4V; 2003-09-01~2004-03-01 |
15815-58J01-000 |
— | ||
|
12
|
12
09401-11420-000 CLIP4V; 2003-09-01~2004-03-01 |
09401-11420-000 |
from US $1.26 |
||
|
13
|
13
15893-83G01-000 CLAMP,FUEL PIPE4V; 2003-09-01~2004-03-01 |
15893-83G01-000 |
US $1.52 |
||
|
14
|
14
15893-58J00-000
クランプ,フューエルパイプ
4V; 2003-09-01~2004-03-01 |
15893-58J00-000 |
— | ||
|
15
|
15
17858-86501-000 PROTECTOR,HOSEL:415>140; 4V; 2003-09-01~2004-03-01 |
17858-86501-000 |
US $11.68 |
||
|
16
|
16
09408-00173-000 CLAMP4V; 2003-09-01~2004-03-01 |
09408-00173-000 |
US $26.90 |
||
