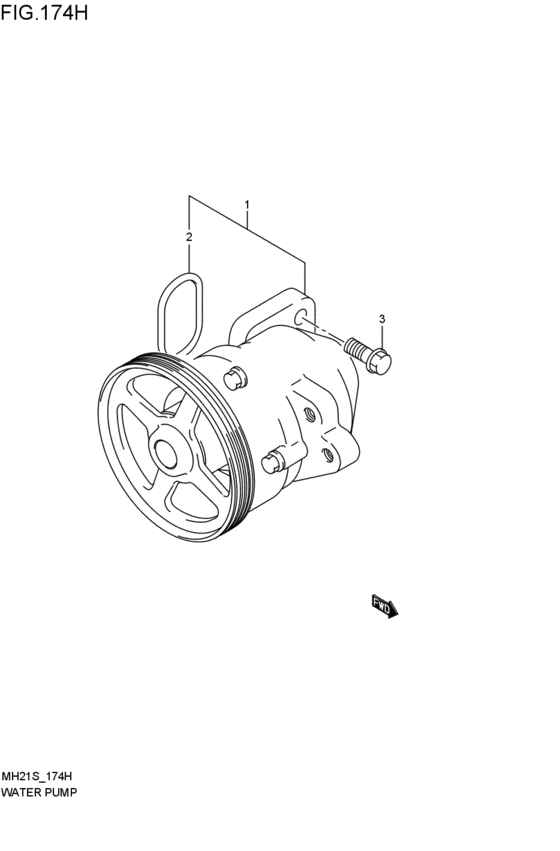

water pump (2003-09-01~2004-03-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 4WD
- transmission
- AT
- grade
- FB
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-58810-000
ポンプセット,ウォータ
4V; 2003-09-01~2003-10-01 |
17400-58810-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-58818-000
PUMP SET,WATER
4V; 2003-09-01~2003-10-01 |
17400-58818-000 |
— | ||
|
2
|
2
17611-73G00-000
O ring
2003-09-01~2004-03-01 |
17611-73G00-000 |
— | ||
| replacement | |||||
|
2
|
2
17611-73G03-000 O-RING,WATER PUMP2003-09-01~2004-03-01 |
17611-73G03-000 |
from US $4.95 |
||
|
3
|
3
01550-08303-000
Bolt
2003-09-01~2004-03-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830B-000 Bolt2003-09-01~2004-03-01 |
01550-0830B-000 |
from US $1.06 |
||
|
3
|
3
01550-0830A-000 BoltBolt, mount oil seal cover 2003-09-01~2004-03-01 |
01550-0830A-000 |
from US $1.06 |
||
