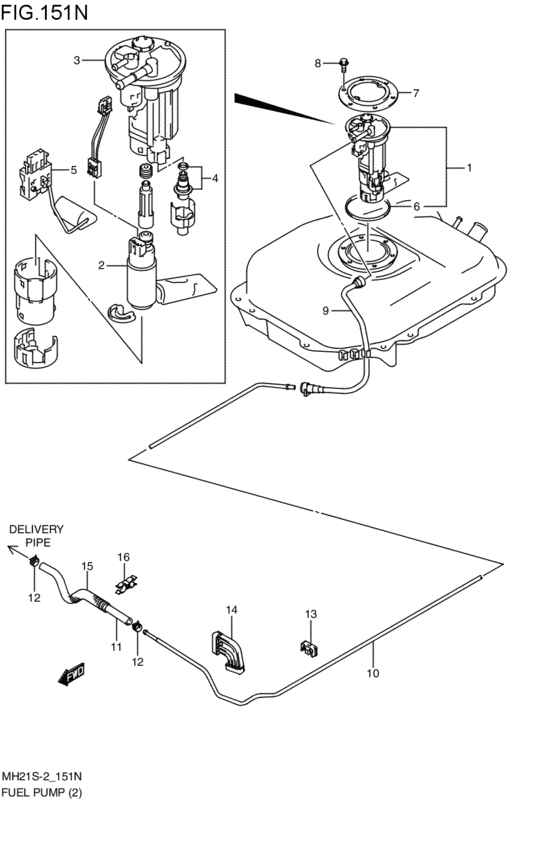

Fuel Pump (TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FCM
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-58821-000
Pump set,fuel
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15100-58821-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-58822-000
PUMP SET,FUEL
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15100-58822-000 |
— | ||
|
2
|
2
15110-58J50-000
ポンプアッシ,フューエル
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15110-58J50-000 |
— | ||
|
3
|
3
15310-58J51-000 FILTER ASSY,FUELTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15310-58J51-000 |
US $263.12 |
||
|
4
|
4
15610-76G50-000 REGULATOR ASSY,FUELTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15610-76G50-000 |
from US $51.37 |
||
|
5
|
5
34810-58J50-000 GAUGE ASSY,FUEL LEVELTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
34810-58J50-000 |
US $90.53 |
||
|
6
|
6
15111-75F01-000 GASKET,FUEL PUMPTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15111-75F01-000 |
from US $8.84 |
||
|
7
|
7
15121-75F01-000 PLATE,FUEL PUMPTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15121-75F01-000 |
from US $6.17 |
||
|
8
|
8
02162-06103-000
Bolt
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREWTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15812-58J00-000 PIPE,FUEL PUMP TO PIPEポンプ ツー パイプ; TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15812-58J00-000 |
US $46 |
||
|
10
|
10
15811-58J00-000
パイプ,フューエル
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-10-01 |
15811-58J00-000 |
— | ||
| replacement | |||||
|
10
|
10
15811-58J02-000
PIPE,FUEL
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-10-01 |
15811-58J02-000 |
— | ||
|
10
|
10
15811-58J01-000
パイプ,フューエル
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-10-01~2004-12-01 |
15811-58J01-000 |
— | ||
| replacement | |||||
|
10
|
10
15811-58J02-000
PIPE,FUEL
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-10-01~2004-12-01 |
15811-58J02-000 |
— | ||
|
11
|
11
15815-58J01-000
ホース,フューエル(パイプツーエンジン)
パイプ ツー エンジン; TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15815-58J01-000 |
— | ||
|
12
|
12
09401-11420-000 CLIPTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
09401-11420-000 |
from US $1.26 |
||
|
13
|
13
15893-83G01-000 CLAMP,FUEL PIPETURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15893-83G01-000 |
US $1.52 |
||
|
14
|
14
15893-58J00-000
クランプ,フューエルパイプ
TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-12-01 |
15893-58J00-000 |
— | ||
|
15
|
15
17858-86501-000 PROTECTOR,HOSEL:415>140; TURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-04-01~2004-10-01 |
17858-86501-000 |
US $11.68 |
||
|
16
|
16
09408-00220-000 СlampTURBO:(FC,FCS,FCSA,FCM,FCMA,FD,FR); 2004-10-01~2004-12-01 |
09408-00220-000 |
US $21.30 |
||
