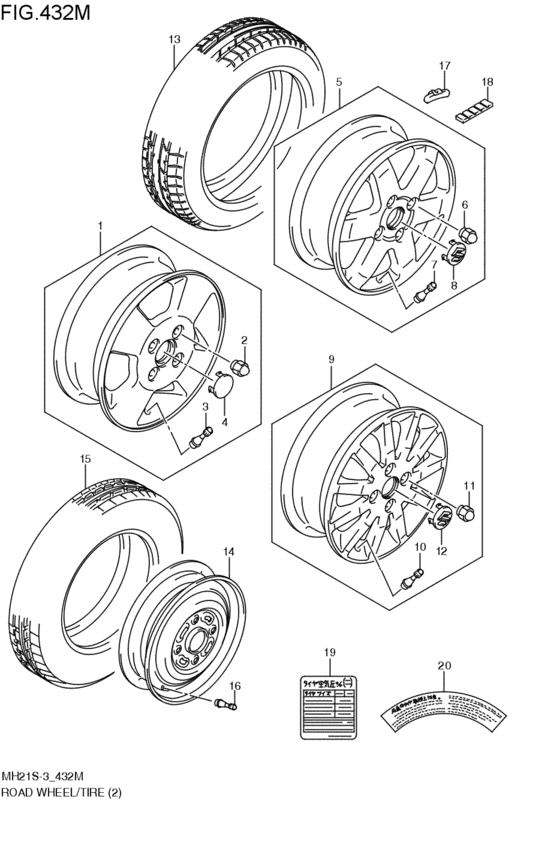

road wheel / tire (FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FCS
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- SAB-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
5
|
5
43200-59870-27N
ホイールセット,アルミ,14X4 1/2J(シルバー)
シルバ-; FBS,FCS,FCSA; 2004-12-01~2005-09-01 |
43200-59870-27N |
— | ||
|
6
|
6
09159-12050-000 NUTFBS,FCS,FCSA; 2004-12-01~2005-09-01 |
09159-12050-000 |
from US $3.04 |
||
|
7
|
7
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim BS; FBS,FCS,FCSA; 2004-12-01~2005-09-01 |
43130-78030-000 |
from US $4.46 |
||
|
8
|
8
43252-63J10-0PG CAP,WHEEL CTR(CHROME)クロ-ム; FBS,FCS,FCSA; 2004-12-01~2005-09-01 |
43252-63J10-0PG |
US $13.16 |
||
| replacement | |||||
|
8
|
8
43252-63J11-0PG
Cap,Wheel Ctr
クロ-ム; FBS,FCS,FCSA; 2004-12-01~2005-09-01 |
43252-63J11-0PG |
— | ||
|
13
|
13
43110-58J50-000
タイヤ,165/55R14 72V
BS; FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43110-58J50-000 |
— | ||
| replacement | |||||
|
13
|
13
43110-58J51-000
TIRE(165/55R14 72V)
BS; FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43110-58J51-000 |
— | ||
|
14
|
14
43290-73H00-000
WHEEL,SPARE(14X4T)
FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43290-73H00-000 |
— | ||
| replacement | |||||
|
14
|
14
43290-73H01-000 Wheel,spare(14X4T)FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43290-73H01-000 |
US $76.54 |
||
|
15
|
15
43180-53B11-000
タイヤ,スペア,T115/70 D14(FALKEN)
FALKEN; FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43180-53B11-000 |
— | ||
| replacement | |||||
|
15
|
15
43180-53B13-000
TIRE,SPARE(T115/70D14)
FALKEN; FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43180-53B13-000 |
— | ||
|
16
|
16
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim BS; FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43130-78030-000 |
from US $4.46 |
||
|
17
|
17
43221-73H10-000 WEIGHT,WHEEL BALANCE 5GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-73H10-000 |
US $2.13 |
||
|
17
|
17
43222-73H10-000 WEIGHT,WHEEL BALANCE 10GBalancer, wheel (10g) FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43222-73H10-000 |
from US $2.72 |
||
|
17
|
17
43223-73H10-000 WEIGHT,WHEEL BALANCE 15GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43223-73H10-000 |
US $3.02 |
||
|
17
|
17
43224-73H10-000 WEIGHT,WHEEL BALANCE 20GBalancer, wheel (20g) FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43224-73H10-000 |
from US $3.02 |
||
|
17
|
17
43225-73H10-000 WEIGHT,WHEEL BALANCE 25GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43225-73H10-000 |
US $3.31 |
||
|
17
|
17
43226-73H10-000 WEIGHT,WHEEL BALANCE 30GBalancer, wheel (30g) FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43226-73H10-000 |
from US $3.53 |
||
|
17
|
17
43227-73H10-000 WEIGHT,WHEEL BALANCE 35GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43227-73H10-000 |
US $3.75 |
||
|
17
|
17
43228-73H10-000 WEIGHT,WHEEL BALANCE 40GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43228-73H10-000 |
US $3.97 |
||
|
17
|
17
43231-54G10-000 WEIGHT,WHEEL BALANCE 45GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43231-54G10-000 |
US $4.64 |
||
|
18
|
18
43221-59J00-000 WEIGHT,WHEEL BALANCE 5GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J00-000 |
US $2.28 |
||
|
18
|
18
43221-59J10-000 WEIGHT,WHEEL BALANCE 10GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J10-000 |
from US $2.83 |
||
|
18
|
18
43221-59J20-000 WEIGHT,WHEEL BALANCE 15GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J20-000 |
US $3.09 |
||
|
18
|
18
43221-59J30-000 WEIGHT,WHEEL BALANCE 20GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J30-000 |
US $3.35 |
||
|
18
|
18
43221-59J40-000 WEIGHT,WHEEL BALANCE 25GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J40-000 |
US $3.57 |
||
|
18
|
18
43221-59J50-000 WEIGHT,WHEEL BALANCE 30GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J50-000 |
US $3.79 |
||
|
18
|
18
43221-59J60-000 WEIGHT,WHEEL BALANCE 35GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J60-000 |
US $4.01 |
||
|
18
|
18
43221-59J70-000 WEIGHT,WHEEL BALANCE 40GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J70-000 |
US $4.23 |
||
|
18
|
18
43221-59J80-000 WEIGHT,WHEEL BALANCE 45GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J80-000 |
US $4.45 |
||
|
18
|
18
43221-59J90-000 WEIGHT,WHEEL BALANCE 50GFBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
43221-59J90-000 |
US $4.75 |
||
|
19
|
19
79161-58J60-000
プラカード,タイヤインフォメーション
FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
79161-58J60-000 |
— | ||
|
20
|
20
79167-70G03-000
PLACARD,SPARE TIRE
FBM,FBS,FCS,FCSA,FR,FRS; 2004-12-01~2005-09-01 |
79167-70G03-000 |
— | ||
