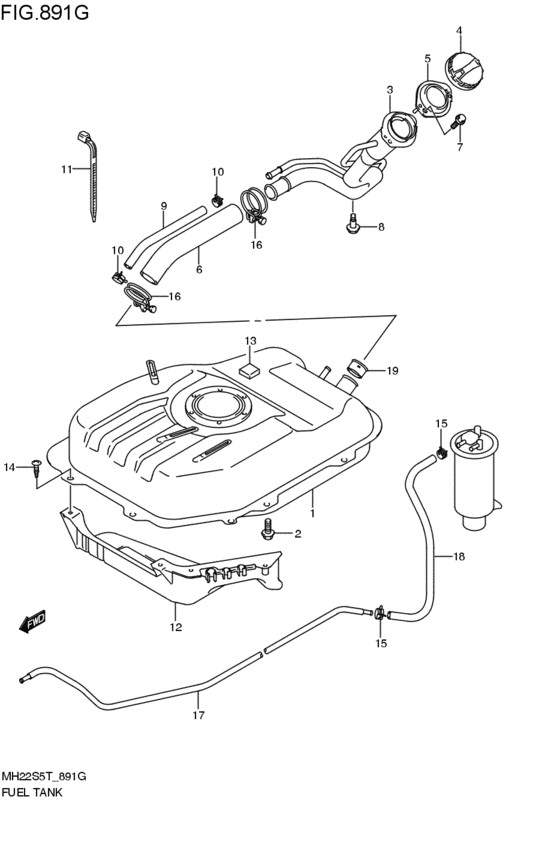

fuel tank (FL,FG,FB; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FB
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-58J50-000
タンクアッシ,フューエル
FL,FG,FB; 2007-05-01~ |
89101-58J50-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-58J51-000 TANK ASSY,FUELFL,FG,FB; 2007-05-01~ |
89101-58J51-000 |
US $347.76 |
||
|
2
|
2
09118-08161-000 BOLT(8X25)FL,FG,FB; 2007-05-01~ |
09118-08161-000 |
US $1.76 |
||
|
3
|
3
89210-58J00-000
ネック,フューエルフィラ
FL,FG,FB; 2007-05-01~ |
89210-58J00-000 |
— | ||
| replacement | |||||
|
3
|
3
89210-58J20-000
New Genuine Part
FL,FG,FB; 2007-05-01~ |
89210-58J20-000 |
— | ||
|
4
|
4
89260-73H00-000 CAP ASSY,FUEL FILLERFL,FG,FB; 2007-05-01~ |
89260-73H00-000 |
from US $19.82 |
||
|
5
|
5
89285-58J00-000 PACKING,FUEL FILLERFL,FG,FB; 2007-05-01~ |
89285-58J00-000 |
from US $4.34 |
||
|
6
|
6
89241-73H00-000 HOSE,FUEL TANK FILLERFL,FG,FB; 2007-05-01~ |
89241-73H00-000 |
US $70.40 |
||
|
7
|
7
09116-05014-000 BOLT(5X20)FL,FG,FB; 2007-05-01~ |
09116-05014-000 |
from US $0.63 |
||
|
8
|
8
09116-06205-000 BOLT(6X16)FL,FG,FB; 2007-05-01~ |
09116-06205-000 |
from US $0.96 |
||
|
9
|
9
09355-11188-600 HOSE(11X17.8X600)L:600>380; FL,FG,FB; 2007-05-01~ |
09355-11188-600 |
from US $6.71 |
||
|
10
|
10
09401-16407-000 CLIPFL,FG,FB; 2007-05-01~ |
09401-16407-000 |
from US $1.60 |
||
|
11
|
11
09407-19401-000 CLAMP(L:190)FL,FG,FB; 2007-05-01~ |
09407-19401-000 |
from US $4.17 |
||
|
12
|
12
89191-58J00-000 COVER,FUEL TANK,LOWERFL,FG,FB; 2007-05-01~ |
89191-58J00-000 |
US $24.10 |
||
|
13
|
13
89521-60B01-000 PAD,FUEL TANKFL,FG,FB; 2007-05-01~ |
89521-60B01-000 |
US $8.98 |
||
|
14
|
14
03541-0616A-000 SCREWFL,FG,FB; 2007-05-01~ |
03541-0616A-000 |
from US $0.64 |
||
|
15
|
15
09401-11415-000 CLIPFL,FG,FB; 2007-05-01~ |
09401-11415-000 |
from US $1.06 |
||
|
16
|
16
09400-45311-000 CLAMPFL,FG,FB; 2007-05-01~ |
09400-45311-000 |
from US $1.01 |
||
|
17
|
17
89483-58JA0-000
パイプ,フューエルエバポ
FL,FG,FB; 2007-05-01~ |
89483-58JA0-000 |
— | ||
| replacement | |||||
|
17
|
17
89483-58JA1-000
パイプ,フューエルエバポ
FL,FG,FB; 2007-05-01~ |
89483-58JA1-000 |
— | ||
|
18
|
18
09355-54128-600
Hose,5.4x12.2x600
L:600>560; FL,FG,FB; 2007-05-01~ |
09355-54128-600 |
— | ||
| replacement | |||||
|
18
|
18
09355-56128-600 HOSE(5.6X12.4X600)L:600>560; FL,FG,FB; 2007-05-01~ |
09355-56128-600 |
from US $8.46 |
||
|
19
|
19
89280-77A00-000 VALVE,FUEL TANK INLETFL,FG,FB; 2007-05-01~ |
89280-77A00-000 |
from US $5.87 |
||
