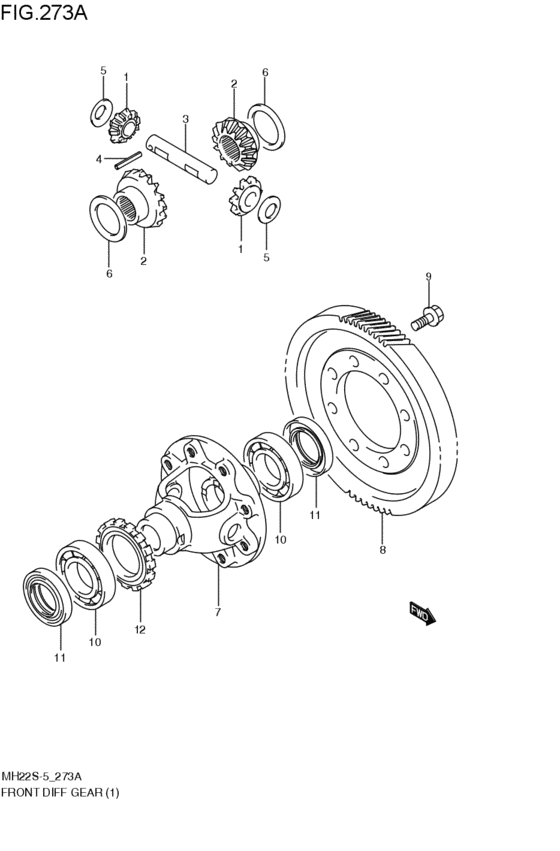

フロントデファレンシャルギヤ (2WD:MT; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- FBM
- abs
- ABS
- シートリフタ
- NLIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-78FJ1-000 PINION,DIFFERENTIAL2WD:MT; 2007-05-01~ |
27331-78FJ1-000 |
from US $25.94 |
||
|
2
|
2
27341-74B01-000 GEAR,FR DIFF2WD:MT; 2007-05-01~ |
27341-74B01-000 |
US $61.09 |
||
|
3
|
3
27351-62B00-000 SHAFT,DIFF SIDE PINION2WD:MT; 2007-05-01~ |
27351-62B00-000 |
from US $13.64 |
||
|
4
|
4
09205-05007-000 PIN,SPRING(5X36)2WD:MT; 2007-05-01~ |
09205-05007-000 |
from US $1.04 |
||
|
5
|
5
09164-15003-000 WASHER2WD:MT; 2007-05-01~ |
09164-15003-000 |
from US $1.60 |
||
|
6
|
6
09160-29012-000 WASHER(29X40X1)Washer (t:1.0) 2WD:MT; 2007-05-01~ |
09160-29012-000 |
from US $2.99 |
||
|
6
|
6
09160-29014-000 WASHER(29X40X0.9)2WD:MT; 2007-05-01~ |
09160-29014-000 |
US $33.10 |
||
|
6
|
6
09160-29015-000 WASHER(29X40X1.1)2WD:MT; 2007-05-01~ |
09160-29015-000 |
US $33.10 |
||
|
7
|
7
27411-76G21-000
ケース,フロントディファレンシャル
2WD:MT; 2007-05-01~ |
27411-76G21-000 |
— | ||
|
8
|
8
27511-60D02-000
ギヤ,ファイナル
2WD:MT; 2007-05-01~ |
27511-60D02-000 |
— | ||
|
9
|
9
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch 2WD:MT; 2007-05-01~ |
09103-10189-000 |
from US $2.56 |
||
|
10
|
10
08113-62060-000 BEARINGBearing, drive shaft rh 2WD:MT; 2007-05-01~ |
08113-62060-000 |
from US $12.38 |
||
|
11
|
11
27611-71B70-000 SEAL,DIFF SIDE OIL2WD:MT; 2007-05-01~ |
27611-71B70-000 |
US $15.86 |
||
|
12
|
12
26121-76G00-000
リング,エキサイタ
2WD:MT; 2007-05-01~ |
26121-76G00-000 |
— |
