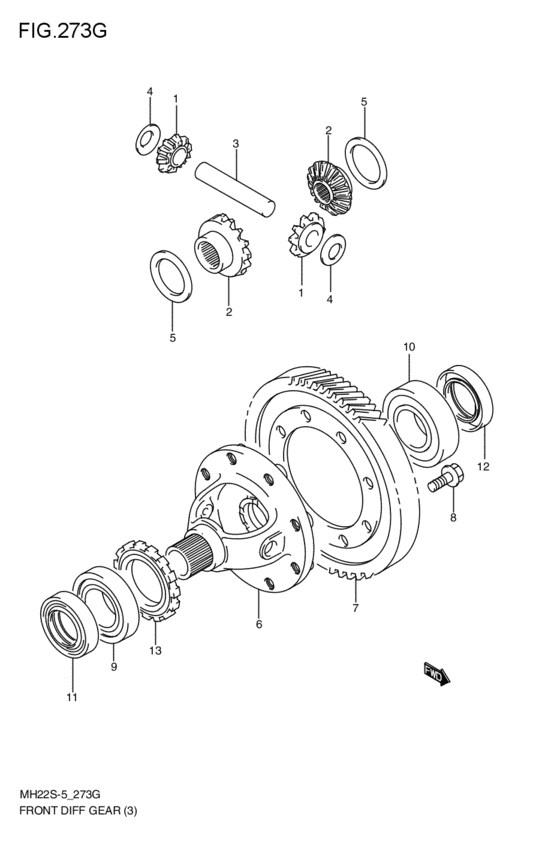

フロントデファレンシャルギヤ (4WD:MT; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 4WD
- transmission
- MT
- grade
- FB
- abs
- ABS
- シートリフタ
- NLIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-83020-000 PINION,DIFFERENTIAL4WD:MT; 2007-05-01~ |
27331-83020-000 |
from US $31.59 |
||
| replacements | |||||
|
1
|
1
27331-76A20-000
PINION,DIFFERENTIAL
4WD:MT; 2007-05-01~ |
27331-76A20-000 |
— | ||
|
1
|
1
27331-76A21-000 Pinion,differential4WD:MT; 2007-05-01~ |
27331-76A21-000 |
from US $31.91 |
||
|
2
|
2
27341-76A20-000
Gear,differential
4WD:MT; 2007-05-01~ |
27341-76A20-000 |
— | ||
| replacements | |||||
|
2
|
2
27341-76A21-000
GEAR,DIFF
4WD:MT; 2007-05-01~ |
27341-76A21-000 |
— | ||
|
2
|
2
27341-76A22-000 Gear,diff4WD:MT; 2007-05-01~ |
27341-76A22-000 |
from US $43.56 |
||
|
3
|
3
27555-53F00-000 SHAFT,DIFF SIDE PINION4WD:MT; 2007-05-01~ |
27555-53F00-000 |
US $26.31 |
||
|
4
|
4
09164-15006-000 WASHER4WD:MT; 2007-05-01~ |
09164-15006-000 |
from US $1.67 |
||
|
5
|
5
09160-35002-000 WASHER(35X46X1)4WD:MT; 2007-05-01~ |
09160-35002-000 |
from US $1.53 |
||
|
5
|
5
09160-35003-000 WASHER(35X46X1.1)4WD:MT; 2007-05-01~ |
09160-35003-000 |
from US $1.89 |
||
|
5
|
5
09160-35006-000 WASHER(35X46X0.9)4WD:MT; 2007-05-01~ |
09160-35006-000 |
from US $1.73 |
||
|
6
|
6
27411-78G21-000
ケース,ディファレンシャル
4WD:MT; 2007-05-01~ |
27411-78G21-000 |
— | ||
|
7
|
7
27511-72J00-000
ギヤ,ファイナル
4WD:MT; 2007-05-01~ |
27511-72J00-000 |
— | ||
|
8
|
8
09103-10189-000 BOLT(10X23)Bolt, starter one way clutch 4WD:MT; 2007-05-01~ |
09103-10189-000 |
from US $2.56 |
||
|
9
|
9
09262-35070-000 BEARING(35X62X14)4WD:MT; 2007-05-01~ |
09262-35070-000 |
from US $24.80 |
||
|
10
|
10
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) 4WD:MT; 2007-05-01~ |
09262-35038-000 |
from US $22.04 |
||
|
11
|
11
09283-40028-000 SEAL,OIL(40X58X9.6)4WD:MT; 2007-05-01~ |
09283-40028-000 |
from US $10.60 |
||
|
12
|
12
09283-40029-000 SEAL,OIL(40X62X8)4WD:MT; 2007-05-01~ |
09283-40029-000 |
from US $16.11 |
||
|
13
|
13
26121-80G10-000 RING,EXCITER4WD:MT; 2007-05-01~ |
26121-80G10-000 |
US $18.95 |
||
