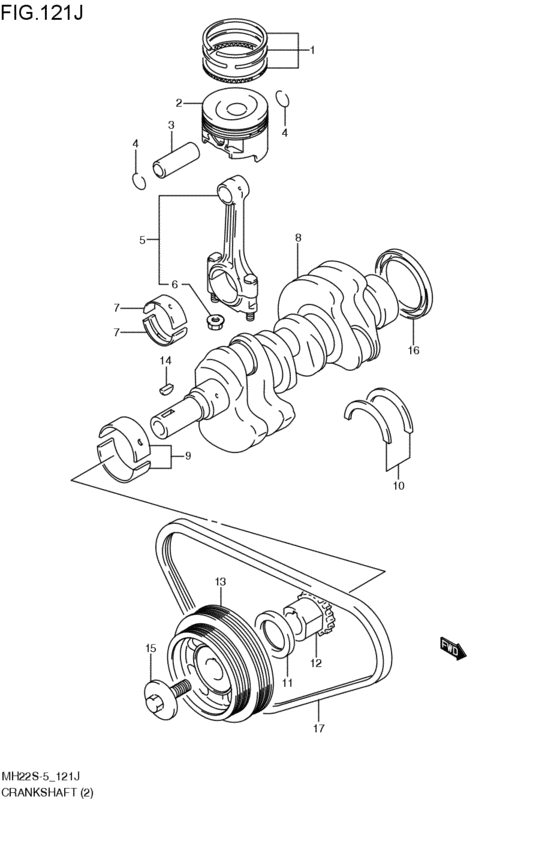

crankshaft (TURBO; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FCS
- abs
- ABS
- シートリフタ
- NLIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-73G01-000 RING SET,PISTON STDTURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
12140-73G01-000 |
from US $51.62 |
||
|
2
|
2
12111-73H51-0A0 PISTON,STD MARK 1マ-ク 1; TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
12111-73H51-0A0 |
from US $44.51 |
||
|
2
|
2
12111-73H51-0B0 PISTON,STD MARK 2マ-ク 2; TURBO:(FCS,FRF,ST,STM); 2007-05-01~ |
12111-73H51-0B0 |
US $78.02 |
||
|
3
|
3
12151-54A50-000 PIN,PISTONTURBO; 2007-05-01~ |
12151-54A50-000 |
from US $7.92 |
||
|
4
|
4
09381-17005-000 CIRCLIPTURBO; 2007-05-01~ |
09381-17005-000 |
from US $1.12 |
||
|
5
|
5
12160-58J00-000
Connrod assy
TURBO; 2007-05-01~ |
12160-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-58J01-000 CONNROD ASSYTURBO; 2007-05-01~ |
12160-58J01-000 |
from US $106.31 |
||
|
6
|
6
09159-08033-000 NUTTURBO; 2007-05-01~ |
09159-08033-000 |
from US $0.97 |
||
|
7
|
7
12181-84H00-0A0 BEARING,CONNROD STDTURBO; 2007-05-01~ |
12181-84H00-0A0 |
US $22.40 |
||
|
8
|
8
12221-73G70-000 CRANKSHAFTTURBO; 2007-05-01~ |
12221-73G70-000 |
US $1,362.20 |
||
|
9
|
9
12300-85870-0A0 BEARING SET,CRANK GREENカラー:グリーン,K6A-4444627カラ,K6A-7628731カラ; TURBO; 2008-08-01~ |
12300-85870-0A0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0B0 BEARING SET,CRANK BLACKカラー:ブラック,K6A-4444627カラ,K6A-7628731カラ; TURBO; 2008-08-01~ |
12300-85870-0B0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0C0 BEARING SET,CRANK NONカラー:ナシ,K6A-4444627カラ,K6A-7628731カラ; TURBO; 2008-08-01~ |
12300-85870-0C0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0D0 BEARING SET,CRANK YELLOWカラー:イエロー,K6A-4444627カラ,K6A-7628731カラ; TURBO; 2008-08-01~ |
12300-85870-0D0 |
from US $20.50 |
||
|
9
|
9
12300-85870-0E0 BEARING SET,CRANK BLUEカラー:ブラウン,K6A-4444627カラ,K6A-7628731カラ; TURBO; 2008-08-01~ |
12300-85870-0E0 |
from US $20.50 |
||
|
9
|
9
12340-69GA0-0C0 BEARING SET,CRANKSHAFT STD (BROWN)カラー:ブラウン; TURBO; 2007-05-01~2008-07-01 |
12340-69GA0-0C0 |
from US $13.86 |
||
|
9
|
9
12340-75FA0-0A0 BEARING SET,CRANKSHAFT STD (GREEN)カラー:グリーン; TURBO; 2007-05-01~2008-07-01 |
12340-75FA0-0A0 |
from US $14.74 |
||
|
9
|
9
12340-75FA0-0B0 BEARING SET,CRANKSHAFT STD (BLACK)カラー:ブラック; TURBO; 2007-05-01~2008-07-01 |
12340-75FA0-0B0 |
from US $15.44 |
||
|
9
|
9
12340-75F00-0C0 BEARING SET STD (Color: None)Bearing set, crankshaft カラー:ナシ; TURBO; 2007-05-01~2008-07-01 |
12340-75F00-0C0 |
from US $12.71 |
||
|
9
|
9
12340-75F00-0D0 BEARING SET,CRANKSHAFT STD (YELLOW)Bearing set, crankshaft カラー:イエロー; TURBO; 2007-05-01~2008-07-01 |
12340-75F00-0D0 |
from US $13.66 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
TURBO; 2007-05-01~ |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)TURBO; 2007-05-01~ |
12300-60840-000 |
from US $10.10 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
TURBO; 2007-05-01~ |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)TURBO; 2007-05-01~ |
12300-60840-012 |
from US $12.24 |
||
|
11
|
11
09283-35047-000 SEAL,OIL(35X47X6)Seal, oil TURBO; 2007-05-01~ |
09283-35047-000 |
from US $8.66 |
||
|
12
|
12
12631-58J00-000 Sprocket, Crankshaft TimingTURBO; 2007-05-01~ |
12631-58J00-000 |
from US $31.32 |
||
|
13
|
13
12611-58J50-000 PULLEYCRANKSHAFTTURBO; 2007-05-01~ |
12611-58J50-000 |
from US $90.63 |
||
|
14
|
14
09420-04008-000 KEYTURBO; 2007-05-01~ |
09420-04008-000 |
from US $1.76 |
||
|
15
|
15
12619-69G10-000 BOLT,CRANK PULLEYTURBO; 2007-05-01~ |
12619-69G10-000 |
from US $9.60 |
||
|
16
|
16
09283-79001-000
Seal, oil (78x99x8)
TURBO; 2007-05-01~ |
09283-79001-000 |
— | ||
| replacement | |||||
|
16
|
16
09283-79002-000 SEAL,OIL(79X99X8)TURBO; 2007-05-01~ |
09283-79002-000 |
from US $43.81 |
||
|
17
|
17
17521-84H00-000 BELT,WATER PUMP 4PK850TURBO; 2007-05-01~ |
17521-84H00-000 |
from US $10.60 |
||
