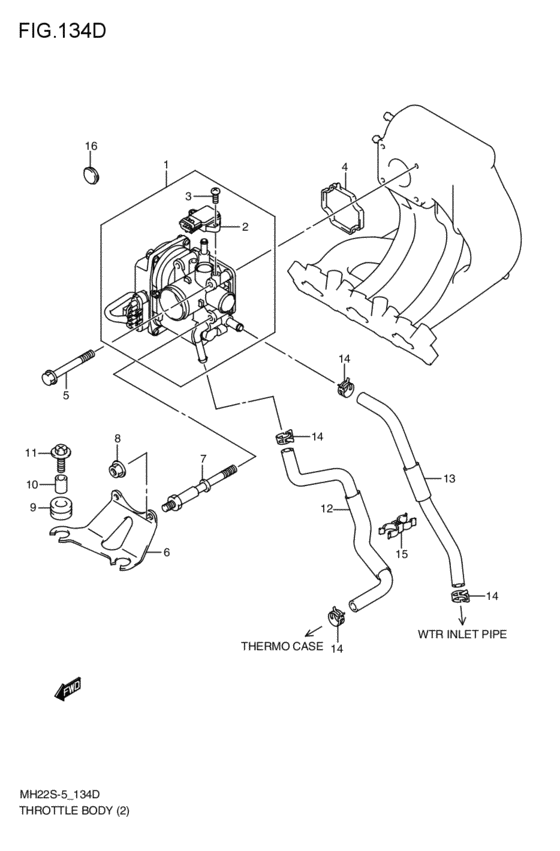

throttle body (4V:CVT; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- 4V
- drive
- 2WD
- transmission
- CVT
- grade
- FE
- abs
- ABS
- シートリフタ
- NLIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-58JV2-000 BODY ASSY,THROTTLE4V:CVT; 2007-05-01~ |
13400-58JV2-000 |
US $587.84 |
||
|
2
|
2
18590-68H00-000 SENSOR,PRESSURESensor, pressure 4V:CVT; 2007-05-01~ |
18590-68H00-000 |
from US $207.11 |
||
|
3
|
3
13601-05148-XC0 SCREW(5X14)4V:CVT; 2007-05-01~ |
13601-05148-XC0 |
from US $1.46 |
||
|
4
|
4
13421-83G00-000 GASKET,THROTTLE BODY4V:CVT; 2007-05-01~ |
13421-83G00-000 |
from US $8.60 |
||
|
5
|
5
01550-0650A-000 BoltBolt (6x50) 4V:CVT; 2007-05-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
6
|
6
13161-58J00-000
スチフナ,インテークマニホールド,NO.1
4V:CVT; 2007-05-01~ |
13161-58J00-000 |
— | ||
|
7
|
7
13428-73H00-000
ボルト
4V:CVT; 2007-05-01~ |
13428-73H00-000 |
— | ||
|
8
|
8
08316-1006A-000 NUT4V:CVT; 2007-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
9
|
9
09320-10048-000 CUSHION4V:CVT; 2007-05-01~ |
09320-10048-000 |
US $23.60 |
||
|
10
|
10
09180-07019-000 SPACER(7.2X10X11.5)4V:CVT; 2007-05-01~ |
09180-07019-000 |
from US $1.68 |
||
|
11
|
11
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber 4V:CVT; 2007-05-01~ |
09116-06150-000 |
from US $1.28 |
||
|
12
|
12
13491-58JA0-000
ホース,ウォータスロットルボディインレット
4V:CVT; 2007-05-01~ |
13491-58JA0-000 |
— | ||
|
13
|
13
13492-58JA0-000
ホース,ウォータスロットルボディアウトレット
4V:CVT; 2007-05-01~ |
13492-58JA0-000 |
— | ||
|
14
|
14
09401-12410-000 CLIPClip, filter outlet 4V:CVT; 2007-05-01~ |
09401-12410-000 |
from US $1.49 |
||
|
15
|
15
09408-00173-000 CLAMP4V:CVT; 2007-05-01~ |
09408-00173-000 |
US $26.90 |
||
|
16
|
16
09250-14009-000 CAP(OD:22)4V:CVT; 2007-05-01~ |
09250-14009-000 |
US $14.40 |
