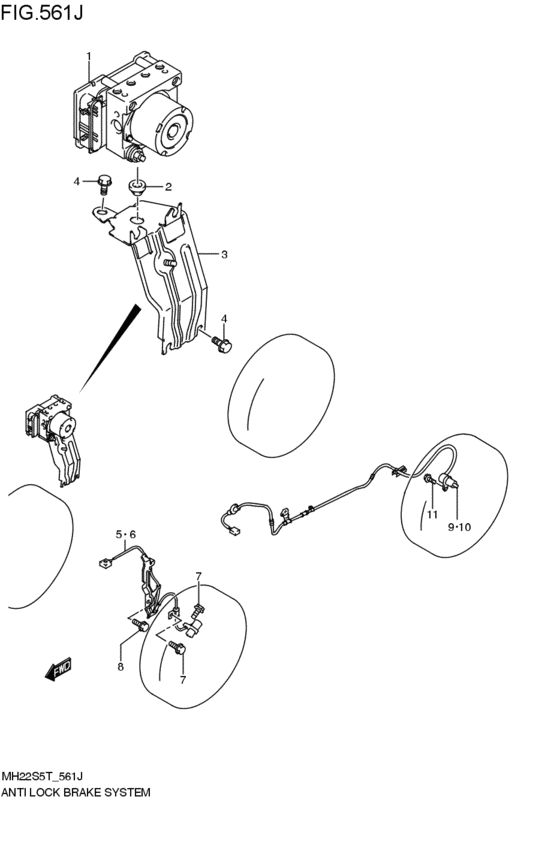

antilock brake system (2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FK
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-58JA0-000
アクチュエータアッシ,ABS
2WD; 2007-05-01~ |
56110-58JA0-000 |
— | ||
|
2
|
2
56121-58J00-000 DAMPER,ACTUATOR MOUNT2007-05-01~ |
56121-58J00-000 |
US $3.39 |
||
|
3
|
3
56160-58J00-000
ブラケット,アクチュエータ
2007-05-01~ |
56160-58J00-000 |
— | ||
|
4
|
4
01551-0812A-000 Bolt2007-05-01~ |
01551-0812A-000 |
US $13.20 |
||
|
5
|
5
56210-58J00-000
SENSOR,FR WHEEL,R
2007-05-01~ |
56210-58J00-000 |
— | ||
| replacement | |||||
|
5
|
5
56210-58J01-000
SENSOR,FR WHEEL,R
2007-05-01~ |
56210-58J01-000 |
— | ||
|
6
|
6
56220-58J00-000
SENSOR,FR WHEEL,L
2007-05-01~ |
56220-58J00-000 |
— | ||
| replacement | |||||
|
6
|
6
56220-58J01-000
SENSOR,FR WHEEL,L
2007-05-01~ |
56220-58J01-000 |
— | ||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2007-05-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
01550-0612A-000 Bolt2007-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
56310-57JF0-000
センサ,リヤホイール,ライト
FK; 2007-05-01~ |
56310-57JF0-000 |
— | ||
|
10
|
10
56320-57JF0-000
センサ,リヤホイール,レフト
FK; 2007-05-01~ |
56320-57JF0-000 |
— | ||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket 2007-05-01~ |
02162-0612A-000 |
from US $0.79 |
||
