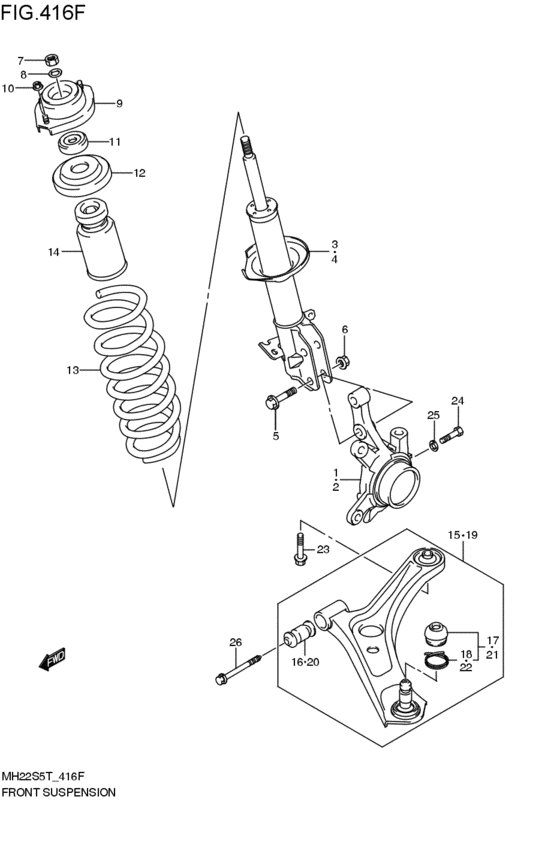

front suspension (2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FK
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45110-58810-000 KNUCKLE,STEERING,R2007-05-01~ |
45110-58810-000 |
US $184 |
||
|
2
|
2
45150-58810-000 KNUCKLE,STEERING,L2007-05-01~ |
45150-58810-000 |
US $176.27 |
||
|
3
|
3
41601-58J71-000
ストラットアッシ,フロントサスペンション,ライト
FK; 2007-05-01~ |
41601-58J71-000 |
— | ||
|
4
|
4
41602-58J71-000
ストラットアッシ,フロントサスペンション,レフト
FK; 2007-05-01~ |
41602-58J71-000 |
— | ||
|
5
|
5
09103-12051-000 BOLT(12X50)2007-05-01~ |
09103-12051-000 |
from US $2.56 |
||
|
6
|
6
09159-12068-000 NUT2007-05-01~ |
09159-12068-000 |
from US $1.49 |
||
|
7
|
7
08310-0012A-000 NUT2007-05-01~ |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08321-0112A-000 WASHER,LOCK2007-05-01~ |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
41710-58J00-000 SUPPORT ASSY,FRONT STRUT2007-05-01~ |
41710-58J00-000 |
US $54.72 |
||
|
10
|
10
09159-08123-000 NUT2007-05-01~ |
09159-08123-000 |
US $14.40 |
||
|
11
|
11
41741-72J00-000 BEARING,FR STRUT2007-05-01~ |
41741-72J00-000 |
from US $11.78 |
||
|
12
|
12
41230-58J00-000
シート,コイルスプリング,アッパ
2007-05-01~ |
41230-58J00-000 |
— | ||
|
13
|
13
41111-58J00-000
スプリング,フロントコイル
FK; 2007-05-01~ |
41111-58J00-000 |
— | ||
|
14
|
14
42111-58J00-000 STOPPER,FR BUMPFK; 2007-05-01~ |
42111-58J00-000 |
US $9.64 |
||
|
15
|
15
45201-58J01-000
アームアッシ,フロントサスペンションライト
2007-05-01~ |
45201-58J01-000 |
— | ||
| replacement | |||||
|
15
|
15
45201-58J10-000 ARM ASSY,FR SPNSN,R2007-05-01~ |
45201-58J10-000 |
from US $152.37 |
||
|
16
|
16
45530-58J00-000 BUSHING,SPNSN ARM,FR2007-05-01~ |
45530-58J00-000 |
US $20.42 |
||
|
17
|
17
45723-70B00-000
SEAL SET,DUST
2007-05-01~ |
45723-70B00-000 |
— | ||
| replacements | |||||
|
17
|
17
45723-70B01-000
Seal Set,dust
2007-05-01~ |
45723-70B01-000 |
— | ||
|
17
|
17
45700-70810-000 Seal Set,dust2007-05-01~ |
45700-70810-000 |
from US $20.48 |
||
|
18
|
18
09401-27402-000 CLIP2007-05-01~ |
09401-27402-000 |
from US $1.04 |
||
|
19
|
19
45202-58J01-000
アームアッシ,フロントサスペンションレフト
2007-05-01~ |
45202-58J01-000 |
— | ||
| replacement | |||||
|
19
|
19
45202-58J10-000 ARM ASSY,FR SPNSN,L2007-05-01~ |
45202-58J10-000 |
from US $279.45 |
||
|
20
|
20
45530-58J00-000 BUSHING,SPNSN ARM,FR2007-05-01~ |
45530-58J00-000 |
US $20.42 |
||
|
21
|
21
45723-70B00-000
SEAL SET,DUST
2007-05-01~ |
45723-70B00-000 |
— | ||
| replacements | |||||
|
21
|
21
45723-70B01-000
Seal Set,dust
2007-05-01~ |
45723-70B01-000 |
— | ||
|
21
|
21
45700-70810-000 Seal Set,dust2007-05-01~ |
45700-70810-000 |
from US $20.48 |
||
|
22
|
22
09401-27402-000 CLIP2007-05-01~ |
09401-27402-000 |
from US $1.04 |
||
|
23
|
23
09135-12017-000 BOLT(12X70)2007-05-01~ |
09135-12017-000 |
US $2.56 |
||
|
24
|
24
09100-10169-000 BOLT(10X40)2007-05-01~ |
09100-10169-000 |
US $2.08 |
||
|
25
|
25
08321-0110A-000 WASHER,LOCK2007-05-01~ |
08321-0110A-000 |
from US $0.96 |
||
|
26
|
26
45215-72J10-000 BOLT,SPNSN ARM FR BUSHING2007-05-01~ |
45215-72J10-000 |
from US $4.43 |
||
