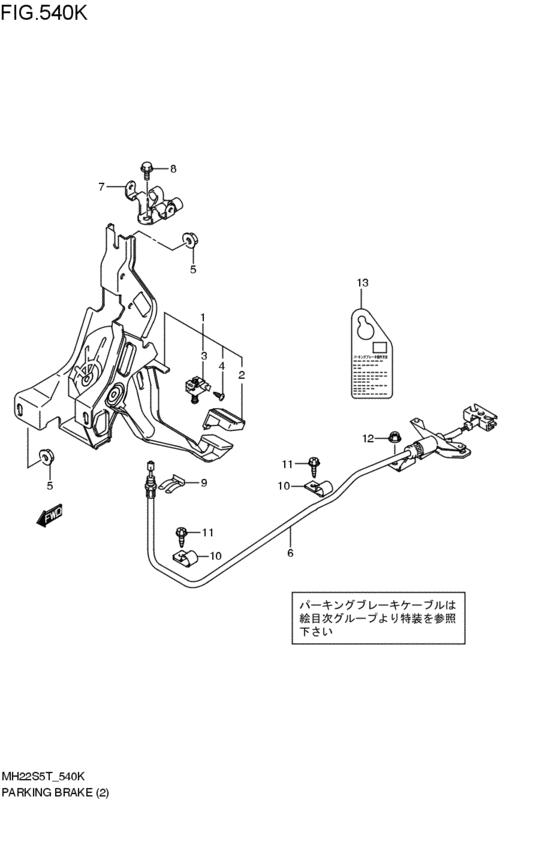

parking brakes (FK; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FK
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-58J11-000
ペダルアッシ,パーキングブレーキ
FK; 2007-05-01~ |
54100-58J11-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-58J12-000
New Genuine Part
FK; 2007-05-01~ |
54100-58J12-000 |
— | ||
|
2
|
2
54112-66H00-000 PAD,PARKING PEDALFK; 2007-05-01~ |
54112-66H00-000 |
US $13.06 |
||
|
3
|
3
37260-58J10-000 SWITCH ASSY,PARKING BRAKEFK; 2007-05-01~ |
37260-58J10-000 |
US $14.87 |
||
|
4
|
4
54115-76G00-000 SCREWFK; 2007-05-01~ |
54115-76G00-000 |
from US $1.37 |
||
|
5
|
5
09159-08127-000 NUTFK; 2007-05-01~ |
09159-08127-000 |
US $9.90 |
||
|
6
|
6
54410-58J11-000
ケーブル,パーキングブレーキ,フロント
FK; 2007-05-01~ |
54410-58J11-000 |
— | ||
|
7
|
7
54495-76G10-000 BRACKET,PARKING CABLEFK; 2007-05-01~ |
54495-76G10-000 |
US $9.35 |
||
|
8
|
8
01551-0816C-000 BoltFK; 2007-05-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
9
|
9
09383-08008-000 CLIPFK; 2007-05-01~ |
09383-08008-000 |
US $15.10 |
||
|
10
|
10
09403-12402-000 CLAMP(ID:12)Collier (id:12) FK; 2007-05-01~ |
09403-12402-000 |
US $13.20 |
||
|
11
|
11
09132-06008-000 SCREW(6X12)FK; 2007-05-01~ |
09132-06008-000 |
US $12.90 |
||
|
12
|
12
08316-1008A-000 NUTNut, idle gear shaft FK; 2007-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
13
|
13
54851-74F02-000 TAG,PARKING BRAKE WARNINGFK; 2007-05-01~ |
54851-74F02-000 |
US $5.30 |
||
