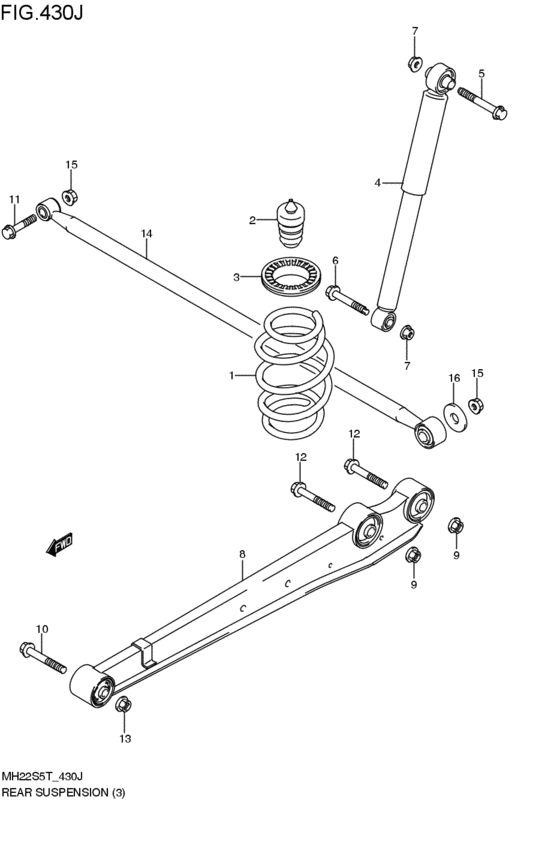

rear suspension (FK,FN2,FN3; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FK
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-58JA0-000
スプリング,リヤコイル
FK,FN2,FN3; 2007-05-01~ |
41311-58JA0-000 |
— | ||
|
2
|
2
42251-73H00-000 STOPPER,RR BUMPFK,FN2,FN3; 2007-05-01~ |
42251-73H00-000 |
US $18.18 |
||
|
3
|
3
41341-79A00-000 SEAT,REAR SPRING UPPERFK,FN2,FN3; 2007-05-01~ |
41341-79A00-000 |
from US $6.10 |
||
|
4
|
4
41800-58J01-000 アブソーバアッシ,リヤショックFK,FN2,FN3; 2007-05-01~ |
41800-58J01-000 |
US $167.81 |
||
|
5
|
5
41982-58J00-000
ボルト,アブソーバロア
FK,FN2,FN3; 2007-05-01~ |
41982-58J00-000 |
— | ||
|
6
|
6
41982-58JA0-000 BOLT,RR SHK ABSORBER LWRFK,FN2,FN3; 2007-05-01~ |
41982-58JA0-000 |
US $5.85 |
||
|
7
|
7
09159-12068-000 NUTFK,FN2,FN3; 2007-05-01~ |
09159-12068-000 |
from US $1.49 |
||
|
8
|
8
46200-58J00-000 ARM ASSY,RR TRAILINGFK,FN2,FN3; 2007-05-01~ |
46200-58J00-000 |
US $171.86 |
||
|
9
|
9
09159-12068-000 NUTFK,FN2,FN3; 2007-05-01~ |
09159-12068-000 |
from US $1.49 |
||
|
10
|
10
09103-12044-000 BOLT(12X87)FK,FN2,FN3; 2007-05-01~ |
09103-12044-000 |
from US $3.02 |
||
|
11
|
11
09103-12051-000 BOLT(12X50)FK,FN2,FN3; 2007-05-01~ |
09103-12051-000 |
from US $2.56 |
||
|
12
|
12
09103-12044-000 BOLT(12X87)FK,FN2,FN3; 2007-05-01~ |
09103-12044-000 |
from US $3.02 |
||
|
13
|
13
09159-12068-000 NUTFK,FN2,FN3; 2007-05-01~ |
09159-12068-000 |
from US $1.49 |
||
|
14
|
14
46300-58J00-000
ロッドアッシ,ラテラル
FK,FN2,FN3; 2007-05-01~ |
46300-58J00-000 |
— | ||
| replacement | |||||
|
14
|
14
46300-58J01-000 ROD ASSY,LATERALFK,FN2,FN3; 2007-05-01~ |
46300-58J01-000 |
US $88.32 |
||
|
15
|
15
08316-1012A-000 NUTFK,FN2,FN3; 2007-05-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
16
|
16
09164-12017-000 WASHERFK,FN2,FN3; 2007-05-01~ |
09164-12017-000 |
from US $1.44 |
||
