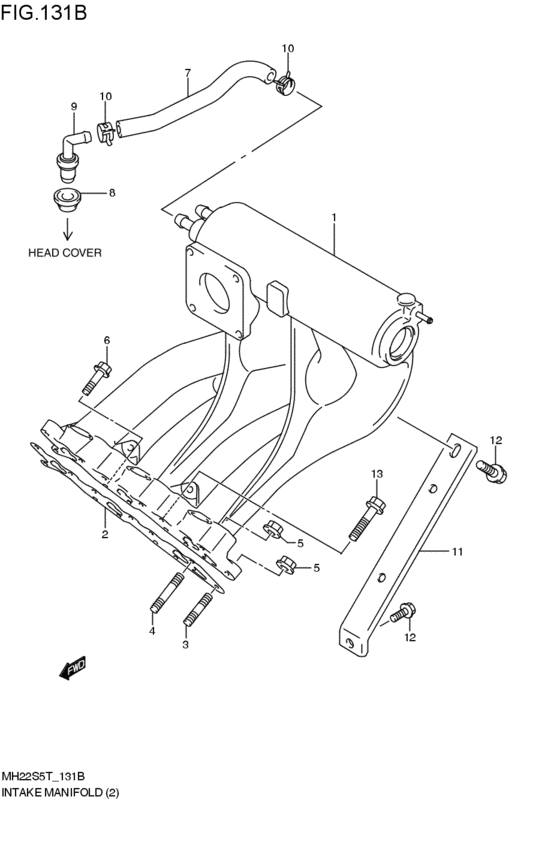

intake manifold (FN2,FN3; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FN2
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-84D40-000
マニホールド,インテーク
FN2,FN3; 2007-05-01~ |
13110-84D40-000 |
— | ||
|
2
|
2
13119-73G40-000 GASKET,INTK MANFGasket, intake manifold FN2,FN3; 2007-05-01~ |
13119-73G40-000 |
from US $8.93 |
||
|
3
|
3
09108-06137-000
スタッドボルト
FN2,FN3; 2007-05-01~ |
09108-06137-000 |
— | ||
|
4
|
4
09108-06138-000 BOLT,STUDFN2,FN3; 2007-05-01~ |
09108-06138-000 |
US $17.70 |
||
|
5
|
5
08316-1006A-000 NUTFN2,FN3; 2007-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
6
|
6
01550-0635A-000 BoltFN2,FN3; 2007-05-01~ |
01550-0635A-000 |
from US $0.96 |
||
|
7
|
7
11192-58J00-000
ホース,PCV
FN2,FN3; 2007-05-01~ |
11192-58J00-000 |
— | ||
|
8
|
8
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve FN2,FN3; 2007-05-01~ |
11198-58B00-000 |
from US $3.38 |
||
| replacement | |||||
|
8
|
8
11198-98L00-000 Seal,pcv ValveFN2,FN3; 2007-05-01~ |
11198-98L00-000 |
from US $2.74 |
||
|
9
|
9
18118-65H00-000 VALVE,PCVFN2,FN3; 2007-05-01~ |
18118-65H00-000 |
US $27.36 |
||
|
10
|
10
09401-13414-000 CLIPClip, pcv hose FN2,FN3; 2007-05-01~ |
09401-13414-000 |
from US $1.60 |
||
|
11
|
11
13161-83G01-000 STIFFENER,INTK MANFFN2,FN3; 2007-05-01~ |
13161-83G01-000 |
US $6.29 |
||
|
12
|
12
01550-0816A-000 BoltBolt, rear FN2,FN3; 2007-05-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
01550-0625A-000 BoltBolt FN2,FN3; 2007-05-01~ |
01550-0625A-000 |
from US $0.96 |
||
