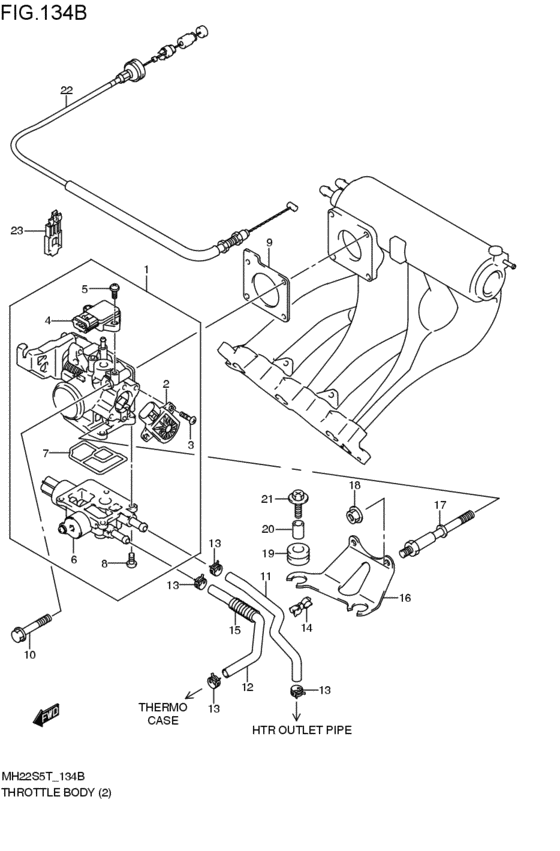

throttle body (FN2,FN3; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- drive
- 2WD
- grade
- FN2
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-84D42-000
ボディアッシ,スロットル
FN2,FN3; 2007-05-01~ |
13400-84D42-000 |
— | ||
|
2
|
2
13420-77G01-000 SENSOR,THROTTLE POSITIONFN2,FN3; 2007-05-01~ |
13420-77G01-000 |
from US $174.35 |
||
|
3
|
3
13428-77G1V-000 SCREW,4X12FN2,FN3; 2007-05-01~ |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18590-68H00-000 SENSOR,PRESSURESensor, pressure FN2,FN3; 2007-05-01~ |
18590-68H00-000 |
from US $207.11 |
||
|
5
|
5
13601-05148-XC0 SCREW(5X14)FN2,FN3; 2007-05-01~ |
13601-05148-XC0 |
from US $1.46 |
||
|
6
|
6
18117-84D41-000
バルブアッシ,ISC
FN2,FN3; 2007-05-01~ |
18117-84D41-000 |
— | ||
|
7
|
7
14139-77G10-000 GASKET,ISC VALVEFN2,FN3; 2007-05-01~ |
14139-77G10-000 |
from US $3.52 |
||
|
8
|
8
13601-05148-XC0 SCREW(5X14)FN2,FN3; 2007-05-01~ |
13601-05148-XC0 |
from US $1.46 |
||
|
9
|
9
13421-77G00-000 GASKET,THROTTLE BODYGasket, throttle body FN2,FN3; 2007-05-01~ |
13421-77G00-000 |
from US $2.24 |
||
|
10
|
10
01550-0650A-000 BoltBolt (6x50) FN2,FN3; 2007-05-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
11
|
11
17958-78G51-000 HOSE,WTR THROT OUTLETFN2,FN3; 2007-05-01~ |
17958-78G51-000 |
US $17.96 |
||
|
12
|
12
17959-78G50-000 HOSE,WTR THROT INLETFN2,FN3; 2007-05-01~ |
17959-78G50-000 |
US $15.42 |
||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet FN2,FN3; 2007-05-01~ |
09401-12410-000 |
from US $1.49 |
||
|
14
|
14
09408-00173-000 CLAMPFN2,FN3; 2007-05-01~ |
09408-00173-000 |
US $26.90 |
||
|
15
|
15
15816-83GA0-000 PROTECTORFN2,FN3; 2007-05-01~ |
15816-83GA0-000 |
US $2.58 |
||
|
16
|
16
13161-58J00-000
スチフナ,インテークマニホールド,NO.1
FN2,FN3; 2007-05-01~ |
13161-58J00-000 |
— | ||
|
17
|
17
13428-73H00-000
ボルト
FN2,FN3; 2007-05-01~ |
13428-73H00-000 |
— | ||
|
18
|
18
08316-1006A-000 NUTFN2,FN3; 2007-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
19
|
19
09320-10048-000 CUSHIONFN2,FN3; 2007-05-01~ |
09320-10048-000 |
US $23.60 |
||
|
20
|
20
09180-07019-000 SPACER(7.2X10X11.5)FN2,FN3; 2007-05-01~ |
09180-07019-000 |
from US $1.68 |
||
|
21
|
21
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber FN2,FN3; 2007-05-01~ |
09116-06150-000 |
from US $1.28 |
||
|
22
|
22
15910-58J00-000
ケーブルアッシ,アクセル
FN2,FN3; 2007-05-01~ |
15910-58J00-000 |
— | ||
|
23
|
23
15911-58J00-000 CLAMP,ACCEL CABLEFN2,FN3; 2007-05-01~ |
15911-58J00-000 |
US $2.43 |
