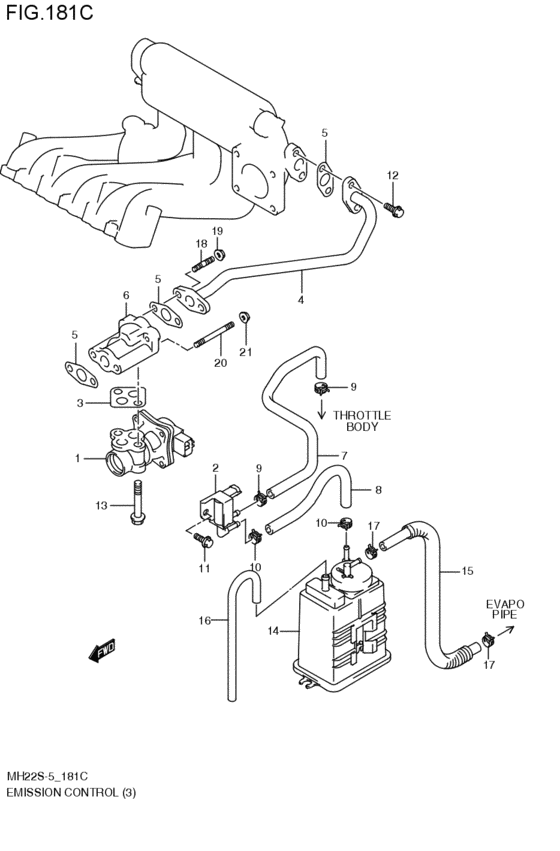

emission control (TURBO:(FRS,SZ,SZM); 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FRS
- abs
- ABS
- シートリフタ
- LIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-77E02-000 VALVE,EGRTURBO:(FRS,SZ,SZM); 2007-05-01~ |
18111-77E02-000 |
from US $309.11 |
||
|
2
|
2
18117-81AB2-000 VALVE,CANISTER PURGETURBO:(FRS,SZ,SZM); 2007-05-01~ |
18117-81AB2-000 |
US $130.40 |
||
|
3
|
3
18529-77E01-000 GASKET,EGR VALVETURBO:(FRS,SZ,SZM); 2007-05-01~ |
18529-77E01-000 |
from US $2.89 |
||
|
4
|
4
18530-58J70-000
パイプ,EGR
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
18530-58J70-000 |
— | ||
|
5
|
5
18539-58J70-000
ガスケット,EGRパイプ
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
18539-58J70-000 |
— | ||
|
6
|
6
18540-58J70-000
アダプタ,EGR
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
18540-58J70-000 |
— | ||
|
7
|
7
18564-58J50-000
ホース,バルブツースロットルボディ
TURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
18564-58J50-000 |
— | ||
| replacements | |||||
|
7
|
7
09401-11419-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
09401-11419-000 |
from US $1.42 |
||
|
7
|
7
18564-58J60-000
ホース,VSVツースロットルボディ
TURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
18564-58J60-000 |
— | ||
|
7
|
7
18564-58J60-000
ホース,VSVツースロットルボディ
TURBO:(FRS,SZ,SZM); 2008-02-01~ |
18564-58J60-000 |
— | ||
|
8
|
8
18565-58JB0-000
ホース,キャニスタツーVSV
TURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
18565-58JB0-000 |
— | ||
| replacements | |||||
|
8
|
8
18565-58JD0-000
ホース,キャニスタツーVSV
TURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
18565-58JD0-000 |
— | ||
|
8
|
8
09401-11419-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
09401-11419-000 |
from US $1.42 |
||
|
8
|
8
18565-58JD0-000
ホース,キャニスタツーVSV
TURBO:(FRS,SZ,SZM); 2008-02-01~ |
18565-58JD0-000 |
— | ||
|
9
|
9
09401-10409-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
09401-10409-000 |
from US $1.28 |
||
|
9
|
9
09401-11419-000 CLIPTURBO:(FRS,SZ,SZM); 2008-02-01~ |
09401-11419-000 |
from US $1.42 |
||
|
10
|
10
09401-10409-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~2008-01-01 |
09401-10409-000 |
from US $1.28 |
||
|
10
|
10
09401-11419-000 CLIPTURBO:(FRS,SZ,SZM); 2008-02-01~ |
09401-11419-000 |
from US $1.42 |
||
|
11
|
11
01550-0612A-000 BoltTURBO:(FRS,SZ,SZM); 2007-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
01550-0616A-000 BoltTURBO:(FRS,SZ,SZM); 2007-05-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
13
|
13
01550-0855A-000 BoltBolt, gear holder TURBO:(FRS,SZ,SZM); 2007-05-01~ |
01550-0855A-000 |
from US $1.22 |
||
|
14
|
14
18560-58J00-000
キャニスタ
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
18560-58J00-000 |
— | ||
|
15
|
15
18567-58J70-000
ホース,キャニスタインレット
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
18567-58J70-000 |
— | ||
|
16
|
16
18561-83G00-000
ホース,キャニスタサクション
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
18561-83G00-000 |
— | ||
| replacement | |||||
|
16
|
16
18561-83G01-000 HOSE,CANISTER SUCTIONTURBO:(FRS,SZ,SZM); 2007-05-01~ |
18561-83G01-000 |
US $7.95 |
||
|
17
|
17
09401-11419-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~ |
09401-11419-000 |
from US $1.42 |
||
|
18
|
18
01421-0616A-000 BOLT,STUDTURBO:(FRS,SZ,SZM); 2007-05-01~ |
01421-0616A-000 |
from US $1.07 |
||
|
19
|
19
08316-1006A-000 NUTTURBO:(FRS,SZ,SZM); 2007-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
20
|
20
01421-0675A-000 BOLT,STUDTURBO:(FRS,SZ,SZM); 2007-05-01~ |
01421-0675A-000 |
from US $5.41 |
||
|
21
|
21
08316-1006A-000 NUTTURBO:(FRS,SZ,SZM); 2007-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
