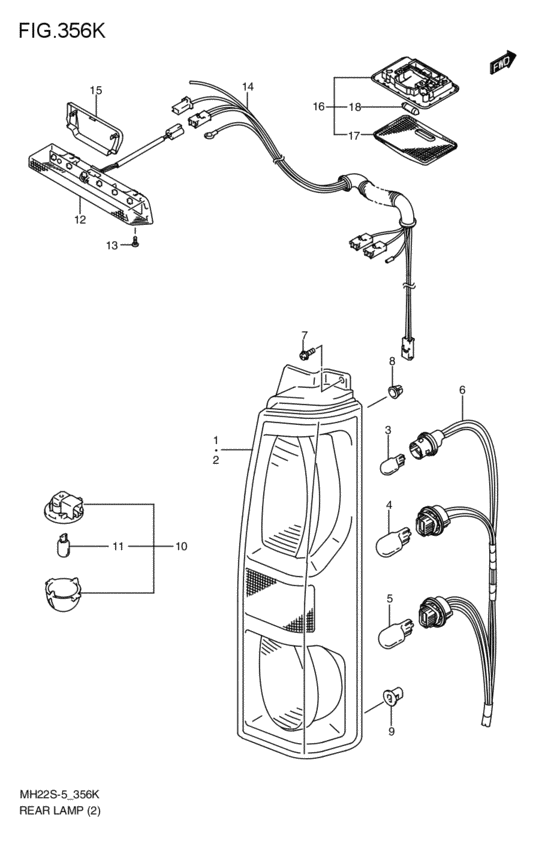

rear lamp (FRF,FRS; 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FRS
- abs
- ABS
- シートリフタ
- LIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-58J10-000
ランプユニット,リヤコンビネーション,ライト
FRF,FRS; 2007-05-01~ |
35650-58J10-000 |
— | ||
|
2
|
2
35670-58J10-000
ランプユニット,リヤコンビネーション,レフト
FRF,FRS; 2007-05-01~ |
35670-58J10-000 |
— | ||
|
3
|
3
09471-12192-000 BULB(12V21/5W)FRF,FRS; 2007-05-01~ |
09471-12192-000 |
from US $3.19 |
||
|
4
|
4
09471-12191-000 BULB(12V21W)FRF,FRS; 2007-05-01~ |
09471-12191-000 |
from US $4.23 |
||
|
5
|
5
09471-12146-000 BULB(12V16W)Bulb (12v18w) STANLEY; FRF,FRS; 2007-05-01~ |
09471-12146-000 |
from US $3.36 |
||
|
6
|
6
35658-58J10-000
ソケット/コードアッシ
FRF,FRS; 2007-05-01~ |
35658-58J10-000 |
— | ||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust FRF,FRS; 2007-05-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
35153-63G00-000 GROMMET,RR COMB LAMPFRF,FRS; 2007-05-01~ |
35153-63G00-000 |
from US $2.07 |
||
|
9
|
9
35153-54G00-000 GROMMET,RR COMB LAMPFRF,FRS; 2007-05-01~ |
35153-54G00-000 |
from US $1.53 |
||
|
10
|
10
35910-75F00-000
Lamp assy,license
FRF,FRS; 2007-05-01~ |
35910-75F00-000 |
— | ||
| replacement | |||||
|
10
|
10
35910-75F01-000 Lamp assy,licenseFRF,FRS; 2007-05-01~ |
35910-75F01-000 |
US $14.57 |
||
|
11
|
11
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; FRF,FRS; 2007-05-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; FRF,FRS; 2007-05-01~ |
09471-12216-000 |
from US $3.02 |
||
|
12
|
12
35810-82D30-000
ランプアッシ,ハイマウントストップ
FRF,FRS; 2007-05-01~ |
35810-82D30-000 |
— | ||
| replacement | |||||
|
12
|
12
35810-82D33-000 LAMP ASSY,HIGH MOUNT STOPFRF,FRS; 2007-05-01~ |
35810-82D33-000 |
US $90.53 |
||
|
13
|
13
02142-0412A-000 SCREWFRF,FRS; 2007-05-01~ |
02142-0412A-000 |
from US $0.43 |
||
|
14
|
14
36842-58J20-000
ワイヤ,ハイマウントストップ
FRF,FRS; 2007-05-01~ |
36842-58J20-000 |
— | ||
|
15
|
15
35819-58J10-P4Z
カバー,ハイマウントストップランプホール(グレー)
グレ-; FRF,FRS; 2007-05-01~ |
35819-58J10-P4Z |
— | ||
|
16
|
16
36210-58J00-6GS
Lamp assy,rr room
グレ-; FRF,FRS; 2007-05-01~ |
36210-58J00-6GS |
— | ||
| replacement | |||||
|
16
|
16
36210-58J03-6GS LAMP ASSY,RR ROOMグレ-; FRF,FRS; 2007-05-01~ |
36210-58J03-6GS |
from US $18.72 |
||
|
17
|
17
36212-58J00-000 LENSFRF,FRS; 2007-05-01~ |
36212-58J00-000 |
US $5.92 |
||
|
18
|
18
09471-12181-000 BULB(12V10W)FRF,FRS; 2007-05-01~ |
09471-12181-000 |
from US $3.26 |
||
