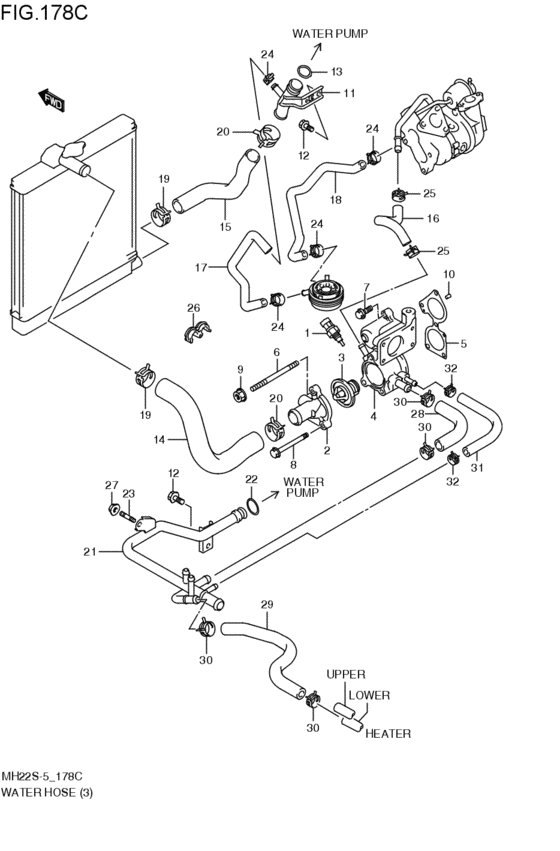

water hose (TURBO:(FRS,SZ,SZM); 2007-05-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- FRS
- abs
- ABS
- シートリフタ
- LIFTER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-73H00-000 Sensor,water TempTURBO:(FRS,SZ,SZM); 2007-05-01~ |
13650-73H00-000 |
from US $25 |
||
|
2
|
2
17561-58J70-000
キャップ,ウォータサーモ
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17561-58J70-000 |
— | ||
| replacements | |||||
|
2
|
2
01421-0612A-000 BOLT,STUDTURBO:(FRS,SZ,SZM); 2007-05-01~ |
01421-0612A-000 |
from US $1.12 |
||
|
2
|
2
17561-58J71-000
キャップ,ウォータサーモ
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17561-58J71-000 |
— | ||
|
2
|
2
17561-58J71-000
キャップ,ウォータサーモ
TURBO:(FRS,SZ,SZM); 2008-06-01~ |
17561-58J71-000 |
— | ||
|
3
|
3
17670-65G00-000 THERMOSTAT,WATER 88 DEGTURBO:(FRS,SZ,SZM); 2007-05-01~ |
17670-65G00-000 |
from US $24.75 |
||
|
4
|
4
17690-58J70-000 CASE,THERMOSTATTURBO:(FRS,SZ,SZM); 2007-05-01~ |
17690-58J70-000 |
US $111.87 |
||
|
5
|
5
17699-58J70-000 GASKET,THERMOSTAT CASETURBO:(FRS,SZ,SZM); 2007-05-01~ |
17699-58J70-000 |
US $5.67 |
||
|
6
|
6
01421-0685A-000 BOLT,STUDTURBO:(FRS,SZ,SZM); 2007-05-01~ |
01421-0685A-000 |
from US $1.37 |
||
|
7
|
7
01550-0625A-000 BoltBolt TURBO:(FRS,SZ,SZM); 2007-05-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
8
|
8
01550-0685A-000 BoltTURBO:(FRS,SZ,SZM); 2007-05-01~ |
01550-0685A-000 |
from US $2.94 |
||
|
9
|
9
08316-1008A-000 NUTNut, idle gear shaft TURBO:(FRS,SZ,SZM); 2007-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
10
|
10
04221-04089-000 PINPin, bal sprocket driven TURBO:(FRS,SZ,SZM); 2007-05-01~ |
04221-04089-000 |
from US $0.76 |
||
|
11
|
11
17830-58J60-000 パイプ,ウォータ,インレットTURBO:(FRS,SZ,SZM); 2007-05-01~ |
17830-58J60-000 |
US $29.81 |
||
|
12
|
12
01550-0816A-000 BoltBolt, rear TURBO:(FRS,SZ,SZM); 2007-05-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17849-53E00-000 |
from US $1.52 |
||
|
14
|
14
17852-58J71-000
ホース,ラジエータ,インレット
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17852-58J71-000 |
— | ||
|
15
|
15
17854-58J00-000 HOSE,RDTR OUTLETTURBO:(FRS,SZ,SZM); 2007-05-01~ |
17854-58J00-000 |
from US $15.97 |
||
|
16
|
16
17865-58J70-000
ホース,サーモツーターボ
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17865-58J70-000 |
— | ||
|
17
|
17
17858-58J60-000 1785858J60TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17858-58J60-000 |
from US $10.12 |
||
|
18
|
18
17866-58J61-000 1786658J61TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17866-58J61-000 |
from US $13.87 |
||
|
19
|
19
09401-30405-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~ |
09401-30405-000 |
from US $3.04 |
||
|
20
|
20
09401-30405-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~ |
09401-30405-000 |
from US $3.04 |
||
|
21
|
21
17840-58J70-000
パイプ,ヒータ,アウトレット
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17840-58J70-000 |
— | ||
|
22
|
22
17849-83G00-000 O-RING,HEATER OUTLET PIPETURBO:(FRS,SZ,SZM); 2007-05-01~ |
17849-83G00-000 |
from US $1.85 |
||
|
23
|
23
01411-0612A-000 BOLT,STUDTURBO:(FRS,SZ,SZM); 2007-05-01~2008-05-01 |
01411-0612A-000 |
from US $0.67 |
||
|
23
|
23
01421-0612A-000 BOLT,STUDTURBO:(FRS,SZ,SZM); 2008-06-01~ |
01421-0612A-000 |
from US $1.12 |
||
|
24
|
24
09401-14405-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~ |
09401-14405-000 |
US $12.50 |
||
|
25
|
25
09401-14405-000 CLIPTURBO:(FRS,SZ,SZM); 2007-05-01~ |
09401-14405-000 |
US $12.50 |
||
|
26
|
26
09408-00201-000 CLAMPTURBO:(FRS,SZ,SZM); 2007-05-01~ |
09408-00201-000 |
US $28.30 |
||
|
27
|
27
08316-1006A-000 NUTTURBO:(FRS,SZ,SZM); 2007-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
28
|
28
17871-58J70-000
ホース,ヒータインレット,NO.1
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17871-58J70-000 |
— | ||
|
29
|
29
17873-58J70-000
ホース,ヒータインレット,NO.2
TURBO:(FRS,SZ,SZM); 2007-05-01~ |
17873-58J70-000 |
— | ||
|
30
|
30
09401-18403-000 CLIPClip, heater hose TURBO:(FRS,SZ,SZM); 2007-05-01~ |
09401-18403-000 |
from US $1.53 |
||
|
31
|
31
09356-75141-600 HOSE(7.5X14.5X600)L:600>150; TURBO:(FRS,SZ,SZM); 2007-05-01~ |
09356-75141-600 |
from US $7.67 |
||
|
32
|
32
09401-12410-000 CLIPClip, filter outlet TURBO:(FRS,SZ,SZM); 2007-05-01~ |
09401-12410-000 |
from US $1.35 |
||
