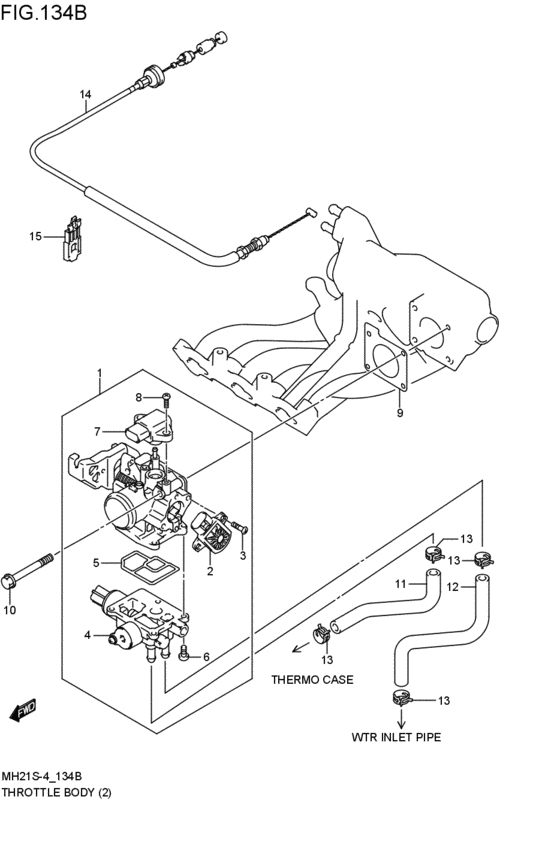

throttle body (TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2007 - 2011
- Sales region
- Japan
- supercharge
- TURBO
- drive
- 2WD
- transmission
- AT
- grade
- ST
- abs
- ABS
- 寒冷地
- COLD
- deice
- DEICE-N
- side air bag
- NSAB
- ディスチャージ
- DISCH
- star
- 3STAR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-58J50-000
ボディアッシ,スロットル
TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13400-58J50-000 |
— | ||
|
2
|
2
13420-77G00-000
Sensor, throttle position
TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13420-77G00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-77G01-000 SENSOR,THROTTLE POSITIONTURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13420-77G01-000 |
from US $174.35 |
||
|
3
|
3
13428-77G10-000
Screw
TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13428-77G10-000 |
— | ||
| replacement | |||||
|
3
|
3
13428-77G1V-000 SCREW,4X12TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18117-58J50-000 VALVE,ISCTURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
18117-58J50-000 |
US $353.28 |
||
|
5
|
5
14139-77G10-000 GASKET,ISC VALVETURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
14139-77G10-000 |
from US $3.52 |
||
|
6
|
6
13601-05148-XC0 SCREW(5X14)TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13601-05148-XC0 |
from US $1.46 |
||
|
7
|
7
18590-78G50-000 SENSOR,PRESSURETURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
18590-78G50-000 |
US $405.84 |
||
|
8
|
8
13601-05148-XC0 SCREW(5X14)TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13601-05148-XC0 |
from US $1.46 |
||
|
9
|
9
13421-77G00-000 GASKET,THROTTLE BODYGasket, throttle body TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13421-77G00-000 |
from US $2.24 |
||
|
10
|
10
01550-0650A-000 BoltBolt (6x50) TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
01550-0650A-000 |
from US $0.96 |
||
|
11
|
11
13491-58J50-000
ホース,ウォータスロットルボディ,インレット
TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13491-58J50-000 |
— | ||
|
12
|
12
13492-58J50-000
ホース,ウォータスロットルボディ,アウトレット
TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
13492-58J50-000 |
— | ||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
09401-12410-000 |
from US $1.35 |
||
|
14
|
14
15910-58J50-000
ケーブルアッシ,アクセル
TURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
15910-58J50-000 |
— | ||
|
15
|
15
15911-58J00-000 CLAMP,ACCEL CABLETURBO:(FC,FCS,FCSC,FCSN,FE,FRF,ST); 2005-08-01~2007-06-01 |
15911-58J00-000 |
US $2.43 |
||
