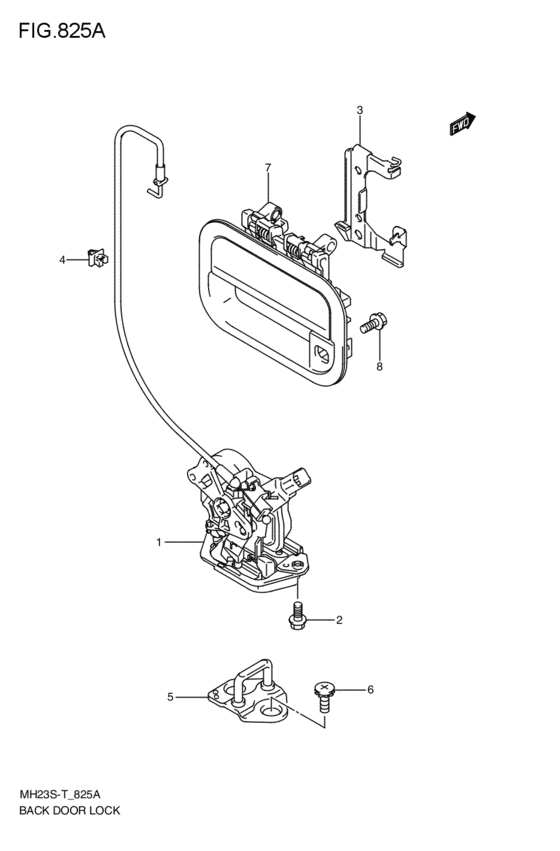

back door lock (2008-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FL
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-66K01-000
ラッチアッシ,バックドア
2008-08-01~ |
82510-66K01-000 |
— | ||
| replacement | |||||
|
1
|
1
82510-66K04-000 New Genuine Part2008-08-01~ |
82510-66K04-000 |
US $56.67 |
||
|
2
|
2
09122-76001-000 SCREW(6X16)2008-08-01~ |
09122-76001-000 |
from US $0.80 |
||
|
3
|
3
82521-66K00-000
ブラケット,アウトサイドハンドルケーブル
2008-08-01~ |
82521-66K00-000 |
— | ||
|
4
|
4
83271-60D00-000 CLIP2008-08-01~ |
83271-60D00-000 |
from US $1.80 |
||
|
5
|
5
82650-66K00-000
ストライカ,バックドアラッチ
2008-08-01~ |
82650-66K00-000 |
— | ||
| replacement | |||||
|
5
|
5
82650-50M00-000 STRIKER,BACK DOOR LATCH2008-08-01~ |
82650-50M00-000 |
US $9.57 |
||
|
6
|
6
09137-08004-000 SCREW(8X18)2008-08-01~ |
09137-08004-000 |
from US $0.99 |
||
| replacement | |||||
|
6
|
6
09137-08011-000 SCREW(8X18)2008-08-01~ |
09137-08011-000 |
from US $1.40 |
||
|
7
|
7
82850-58J01-Z2S
ハンドル,バックドア(ベージュ)
FL,FG,FK; 2008-08-01~ |
82850-58J01-Z2S |
— | ||
| replacement | |||||
|
7
|
7
82850-58J02-Z2S
New Genuine Part
FL,FG,FK; 2008-08-01~ |
82850-58J02-Z2S |
— | ||
|
7
|
7
82850-58J01-26U
ハンドル,バックドア(ベージュ)
FL,FK; 2008-08-01~ |
82850-58J01-26U |
— | ||
| replacement | |||||
|
7
|
7
82850-58J02-26U
New Genuine Part
FL,FK; 2008-08-01~ |
82850-58J02-26U |
— | ||
|
8
|
8
02162-0616A-000 SCREW2008-08-01~ |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
8
|
8
02162-0616B-000 SCREWBolt, adjust 2008-08-01~ |
02162-0616B-000 |
from US $0.96 |
||
