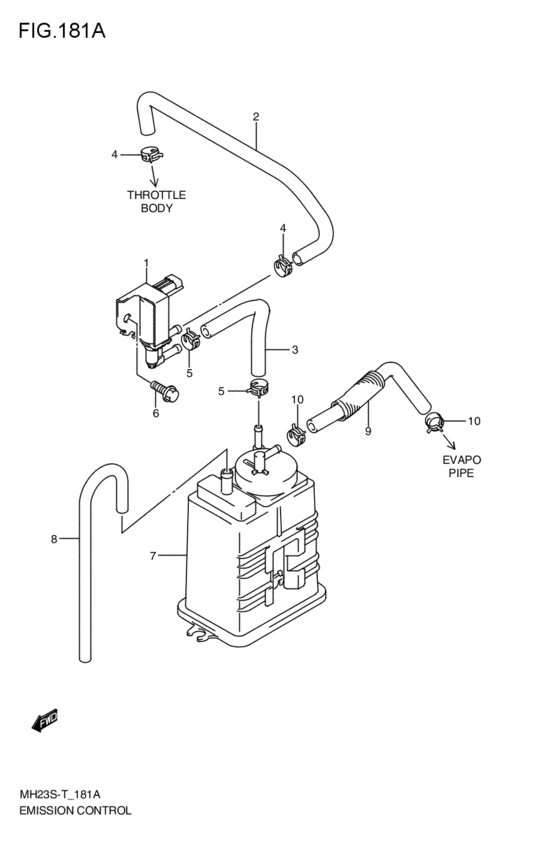

emission control (2008-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FL
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-N
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-82K00-000 VALVE,CANISTER PURGE2008-08-01~ |
18117-82K00-000 |
from US $76.18 |
||
|
2
|
2
18564-85K00-000
ホース,VSVツースロットルボディ
2008-08-01~ |
18564-85K00-000 |
— | ||
|
3
|
3
18565-85K00-000
ホース,キャニスタツーVSV
2008-08-01~ |
18565-85K00-000 |
— | ||
|
4
|
4
09401-11419-000 CLIP2008-08-01~ |
09401-11419-000 |
from US $1.42 |
||
|
5
|
5
09401-11419-000 CLIP2008-08-01~ |
09401-11419-000 |
from US $1.42 |
||
|
6
|
6
01550-0612A-000 Bolt2008-08-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
18560-58J00-000
キャニスタ
2008-08-01~ |
18560-58J00-000 |
— | ||
|
8
|
8
18561-83G01-000 HOSE,CANISTER SUCTION2008-08-01~ |
18561-83G01-000 |
US $7.95 |
||
|
9
|
9
18567-58JA0-000
ホース,キャニスタインレット
2008-08-01~ |
18567-58JA0-000 |
— | ||
| replacement | |||||
|
9
|
9
09355-56128-600 HOSE(5.6X12.4X600)2008-08-01~ |
09355-56128-600 |
from US $8.46 |
||
|
10
|
10
09401-11419-000 CLIP2008-08-01~ |
09401-11419-000 |
from US $1.42 |
||
