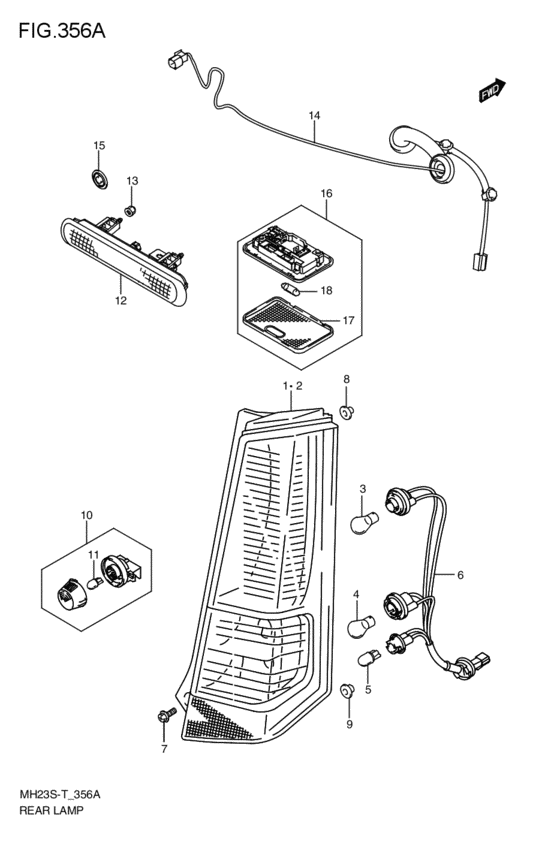

rear lamp (2008-08-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2008 - 2011
- Sales region
- Japan
- drive
- 4WD
- grade
- FL
- rear seat
- RRSEAT
- リヤ固定装置
- RRLOCK-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-70K00-000 LAMP UNIT,RR COMB,R2008-08-01~ |
35650-70K00-000 |
US $156.40 |
||
|
2
|
2
35670-70K00-000 LAMP UNIT,RR COMB,L2008-08-01~ |
35670-70K00-000 |
US $156.40 |
||
|
3
|
3
09471-12046-000 BULB(12V21/5W)2008-08-01~ |
09471-12046-000 |
from US $1.91 |
||
| replacement | |||||
|
3
|
3
09471-12128-000 BULB(12V21/5W,BF141-49642A)2008-08-01~ |
09471-12128-000 |
from US $7.20 |
||
|
4
|
4
09471-12186-000 BULB(12V21W,AMBER)2008-08-01~ |
09471-12186-000 |
from US $9.23 |
||
|
5
|
5
09471-12146-000 BULB(12V16W)Bulb (12v18w) 2008-08-01~ |
09471-12146-000 |
from US $3.36 |
||
|
6
|
6
35658-70K00-000
ソケット/コードアッシ
2008-08-01~ |
35658-70K00-000 |
— | ||
| replacement | |||||
|
6
|
6
35658-70K03-000
New Genuine Part
2008-08-01~ |
35658-70K03-000 |
— | ||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2008-08-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
35153-63G00-000 GROMMET,RR COMB LAMP2008-08-01~ |
35153-63G00-000 |
from US $2.07 |
||
|
9
|
9
35153-54G00-000 GROMMET,RR COMB LAMP2008-08-01~ |
35153-54G00-000 |
from US $1.53 |
||
|
10
|
10
35910-75F00-000
Lamp assy,license
2008-08-01~ |
35910-75F00-000 |
— | ||
| replacement | |||||
|
10
|
10
35910-75F01-000 Lamp assy,license2008-08-01~ |
35910-75F01-000 |
US $14.57 |
||
|
11
|
11
09471-12081-000
Bulb (12v,5w)
2008-08-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
11
|
11
09471-12216-000 BULB(12V5W)Bulb (12v5w) 2008-08-01~ |
09471-12216-000 |
from US $3.02 |
||
|
12
|
12
35810-85K00-000
ランプアッシ,ハイマウントストップ
2008-08-01~ |
35810-85K00-000 |
— | ||
|
13
|
13
09159-06100-000 NUT2008-08-01~ |
09159-06100-000 |
from US $4.28 |
||
|
14
|
14
36842-70K00-000
ワイヤ,ハイマウントストップランプ
2008-08-01~ |
36842-70K00-000 |
— | ||
|
15
|
15
09250-20023-000 CAP(OD:25.8)2008-08-01~ |
09250-20023-000 |
from US $1.67 |
||
|
16
|
16
36210-58J00-6GS
Lamp assy,rr room
2008-08-01~ |
36210-58J00-6GS |
— | ||
| replacement | |||||
|
16
|
16
36210-58J03-6GS LAMP ASSY,RR ROOM2008-08-01~ |
36210-58J03-6GS |
from US $18.72 |
||
|
17
|
17
36212-58J00-000 LENS2008-08-01~ |
36212-58J00-000 |
US $5.92 |
||
|
18
|
18
09471-12181-000 BULB(12V10W)2008-08-01~ |
09471-12181-000 |
from US $3.26 |
||
