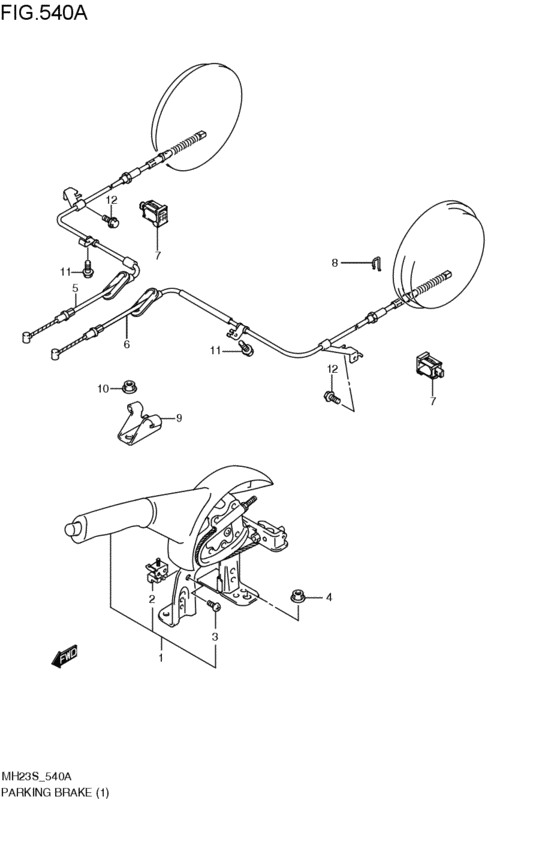

parking brakes (MT; 2008-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- 4V
- drive
- 2WD
- transmission
- MT
- grade
- FX
- abs
- NABS
- ディスチャージ
- NDISCH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-76F10-5PK
LEVER ASSY,PARKING BK
ブラツク; MT; 2008-06-01~ |
54100-76F10-5PK |
— | ||
| replacement | |||||
|
1
|
1
54100-76F11-5PK LEVER ASSY,PARK BK(BLACK)ブラツク; MT; 2008-06-01~ |
54100-76F11-5PK |
US $144.99 |
||
|
2
|
2
37940-76G00-000 SWITCH ASSY,PARKING BRAKEMT; 2008-06-01~ |
37940-76G00-000 |
from US $4.82 |
||
|
3
|
3
54115-76G00-000 SCREWMT; 2008-06-01~ |
54115-76G00-000 |
from US $1.37 |
||
|
4
|
4
08316-1008A-000 NUTNut, idle gear shaft MT; 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
5
|
5
54401-85K00-000
ケーブル,パーキングブレーキ,ライト
MT; 2008-06-01~ |
54401-85K00-000 |
— | ||
|
6
|
6
54402-85K00-000
ケーブル,パーキングブレーキ,レフト
MT; 2008-06-01~ |
54402-85K00-000 |
— | ||
|
7
|
7
54415-82K00-000 CLAMP,PARKING CABLEMT; 2008-06-01~ |
54415-82K00-000 |
US $3.02 |
||
|
8
|
8
53771-82040-000 CLIP,PARKING CABLEMT; 2008-06-01~ |
53771-82040-000 |
US $1.60 |
||
|
9
|
9
54495-76F00-000 BRACKET,PARKING CABLEMT; 2008-06-01~ |
54495-76F00-000 |
US $6.48 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft MT; 2008-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket MT; 2008-06-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket MT; 2008-06-01~ |
02162-0612A-000 |
from US $0.79 |
||
