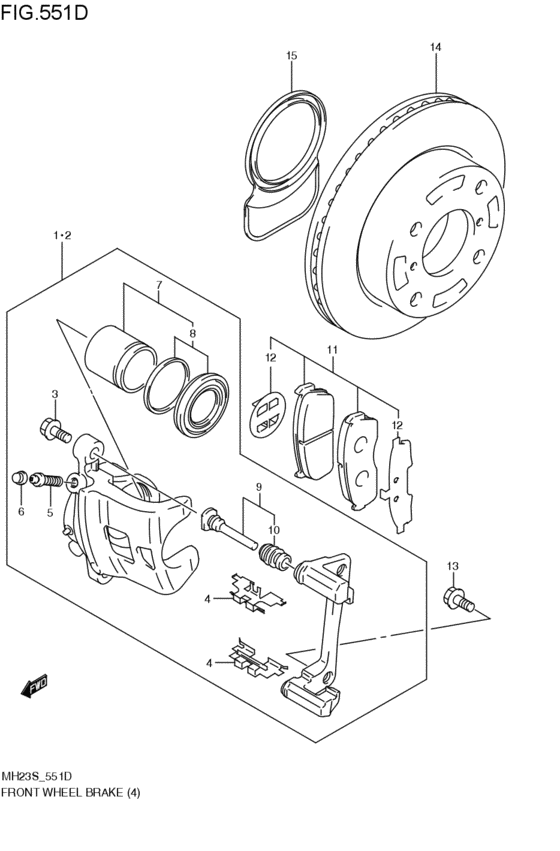

front wheel brakes (SZ,SZV; 2008-06-01~) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- TURBO
- drive
- 2WD
- transmission
- CVT
- grade
- SZ
- abs
- ABS
- ディスチャージ
- DISCH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-73H12-999
Caliper,front brake,r
SZ,SZV; 2008-06-01~ |
55101-73H12-999 |
— | ||
| replacement | |||||
|
1
|
1
55101-64L20-999 CALIPER ASSY,FR BRAKE,RSZ,SZV; 2008-06-01~ |
55101-64L20-999 |
US $307.28 |
||
|
2
|
2
55102-73H12-999
Caliper,front brake,l
SZ,SZV; 2008-06-01~ |
55102-73H12-999 |
— | ||
| replacement | |||||
|
2
|
2
55102-64L20-999 CALIPER ASSY,FR BRAKE,LSZ,SZV; 2008-06-01~ |
55102-64L20-999 |
US $307.28 |
||
|
3
|
3
55206-78452-000 BOLT,PINSZ,SZV; 2008-06-01~ |
55206-78452-000 |
from US $3.13 |
||
|
4
|
4
55234-76G10-000 SPRING,PADSZ,SZV; 2008-06-01~ |
55234-76G10-000 |
from US $4.86 |
||
|
5
|
5
55151-78451-000 PLUG,BLEEDERSZ,SZV; 2008-06-01~ |
55151-78451-000 |
from US $4.32 |
||
|
6
|
6
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug SZ,SZV; 2008-06-01~ |
55156-66310-000 |
from US $1.98 |
||
|
7
|
7
55840-76G00-000
PISTON / SEAL SET
SZ,SZV; 2008-06-01~ |
55840-76G00-000 |
— | ||
| replacement | |||||
|
7
|
7
55840-76G01-000 PISTON / SEAL SETSZ,SZV; 2008-06-01~ |
55840-76G01-000 |
from US $23.56 |
||
|
8
|
8
55830-76G00-000
SEAL SET,PISTON
SZ,SZV; 2008-06-01~ |
55830-76G00-000 |
— | ||
| replacement | |||||
|
8
|
8
55830-76G01-000 SEAL SET,PISTONSZ,SZV; 2008-06-01~ |
55830-76G01-000 |
from US $11.55 |
||
|
9
|
9
55850-76G00-000
PIN / BOOT SET
SZ,SZV; 2008-06-01~ |
55850-76G00-000 |
— | ||
| replacement | |||||
|
9
|
9
55850-76G01-000 PIN / BOOT SETSZ,SZV; 2008-06-01~ |
55850-76G01-000 |
from US $21.67 |
||
|
10
|
10
55201-60A00-000 BOOT,PINSZ,SZV; 2008-06-01~ |
55201-60A00-000 |
from US $2.56 |
||
|
11
|
11
55810-72J10-000
Pad set,disc brake
SZ,SZV; 2008-06-01~ |
55810-72J10-000 |
— | ||
| replacement | |||||
|
11
|
11
55810-81MB1-000 Pad setSZ,SZV; 2008-06-01~ |
55810-81MB1-000 |
US $104.88 |
||
|
12
|
12
55820-76G01-000 SHIM SET,ANTI NOISESZ,SZV; 2008-06-01~ |
55820-76G01-000 |
US $16.80 |
||
|
13
|
13
09117-12006-000 BOLT(12X27)SZ,SZV; 2008-06-01~ |
09117-12006-000 |
from US $1.51 |
||
|
14
|
14
55311-75F21-000 DISC,FR BRAKESZ,SZV; 2008-06-01~ |
55311-75F21-000 |
US $103.04 |
||
|
15
|
15
55321-85K00-000
カバー,フロントブレーキディスクダスト
SZ,SZV; 2008-06-01~ |
55321-85K00-000 |
— | ||
