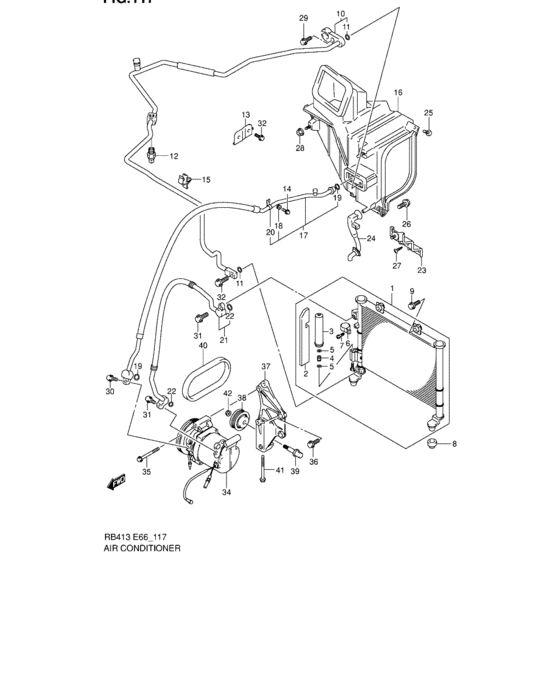

Air conditioner (AIR CONDITIONER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95000-83E10-000
Air conditioner assy
|
95000-83E10-000 |
— | ||
|
1
|
1
95310-83E00-000
Condenser assy
|
95310-83E00-000 |
— | ||
|
2
|
2
95811-83E00-000
Packing, condenser
|
95811-83E00-000 |
— | ||
|
3
|
3
95330-78F10-000
レシーバ,ドライヤ
|
95330-78F10-000 |
— | ||
| replacement | |||||
|
3
|
3
95330-78F11-000 RECEIVER DRYER |
95330-78F11-000 |
US $95.31 |
||
|
4
|
4
95331-78F10-000 JOINT |
95331-78F10-000 |
US $8.87 |
||
|
5
|
5
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
6
|
6
95351-78F10-000 CLAMP |
95351-78F10-000 |
US $8.35 |
||
|
7
|
7
01580-16123-000
Bolt
|
01580-16123-000 |
— | ||
|
8
|
8
95851-77A00-000 BUSH,COND |
95851-77A00-000 |
from US $3.02 |
||
|
9
|
9
09116-06146-000 BOLT(6X25)Bolt (6x20) |
09116-06146-000 |
from US $0.79 |
||
| replacement | |||||
|
9
|
9
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber |
09116-06150-000 |
from US $1.28 |
||
|
10
|
10
95731-83E10-000
Pipe, liquid
|
95731-83E10-000 |
— | ||
|
11
|
11
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
12
|
12
95526-50G10-000 Switch, dual pressure |
95526-50G10-000 |
US $79.56 |
||
| replacement | |||||
|
12
|
12
95526-50G30-000 SWITCH,DUAL PRESSURE |
95526-50G30-000 |
from US $44.84 |
||
|
13
|
13
95781-83E10-000
Stay, suction hose
N/ABS |
95781-83E10-000 |
— | ||
|
14
|
14
09116-06146-000 BOLT(6X25)Bolt (6x20) |
09116-06146-000 |
from US $0.79 |
||
| replacement | |||||
|
14
|
14
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber |
09116-06150-000 |
from US $1.28 |
||
|
15
|
15
09403-07323-000 CLAMP |
09403-07323-000 |
from US $3.47 |
||
|
16
|
16
95400-83E10-000
Cooling unit
|
95400-83E10-000 |
— | ||
|
17
|
17
95710-83E11-000
Hose, suction
|
95710-83E11-000 |
— | ||
|
18
|
18
95851-77A10-000 BUSH |
95851-77A10-000 |
US $2.08 |
||
|
19
|
19
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
from US $1.28 |
||
|
20
|
20
95771-78A00-000 CLAMP,PIPE |
95771-78A00-000 |
US $7.40 |
||
|
21
|
21
95720-83E00-000
Hose, discharge
|
95720-83E00-000 |
— | ||
|
22
|
22
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
from US $1.28 |
||
|
23
|
23
74291-83E00-000
Bracket, air inlet box
|
74291-83E00-000 |
— | ||
|
24
|
24
95481-83E10-000 HOSE,DRAIN |
95481-83E10-000 |
US $18.07 |
||
|
25
|
25
09136-06140-000 SCREW(6X25) |
09136-06140-000 |
US $18.80 |
||
|
26
|
26
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
27
|
27
03542-06123-000
Screw
|
03542-06123-000 |
— | ||
| replacement | |||||
|
27
|
27
03542-0612B-000 SCREW |
03542-0612B-000 |
US $2.72 |
||
|
28
|
28
08361-25063-000
Nut
|
08361-25063-000 |
— | ||
| replacement | |||||
|
28
|
28
08361-2506A-000 NUT |
08361-2506A-000 |
US $0.80 |
||
|
29
|
29
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
29
|
29
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
30
|
30
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
30
|
30
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
31
|
31
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
32
|
32
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
32
|
32
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
33
|
33
01551-08163-000
Bolt
N/ABS |
01551-08163-000 |
— | ||
| replacements | |||||
|
33
|
33
01551-0816C-000 BoltN/ABS |
01551-0816C-000 |
from US $0.96 |
||
|
33
|
33
01551-0816A-000
ボルト
N/ABS |
01551-0816A-000 |
— | ||
|
34
|
34
95200-69GA1-000 COMPRESSOR ASSY |
95200-69GA1-000 |
from US $851.49 |
||
|
35
|
35
01550-08753-000
Bolt
|
01550-08753-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0875B-000 Bolt |
01550-0875B-000 |
from US $1.40 |
||
|
35
|
35
01550-0875A-000 Bolt |
01550-0875A-000 |
from US $1.60 |
||
|
36
|
36
01550-10303-000
Bolt
|
01550-10303-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-1030B-000 BoltBolt, axle housing rear |
01550-1030B-000 |
from US $1.87 |
||
|
36
|
36
01550-1030A-000 Bolt |
01550-1030A-000 |
from US $1.12 |
||
|
37
|
37
95111-83E00-000
BRACKET,CPRSR
|
95111-83E00-000 |
— | ||
|
38
|
38
49160-70AA0-000 PULLEY ASSY,BELT TENSION |
49160-70AA0-000 |
from US $83.97 |
||
|
39
|
39
49161-60B10-000 BOLT,BELT TENSION PULLEY |
49161-60B10-000 |
from US $7.84 |
||
|
40
|
40
49181-60A00-000
BELT,POWER STEERING 4PK790
|
49181-60A00-000 |
— | ||
| replacements | |||||
|
40
|
40
49181-60A00-CDN
Belt,pwr strg 4pk790
|
49181-60A00-CDN |
— | ||
|
40
|
40
49181-60A01-000 V-BELT(4PK 790) |
49181-60A01-000 |
US $32.02 |
||
|
41
|
41
09103-08352-000 BOLT(8X75) |
09103-08352-000 |
US $19.50 |
||
|
42
|
42
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
42
|
42
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
