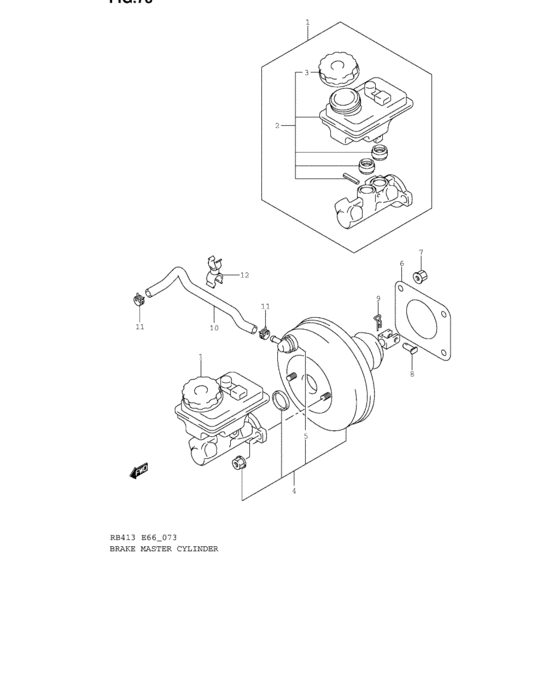

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-83E00-000
Cylinder assy, brake master
N/ABS |
51100-83E00-000 |
— | ||
|
1
|
1
51100-83E10-000 Cylinder assy, brake masterW/ABS |
51100-83E10-000 |
US $256.50 |
||
|
2
|
2
51200-83E00-000
Reservoir assy, master cyl
|
51200-83E00-000 |
— | ||
|
3
|
3
51290-83E00-000
CAP SET,RESERVOIR
|
51290-83E00-000 |
— | ||
|
4
|
4
51300-83E00-000
Booster assy, brake master
|
51300-83E00-000 |
— | ||
|
5
|
5
51370-83E00-000 CHECK VALVE SET |
51370-83E00-000 |
US $113.24 |
||
|
6
|
6
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
from US $1.60 |
||
|
7
|
7
09511-08301-000
Nut
|
09511-08301-000 |
— | ||
|
8
|
8
09200-10021-000 PIN |
09200-10021-000 |
from US $1.24 |
||
|
9
|
9
09385-10006-000 PIN,SNAPPin |
09385-10006-000 |
from US $0.97 |
||
|
10
|
10
51011-83E10-000
Hose, brake vacuum
|
51011-83E10-000 |
— | ||
|
11
|
11
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.33 |
||
|
12
|
12
09408-00080-000 CLAMP |
09408-00080-000 |
US $21.30 |
