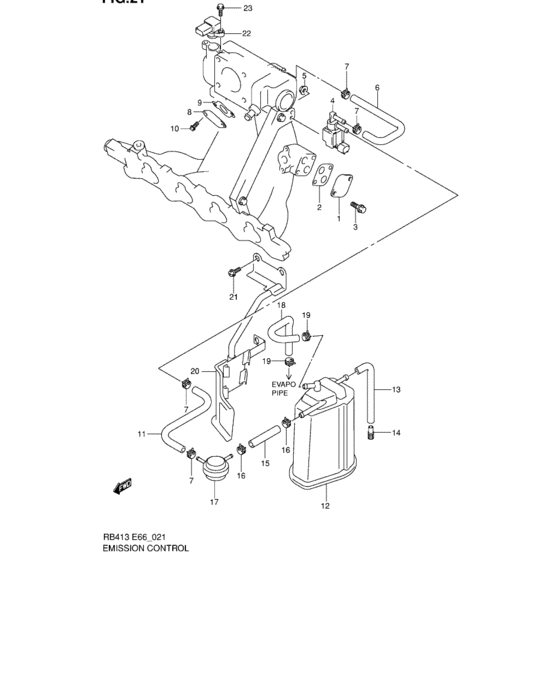

Emission control (EMISSION CONTROL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18491-77E00-000 PLATE,EGR VALVE |
18491-77E00-000 |
from US $1.64 |
||
|
2
|
2
18529-77E00-000
Gasket, egr valve
|
18529-77E00-000 |
— | ||
| replacement | |||||
|
2
|
2
18529-77E01-000 GASKET,EGR VALVE |
18529-77E01-000 |
from US $2.89 |
||
|
3
|
3
09103-08334-000 BOLT(8X16) |
09103-08334-000 |
from US $6.56 |
||
|
4
|
4
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge |
18117-52G00-000 |
from US $74.25 |
||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
18561-83E10-000
HOSE,PURGE VSV TO INTK MANF
|
18561-83E10-000 |
— | ||
|
7
|
7
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
8
|
8
18492-77E00-000 PLATE,EGR PIPE |
18492-77E00-000 |
from US $1.49 |
||
|
9
|
9
18533-77E00-000 GASKET,EGR PIPE |
18533-77E00-000 |
from US $2.28 |
||
|
10
|
10
09103-06152-000 BOLT(6X12)Bolt (6x12) |
09103-06152-000 |
from US $2.21 |
||
| replacement | |||||
|
10
|
10
01550-06127-000 BoltBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
11
|
11
18562-83E10-000
HOSE,CSTR TO VSV
|
18562-83E10-000 |
— | ||
|
12
|
12
18560-83E00-000
Canister
|
18560-83E00-000 |
— | ||
|
13
|
13
18567-83E01-000
Hose, purge air suction
|
18567-83E01-000 |
— | ||
|
14
|
14
18566-83E00-000
Filter
|
18566-83E00-000 |
— | ||
|
15
|
15
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->60 |
09355-54115-600 |
from US $7.20 |
||
|
16
|
16
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.28 |
||
|
17
|
17
18145-83E00-000 CHAMBER,PURGE VALVE |
18145-83E00-000 |
from US $7.97 |
||
|
18
|
18
18563-83E00-000
HOSE,CANISTER INLET
|
18563-83E00-000 |
— | ||
|
19
|
19
09401-11407-000
CLIP
|
09401-11407-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-11415-000 CLIP |
09401-11415-000 |
from US $1.06 |
||
|
20
|
20
18570-83E12-000
Bracket, canister
|
18570-83E12-000 |
— | ||
|
21
|
21
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
21
|
21
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
22
|
22
18590-72F21-000 SENSOR,PRESSURE |
18590-72F21-000 |
US $207.11 |
||
| replacement | |||||
|
22
|
22
18590-68H00-000 SENSOR,PRESSURESensor, pressure |
18590-68H00-000 |
from US $207.11 |
||
|
23
|
23
09106-05022-000
BOLT(5X16)
|
09106-05022-000 |
— | ||
