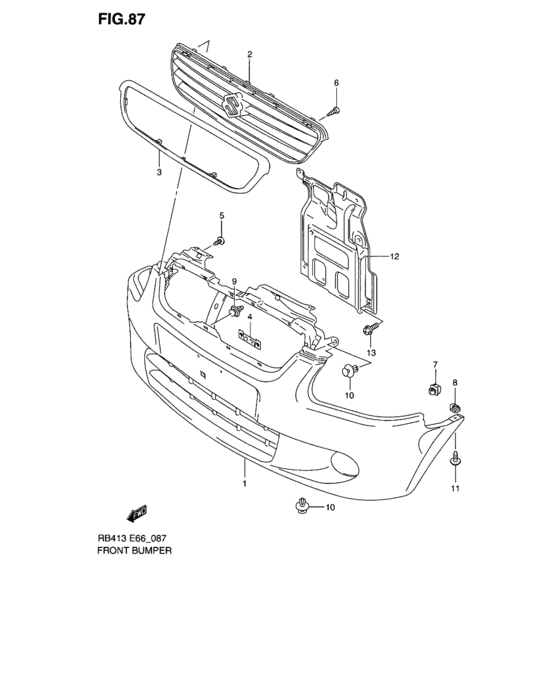

Front bumper (FRONT BUMPER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-83E20-5PK
Bumper, front
GL,N/FOG LAMP |
71711-83E20-5PK |
— | ||
|
1
|
1
71711-83E30-5PK
Bumper, front
GL,W/FOG LAMP |
71711-83E30-5PK |
— | ||
|
1
|
1
71711-83E20-799
Bumper, front
GLX,GS,N/FOG LAMP,PAINT TO MATCH |
71711-83E20-799 |
— | ||
|
1
|
1
71711-83E30-799
Bumper, front
GLX,GS,W/FOG LAMP,PAINT TO MATCH |
71711-83E30-799 |
— | ||
|
2
|
2
71741-83E10-5PK
Grille, radiator
|
71741-83E10-5PK |
— | ||
|
3
|
3
71742-83E10-0CB
Molding, radiator grille
GL |
71742-83E10-0CB |
— | ||
|
3
|
3
71742-83E10-0PG
Molding, radiator grille
GLX,GS |
71742-83E10-0PG |
— | ||
|
4
|
4
71771-60A00-000 RETAINER,FR LICENSE PLATE |
71771-60A00-000 |
from US $3.40 |
||
|
5
|
5
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
5
|
5
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
5
|
5
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.96 |
||
|
6
|
6
03511-04123-000
Screw 4x12
|
03511-04123-000 |
— | ||
| replacement | |||||
|
6
|
6
03511-0412A-000 SCREW |
03511-0412A-000 |
from US $0.76 |
||
|
7
|
7
71721-83E00-000 CLIP,FR BUMPER SIDE |
71721-83E00-000 |
US $1.60 |
||
|
8
|
8
71722-83E00-000 NUT,BUMPER SIDE |
71722-83E00-000 |
US $3.28 |
||
|
9
|
9
09409-08320-000 CLIP |
09409-08320-000 |
from US $1.15 |
||
|
10
|
10
09409-08327-000 CLIP |
09409-08327-000 |
from US $1.82 |
||
|
11
|
11
09136-05057-000
Screw, fr turnsignal (5x20)
|
09136-05057-000 |
— | ||
| replacement | |||||
|
11
|
11
09136-05068-000 SCREW(5X20) |
09136-05068-000 |
from US $0.96 |
||
|
12
|
12
72391-83E01-000
Cover, engine front
|
72391-83E01-000 |
— | ||
|
13
|
13
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
