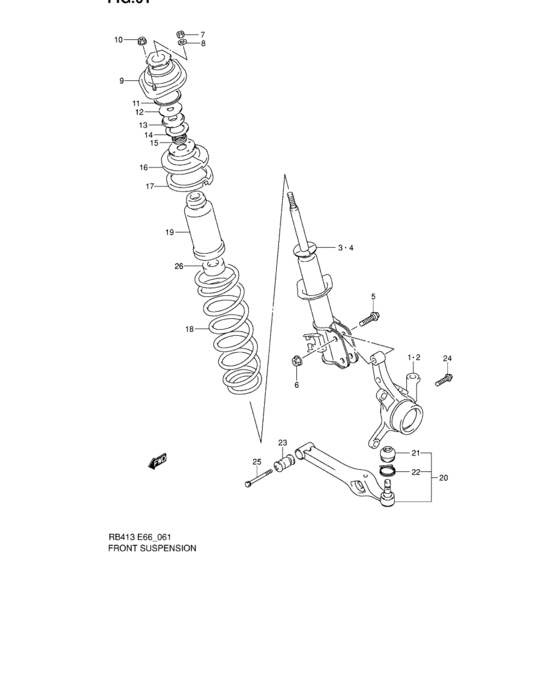

Front suspension (FRONT SUSPENSION) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-83E12-000
Knuckle, steering rh
N/ABS |
45111-83E12-000 |
— | ||
|
1
|
1
45111-83E20-000
Knuckle, steering rh
N/ABS,VIN NO.140197~ |
45111-83E20-000 |
— | ||
|
1
|
1
45111-83E52-000
Knuckle, steering rh
W/ABS |
45111-83E52-000 |
— | ||
|
1
|
1
45111-83E60-000
Knuckle, steering rh
W/ABS,VIN NO.140197~ |
45111-83E60-000 |
— | ||
|
2
|
2
45151-83E12-000
Knuckle, steering lh
N/ABS |
45151-83E12-000 |
— | ||
|
2
|
2
45151-83E20-000
Knuckle, steering lh
N/ABS,VIN NO.140197~ |
45151-83E20-000 |
— | ||
|
2
|
2
45151-83E52-000
Knuckle, steering lh
W/ABS |
45151-83E52-000 |
— | ||
|
2
|
2
45151-83E60-000
Knuckle, steering lh
W/ABS,VIN NO.140197~ |
45151-83E60-000 |
— | ||
|
3
|
3
41601-83E60-000
Strut assy, fr suspension rh
|
41601-83E60-000 |
— | ||
|
3
|
3
41601-83E51-000
Strut assy, fr suspension rh
VIN NO.128084~ |
41601-83E51-000 |
— | ||
|
4
|
4
41602-83E60-000
Strut assy, fr suspension lh
|
41602-83E60-000 |
— | ||
|
4
|
4
41602-83E51-000
Strut assy, fr suspension lh
VIN NO.128084~ |
41602-83E51-000 |
— | ||
|
5
|
5
09103-12059-000
BOLT(12X50)
|
09103-12059-000 |
— | ||
|
6
|
6
09159-12055-000 NUT |
09159-12055-000 |
from US $4.37 |
||
|
7
|
7
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
41710-80G00-000
SUPPORTFRONT STRUT
|
41710-80G00-000 |
— | ||
| replacement | |||||
|
9
|
9
41710-80G10-000 SUPPORT,FRONT STRUT |
41710-80G10-000 |
from US $67.20 |
||
|
10
|
10
09511-08301-000
Nut
|
09511-08301-000 |
— | ||
|
11
|
11
41745-60B00-000 SEAL,FRONT STRUT BEARING |
41745-60B00-000 |
from US $2 |
||
|
12
|
12
41742-60B00-000 WASHER,BEARING UPR |
41742-60B00-000 |
from US $1.92 |
||
|
13
|
13
41741-83E00-000
Bearing, front strut
|
41741-83E00-000 |
— | ||
|
14
|
14
41743-60B00-000 WASHER,BEARING LWR |
41743-60B00-000 |
from US $2.88 |
||
|
15
|
15
41744-60B00-000 SPACER,FRONT STRUT BEARING |
41744-60B00-000 |
from US $3.92 |
||
|
16
|
16
41230-83E00-000
SEAT,FRONT SPRING UPPER
|
41230-83E00-000 |
— | ||
|
17
|
17
41211-70B00-000 SEAT,FRONT COIL SPRING |
41211-70B00-000 |
from US $8.28 |
||
|
18
|
18
41111-83E00-000
Spring, front coil
AT |
41111-83E00-000 |
— | ||
|
19
|
19
42111-70B11-000 STOPPER,BUMP |
42111-70B11-000 |
US $15.77 |
||
|
19
|
19
42110-83E11-000
Stopper, front bump
VIN NO.128084~ |
42110-83E11-000 |
— | ||
|
20
|
20
45200-75F20-000
アームアッシ,フロントサスペンションコントロール
|
45200-75F20-000 |
— | ||
| replacement | |||||
|
20
|
20
45200-75F21-000 ARM ASSY,FR SPNSN CONTROL |
45200-75F21-000 |
US $280 |
||
|
20
|
20
45200-83E00-000
Arm assy, fr suspension cont
VIN NO.140197~ |
45200-83E00-000 |
— | ||
|
21
|
21
45723-70B00-000
SEAL SET,DUST
|
45723-70B00-000 |
— | ||
| replacements | |||||
|
21
|
21
45723-70B01-000
Seal Set,dust
|
45723-70B01-000 |
— | ||
|
21
|
21
45700-70810-000 Seal Set,dust |
45700-70810-000 |
from US $20.48 |
||
|
22
|
22
09401-27402-000 CLIP |
09401-27402-000 |
from US $1.04 |
||
|
23
|
23
45261-77A10-000 BUSH,FR SUSPENSION CONTROL |
45261-77A10-000 |
from US $19.15 |
||
|
24
|
24
09509-10004-000
Bolt
|
09509-10004-000 |
— | ||
|
25
|
25
09509-10005-000
Bolt
|
09509-10005-000 |
— | ||
|
26
|
26
42113-83E00-000
SPACER,FR BUMP STOPPER
~VIN NO.128083 |
42113-83E00-000 |
— | ||
