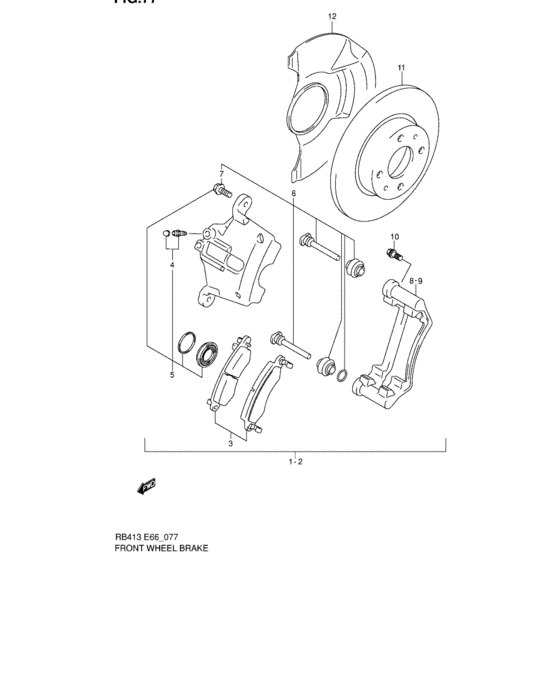

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-83E00-000
Caliper assy, fr brake rh
|
55101-83E00-000 |
— | ||
|
2
|
2
55102-83E00-000
Caliper assy, fr brake lh
|
55102-83E00-000 |
— | ||
|
3
|
3
55810-83E00-000
Pad set, disc brake
|
55810-83E00-000 |
— | ||
|
4
|
4
55473-83E00-000
Screw kit, bleed
|
55473-83E00-000 |
— | ||
|
5
|
5
55840-83E00-000
Repair kit, caliper
|
55840-83E00-000 |
— | ||
|
6
|
6
55850-83E00-000
Axle set kit
|
55850-83E00-000 |
— | ||
|
7
|
7
55206-83E00-000
Pin, screw kit
|
55206-83E00-000 |
— | ||
|
8
|
8
55861-83E00-000
Bracket, mounting rh
|
55861-83E00-000 |
— | ||
|
9
|
9
55862-83E00-000
Bracket, mounting lh
|
55862-83E00-000 |
— | ||
|
10
|
10
09509-12008-000
BOLT(12X27)
|
09509-12008-000 |
— | ||
|
11
|
11
55311-83E00-000
Disc, front brake
|
55311-83E00-000 |
— | ||
|
12
|
12
55321-60B20-000 COVER,BRAKE DISC DUST |
55321-60B20-000 |
US $24.84 |
