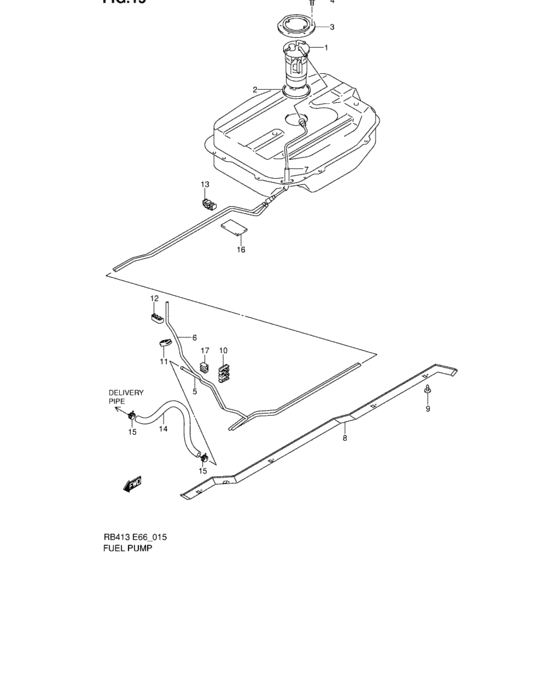

Fuel Pump (FUEL PUMP) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-83E00-000 Pump assy, fuel |
15100-83E00-000 |
US $2,031.14 |
||
|
2
|
2
15111-50G00-000
GASKET
|
15111-50G00-000 |
— | ||
| replacement | |||||
|
2
|
2
15111-50G01-000 GASKET,FUEL PUMP |
15111-50G01-000 |
US $4.82 |
||
|
3
|
3
15121-83E00-000 PLATE,FUEL PUMP |
15121-83E00-000 |
US $12.92 |
||
|
4
|
4
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
5
|
5
15811-83E00-000
Pipe, fuel feed
|
15811-83E00-000 |
— | ||
|
6
|
6
89483-83E00-000
Pipe, fuel evap
|
89483-83E00-000 |
— | ||
|
7
|
7
15812-83E00-000
Pipe, fuel
|
15812-83E00-000 |
— | ||
|
8
|
8
15871-75F00-000 COVER,FUEL PIPE |
15871-75F00-000 |
US $26.13 |
||
|
9
|
9
03541-05103-000
Screw5 x 10
|
03541-05103-000 |
— | ||
| replacements | |||||
|
9
|
9
03541-0510B-000 SCREW |
03541-0510B-000 |
from US $0.80 |
||
|
9
|
9
03541-0510A-000 SCREWScrew, rr cover |
03541-0510A-000 |
from US $0.68 |
||
|
10
|
10
15882-80EA0-000 CLAMP,FUEL PIPE |
15882-80EA0-000 |
US $2.83 |
||
|
11
|
11
15892-78E10-000 CLAMP,FUEL PIPE |
15892-78E10-000 |
from US $1.53 |
||
|
12
|
12
15893-67B00-000 CLAMP,FUEL PIPE |
15893-67B00-000 |
US $1.76 |
||
|
13
|
13
15893-75F00-000 CLAMP,FUEL PIPE |
15893-75F00-000 |
US $2.24 |
||
|
14
|
14
15815-83E10-000
HOSE,FUEL FEED
|
15815-83E10-000 |
— | ||
|
15
|
15
09401-13419-000 CLIP |
09401-13419-000 |
from US $1.76 |
||
|
16
|
16
15439-75F00-000 CUSHION,FUEL PIPE |
15439-75F00-000 |
US $5.48 |
||
|
17
|
17
09408-00192-000 CLAMP |
09408-00192-000 |
US $20.60 |
||
