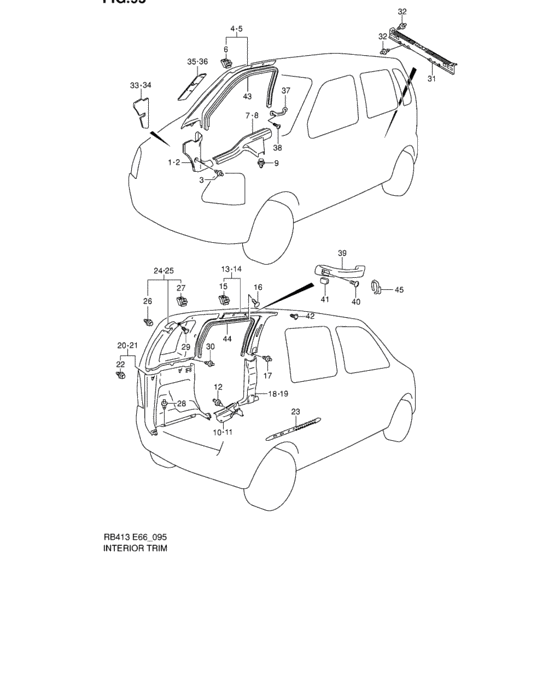

Interior trim (INTERIOR TRIM) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76121-83E00-T01
Trim, dash side rh
|
76121-83E00-T01 |
— | ||
|
2
|
2
76131-83E00-T01
Trim, dash side lh
|
76131-83E00-T01 |
— | ||
|
3
|
3
09409-07308-T01 CLIP(GRAY) |
09409-07308-T01 |
from US $0.97 |
||
|
4
|
4
76141-83E00-6GS
Trim, fr pillar inner rh
|
76141-83E00-6GS |
— | ||
|
5
|
5
76151-83E00-6GS
Trim, fr pillar inner lh
|
76151-83E00-6GS |
— | ||
|
6
|
6
76143-83E00-000
Clip
|
76143-83E00-000 |
— | ||
|
7
|
7
76161-83E00-T01
Scuff, side sill fr rh
TYPE 1 |
76161-83E00-T01 |
— | ||
|
7
|
7
76161-84E00-T01
Scuff, side sill fr rh
TYPE 2 |
76161-84E00-T01 |
— | ||
|
8
|
8
76171-83E00-T01
Scuff, side sill fr lh
TYPE 1 |
76171-83E00-T01 |
— | ||
|
8
|
8
76171-84E00-T01
Scuff, side sill fr lh
TYPE 2 |
76171-84E00-T01 |
— | ||
|
9
|
9
09409-08331-000 CLIP |
09409-08331-000 |
from US $1.28 |
||
|
10
|
10
76181-83E00-T01
Scuff, side sill rr rh
|
76181-83E00-T01 |
— | ||
|
11
|
11
76191-83E00-T01
Scuff, side sill rr lh
|
76191-83E00-T01 |
— | ||
|
12
|
12
09409-07308-T01 CLIP(GRAY) |
09409-07308-T01 |
from US $0.97 |
||
|
13
|
13
76232-83E01-6GS
Trim, ctr pillar inner upper,rh
|
76232-83E01-6GS |
— | ||
|
14
|
14
76242-83E01-6GS
Trim, ctr pillar inner upper,lh
|
76242-83E01-6GS |
— | ||
|
15
|
15
76143-83E00-000
Clip
|
76143-83E00-000 |
— | ||
|
16
|
16
09409-05307-6GS CLIP(GRAY) |
09409-05307-6GS |
from US $0.90 |
||
|
17
|
17
09409-07308-T01 CLIP(GRAY) |
09409-07308-T01 |
from US $0.97 |
||
|
18
|
18
76230-84E00-T01
Trim, ctr pillar lower rh
|
76230-84E00-T01 |
— | ||
|
19
|
19
76240-84E00-T01
Trim, ctr pillar lower lh
|
76240-84E00-T01 |
— | ||
|
20
|
20
76211-83E00-T01
Trim, qtr inner rh
|
76211-83E00-T01 |
— | ||
|
21
|
21
76221-83E00-T01
Trim, qtr inner lh
|
76221-83E00-T01 |
— | ||
|
22
|
22
76216-76F20-000 CLIP,QTR TRIM |
76216-76F20-000 |
from US $1.85 |
||
|
23
|
23
76212-83E01-000
Band, qtr inner trim rh
|
76212-83E01-000 |
— | ||
|
24
|
24
76251-83E00-6GS
Trim, qtr window rh
|
76251-83E00-6GS |
— | ||
|
25
|
25
76261-83E00-6GS
Trim, qtr window lh
|
76261-83E00-6GS |
— | ||
|
26
|
26
76216-76F20-000 CLIP,QTR TRIM |
76216-76F20-000 |
from US $1.85 |
||
|
27
|
27
76143-83E00-000
Clip
|
76143-83E00-000 |
— | ||
|
28
|
28
09409-07308-T01 CLIP(GRAY) |
09409-07308-T01 |
from US $0.97 |
||
|
29
|
29
09409-05307-6GS CLIP(GRAY) |
09409-05307-6GS |
from US $0.90 |
||
|
30
|
30
09409-07308-T01 CLIP(GRAY) |
09409-07308-T01 |
from US $0.97 |
||
|
31
|
31
76271-83E00-T01
Trim, tail end member
|
76271-83E00-T01 |
— | ||
|
32
|
32
09409-07308-T01 CLIP(GRAY) |
09409-07308-T01 |
from US $0.97 |
||
|
33
|
33
76122-83E00-000
Silencer, dash side trim rh
|
76122-83E00-000 |
— | ||
|
34
|
34
76132-83E00-000
Silencer, dash side trim lh
|
76132-83E00-000 |
— | ||
|
35
|
35
76142-83E00-000
Silencer, fr plr inner trim rh
|
76142-83E00-000 |
— | ||
|
36
|
36
76152-83E00-000
Silencer, fr plr inner trim lh
|
76152-83E00-000 |
— | ||
|
37
|
37
76163-62D00-000
ホルダ,シートベルト
|
76163-62D00-000 |
— | ||
| replacement | |||||
|
37
|
37
76163-62D01-000
HOLDER,SEAT BELT
|
76163-62D01-000 |
— | ||
|
38
|
38
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
38
|
38
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
38
|
38
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
39
|
39
76411-83E00-6GS
Grip, assistant
|
76411-83E00-6GS |
— | ||
|
40
|
40
09139-06103-000 SCREW(6X16) |
09139-06103-000 |
US $16.20 |
||
|
41
|
41
76412-83E00-6GS
Cap, assistant grip
|
76412-83E00-6GS |
— | ||
|
42
|
42
09409-05307-6GS CLIP(GRAY) |
09409-05307-6GS |
from US $0.90 |
||
|
43
|
43
76281-83E00-000
Trim, fr door opening
|
76281-83E00-000 |
— | ||
|
44
|
44
76282-83E00-000
Trim, rr door opening
|
76282-83E00-000 |
— | ||
|
45
|
45
76421-60G00-6GS HOOK,COAT HANGERTYPE 2 |
76421-60G00-6GS |
from US $2.03 |
||
