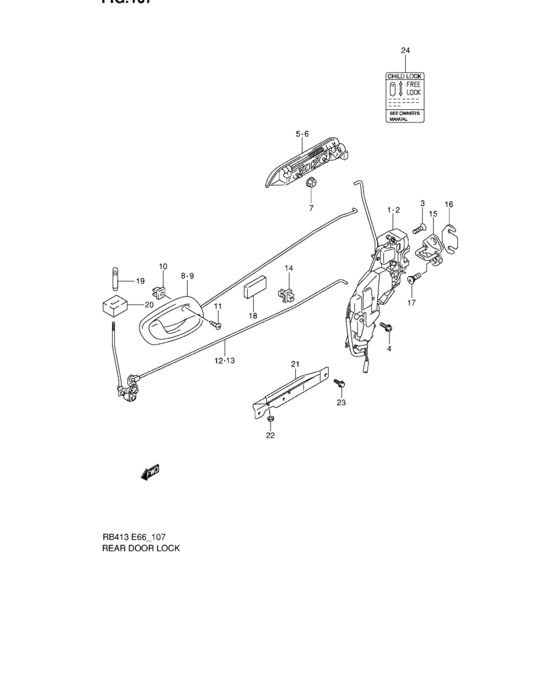

Rear door lock (REAR DOOR LOCK) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-83E00-000
Latch assy,rear door,r
N/POWER DOOR LOCK |
82301-83E00-000 |
— | ||
|
1
|
1
82301-83E10-000
Latch assy, rear door rh
W/POWER DOOR LOCK |
82301-83E10-000 |
— | ||
|
2
|
2
82302-83E00-000
Latch assy, rear door lh
N/POWER DOOR LOCK |
82302-83E00-000 |
— | ||
|
2
|
2
82302-83E10-000
Latch assy, rear door lh
W/POWER DOOR LOCK |
82302-83E10-000 |
— | ||
|
3
|
3
09137-06028-000 SCREW(6X18) |
09137-06028-000 |
from US $1.24 |
||
|
4
|
4
02162-06123-000
Bolt (6x12)
W/POWER DOOR LOCK |
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt W/POWER DOOR LOCK |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket W/POWER DOOR LOCK |
02162-0612A-000 |
from US $0.79 |
||
|
5
|
5
82810-83E00-5PK
Handle assy, dr out rh
|
82810-83E00-5PK |
— | ||
|
6
|
6
82820-83E00-5PK
Handle assy, dr out lh
|
82820-83E00-5PK |
— | ||
|
7
|
7
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
83103-83E00-T01
Handle, door inside rh
|
83103-83E00-T01 |
— | ||
|
9
|
9
83104-83E00-T01
Handle, door inside lh
|
83104-83E00-T01 |
— | ||
|
10
|
10
09148-05031-000 NUT |
09148-05031-000 |
from US $1.08 |
||
|
11
|
11
03521-05163-000
Screw
|
03521-05163-000 |
— | ||
| replacement | |||||
|
11
|
11
03521-0516A-000 SCREW |
03521-0516A-000 |
US $7.70 |
||
|
12
|
12
83270-83E00-000
Rod, inside lock rh
|
83270-83E00-000 |
— | ||
|
13
|
13
83280-83E00-000
Rod, inside lock lh
|
83280-83E00-000 |
— | ||
|
14
|
14
83271-60D00-000 CLIP |
83271-60D00-000 |
from US $1.80 |
||
|
15
|
15
82610-72B11-000
STRIKER COMPDOOR
|
82610-72B11-000 |
— | ||
| replacement | |||||
|
15
|
15
82610-72B12-000 STRIKER,DOOR LATCH |
82610-72B12-000 |
from US $12.20 |
||
|
16
|
16
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
from US $0.68 |
||
|
17
|
17
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
17
|
17
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
17
|
17
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
|
18
|
18
77591-75000-000 PAD |
77591-75000-000 |
from US $0.56 |
||
|
19
|
19
82982-83E00-T01
Knob, door inside lock
|
82982-83E00-T01 |
— | ||
|
20
|
20
83211-76G00-000 PAD SIDE DOOR INSIDE LOCK |
83211-76G00-000 |
US $1.88 |
||
|
21
|
21
82396-83E00-000 BRACE,RR DR INNERN/POWER DOOR LOCK |
82396-83E00-000 |
US $18.07 |
||
|
21
|
21
82395-83E00-000 BRACE,RR DR INNER,RW/POWER DOOR LOCK |
82395-83E00-000 |
US $18.07 |
||
|
22
|
22
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
02162-06123-000
Bolt (6x12)
N/POWER DOOR LOCK |
02162-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02162-0612B-000 SCREWBolt N/POWER DOOR LOCK |
02162-0612B-000 |
from US $0.80 |
||
|
23
|
23
02162-0612A-000 SCREWBolt, bracket N/POWER DOOR LOCK |
02162-0612A-000 |
from US $0.79 |
||
|
24
|
24
82491-83E20-000
Plate, child proof caution
|
82491-83E20-000 |
— | ||
