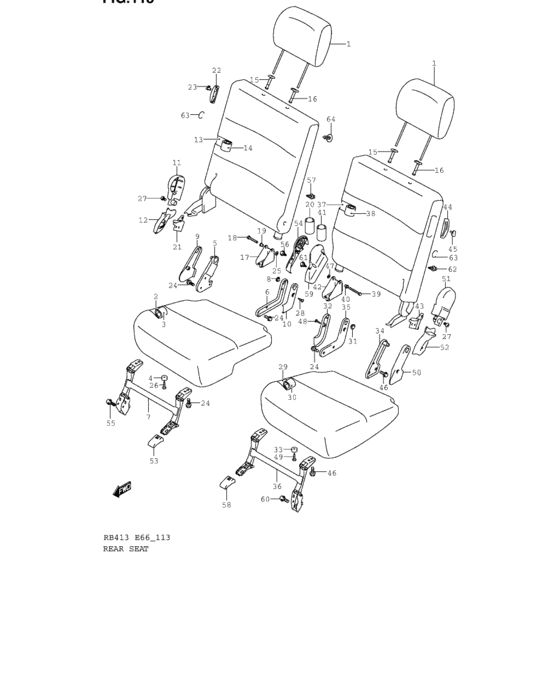

Rear seat (REAR SEAT) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-83E00-P0R
Headrestraint assy
TYPE 1:GL |
86401-83E00-P0R |
— | ||
|
1
|
1
86401-83E10-P0R
Headrestraint assy
TYPE 2:GL |
86401-83E10-P0R |
— | ||
|
1
|
1
86401-83E00-P0L
Headrestraint assy
TYPE 1:GLX,GS |
86401-83E00-P0L |
— | ||
|
1
|
1
86401-83E10-P0L
Headrestraint assy
TYPE 2:GLX,GS |
86401-83E10-P0L |
— | ||
|
1
|
1
86401-83E00-P0N
Headrestraint assy
TYPE 1:GLX,GS |
86401-83E00-P0N |
— | ||
|
1
|
1
86401-83E10-P0N
Headrestraint assy
TYPE 2:GLX,GS |
86401-83E10-P0N |
— | ||
|
2
|
2
87105-83E50-000
Cushion sub assy, rr rh
|
87105-83E50-000 |
— | ||
|
3
|
3
87180-83E50-N9G
Trim, rear cushion rh
TYPE 1:GL |
87180-83E50-N9G |
— | ||
|
3
|
3
87180-83E50-HV8
Trim, rear cushion rh
TYPE 2:GL |
87180-83E50-HV8 |
— | ||
|
3
|
3
87180-83E50-N9C
Trim, rear cushion rh
GLX,GS |
87180-83E50-N9C |
— | ||
|
3
|
3
87180-83E50-N9E
Trim, rear cushion rh
GLX,GS |
87180-83E50-N9E |
— | ||
|
4
|
4
87122-83E00-000
Cushion, rear frame
|
87122-83E00-000 |
— | ||
|
5
|
5
87116-83E00-000
Stay, cushion outside rh
|
87116-83E00-000 |
— | ||
|
6
|
6
87117-83E00-000
Stay, cushion inside rh
|
87117-83E00-000 |
— | ||
|
7
|
7
87150-83E00-000
Leg assy, rear cushion rh
|
87150-83E00-000 |
— | ||
|
8
|
8
87121-83E00-000
Bush, stay
|
87121-83E00-000 |
— | ||
|
9
|
9
87171-83E00-T01
Cover, stay outside rh
|
87171-83E00-T01 |
— | ||
|
10
|
10
87172-83E00-T01
Cover, stay inside rh
|
87172-83E00-T01 |
— | ||
|
11
|
11
87221-83E00-T01
Cover, upper outside rh
|
87221-83E00-T01 |
— | ||
|
12
|
12
87223-83E00-T01
Cover, lower outside rh
|
87223-83E00-T01 |
— | ||
|
13
|
13
87305-83E60-000
Back sub assy, rr rh
N/HEADRESTRAINT |
87305-83E60-000 |
— | ||
|
13
|
13
87305-83E50-000
Back sub assy, rr rh
W/HEADRESTRAINT |
87305-83E50-000 |
— | ||
|
14
|
14
87380-83E60-N9G
Trim, rear back rh
TYPE 1:GL,N/HEADRESTRAINT |
87380-83E60-N9G |
— | ||
|
14
|
14
87380-83E60-HV8
Trim, rear back rh
TYPE 2:GL,N/HEADRESTRAINT |
87380-83E60-HV8 |
— | ||
|
14
|
14
87380-83E50-N9G
Trim, rear back rh
TYPE 1:GL,W/HEADRESTRAINT |
87380-83E50-N9G |
— | ||
|
14
|
14
87380-83E50-HV8
Trim, rear back rh
TYPE 2:GL,W/HEADRESTRAINT |
87380-83E50-HV8 |
— | ||
|
14
|
14
87380-83E60-N9C
Trim, rear back rh
GLX,GS,N/HEADRESTRAINT |
87380-83E60-N9C |
— | ||
|
14
|
14
87380-83E50-N9C
Trim, rear back rh
GLX,GS,W/HEADRESTRAINT |
87380-83E50-N9C |
— | ||
|
14
|
14
87380-83E60-N9E
Trim, rear back rh
GLX,GS,N/HEADRESTRAINT |
87380-83E60-N9E |
— | ||
|
14
|
14
87380-83E50-N9E
Trim, rear back rh
GLX,GS,W/HEADRESTRAINT |
87380-83E50-N9E |
— | ||
|
15
|
15
85341-83E00-T01
Guide, headrestraint
|
85341-83E00-T01 |
— | ||
|
16
|
16
85840-83E00-T01
Guide, headrestraint
|
85840-83E00-T01 |
— | ||
|
17
|
17
87231-83E00-000
Bracket, rr hinge lower
|
87231-83E00-000 |
— | ||
|
18
|
18
87331-83E00-000
Pin, rear hinge
|
87331-83E00-000 |
— | ||
|
19
|
19
87332-83E00-000
Bush, rear hinge
|
87332-83E00-000 |
— | ||
|
20
|
20
87333-83E00-000
Tube, rear hinge
|
87333-83E00-000 |
— | ||
|
21
|
21
87222-83E00-T01
Cover, upper inside rh
|
87222-83E00-T01 |
— | ||
|
22
|
22
87841-83E00-T01
Base, reclining lever
|
87841-83E00-T01 |
— | ||
|
23
|
23
87842-83E00-T01
Lever, rr reclining
|
87842-83E00-T01 |
— | ||
|
24
|
24
09501-08016-000
Bolt, bracket
|
09501-08016-000 |
— | ||
|
25
|
25
09148-08002-000 NUT |
09148-08002-000 |
US $11 |
||
|
26
|
26
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
26
|
26
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
26
|
26
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
27
|
27
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
27
|
27
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
27
|
27
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
28
|
28
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
28
|
28
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
28
|
28
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
29
|
29
87106-83E50-000
Cushion sub assy, rr lh
|
87106-83E50-000 |
— | ||
|
30
|
30
87680-83E50-N9G
Trim, rear cushion lh
TYPE 1:GL |
87680-83E50-N9G |
— | ||
|
30
|
30
87680-83E50-HV8
Trim, rear cushion lh
TYPE 2:GL |
87680-83E50-HV8 |
— | ||
|
30
|
30
87680-83E50-N9C
Trim, rear cushion lh
GLX,GS |
87680-83E50-N9C |
— | ||
|
30
|
30
87680-83E50-N9E
Trim, rear cushion lh
GLX,GS |
87680-83E50-N9E |
— | ||
|
31
|
31
87121-83E00-000
Bush, stay
|
87121-83E00-000 |
— | ||
|
32
|
32
87672-83E00-T01
Cover, stay inside lh
|
87672-83E00-T01 |
— | ||
|
33
|
33
87122-83E00-000
Cushion, rear frame
|
87122-83E00-000 |
— | ||
|
34
|
34
87616-83E00-000
Stay, cushion outside lh
|
87616-83E00-000 |
— | ||
|
35
|
35
87617-83E00-000
Stay, cushion inside lh
|
87617-83E00-000 |
— | ||
|
36
|
36
87650-83E00-000
Leg assy, rr cushion lh
|
87650-83E00-000 |
— | ||
|
37
|
37
87306-83E60-000
Back sub assy, rr lh
N/HEADRESTRAINT |
87306-83E60-000 |
— | ||
|
37
|
37
87306-83E50-000
Back sub assy, rr lh
W/HEADRESTRAINT |
87306-83E50-000 |
— | ||
|
38
|
38
87880-83E60-N9G
Trim, rear back lh
TYPE 1:GL,N/HEADRESTRAINT |
87880-83E60-N9G |
— | ||
|
38
|
38
87880-83E60-HV8
Trim, rear back lh
TYPE 2:GL,N/HEADRESTRAINT |
87880-83E60-HV8 |
— | ||
|
38
|
38
87880-83E50-N9G
Trim, rear back lh
TYPE 1:GL,W/HEADRESTRAINT |
87880-83E50-N9G |
— | ||
|
38
|
38
87880-83E50-HV8
Trim, rear back lh
TYPE 2:GL,W/HEADRESTRAINT |
87880-83E50-HV8 |
— | ||
|
38
|
38
87880-83E60-N9C
Trim, rear back lh
GLX,GS,N/HEADRESTRAINT |
87880-83E60-N9C |
— | ||
|
38
|
38
87880-83E50-N9C
Trim, rear back lh
GLX,GS,W/HEADRESTRAINT |
87880-83E50-N9C |
— | ||
|
38
|
38
87880-83E60-N9E
Trim, rear back lh
GLX,GS,N/HEADRESTRAINT |
87880-83E60-N9E |
— | ||
|
38
|
38
87880-83E50-N9E
Trim, rear back lh
GLX,GS,W/HEADRESTRAINT |
87880-83E50-N9E |
— | ||
|
39
|
39
87331-83E00-000
Pin, rear hinge
|
87331-83E00-000 |
— | ||
|
40
|
40
87332-83E00-000
Bush, rear hinge
|
87332-83E00-000 |
— | ||
|
41
|
41
87333-83E00-000
Tube, rear hinge
|
87333-83E00-000 |
— | ||
|
42
|
42
87231-83E00-000
Bracket, rr hinge lower
|
87231-83E00-000 |
— | ||
|
43
|
43
87722-83E00-T01
Cover, upper inside lh
|
87722-83E00-T01 |
— | ||
|
44
|
44
87841-83E00-T01
Base, reclining lever
|
87841-83E00-T01 |
— | ||
|
45
|
45
87842-83E00-T01
Lever, rr reclining
|
87842-83E00-T01 |
— | ||
|
46
|
46
09501-08016-000
Bolt, bracket
|
09501-08016-000 |
— | ||
|
47
|
47
09148-08002-000 NUT |
09148-08002-000 |
US $11 |
||
|
48
|
48
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
48
|
48
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
48
|
48
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
49
|
49
03242-05103-000
Screw
|
03242-05103-000 |
— | ||
| replacements | |||||
|
49
|
49
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
|
49
|
49
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
50
|
50
87671-83E00-T01
Cover, stay outside lh
|
87671-83E00-T01 |
— | ||
|
51
|
51
87721-83E00-T01
Cover, upper outside lh
|
87721-83E00-T01 |
— | ||
|
52
|
52
87723-83E00-T01
Cover, lower outside lh
|
87723-83E00-T01 |
— | ||
|
53
|
53
87491-76F00-T01 COVER,FR INSIDE |
87491-76F00-T01 |
US $6.11 |
||
|
54
|
54
87224-83E00-T01
Cover, reclining inside rh
|
87224-83E00-T01 |
— | ||
|
55
|
55
87421-83E00-000
Bolt, control arm
|
87421-83E00-000 |
— | ||
|
56
|
56
09409-06322-T01 CLIP(GRAY) |
09409-06322-T01 |
from US $1.58 |
||
|
57
|
57
09409-10302-T01 CLIP(GRAY) |
09409-10302-T01 |
from US $0.81 |
||
|
58
|
58
87491-76F00-T01 COVER,FR INSIDE |
87491-76F00-T01 |
US $6.11 |
||
|
59
|
59
87724-83E00-T01
Cover, reclining inside rh
|
87724-83E00-T01 |
— | ||
|
60
|
60
87421-83E00-000
Bolt, control arm
|
87421-83E00-000 |
— | ||
|
61
|
61
09409-06322-T01 CLIP(GRAY) |
09409-06322-T01 |
from US $1.58 |
||
|
62
|
62
09409-10302-T01 CLIP(GRAY) |
09409-10302-T01 |
from US $0.81 |
||
|
63
|
63
09387-19001-000 RING |
09387-19001-000 |
from US $0.77 |
||
|
64
|
64
09409-05317-000
Clip
|
09409-05317-000 |
— | ||
