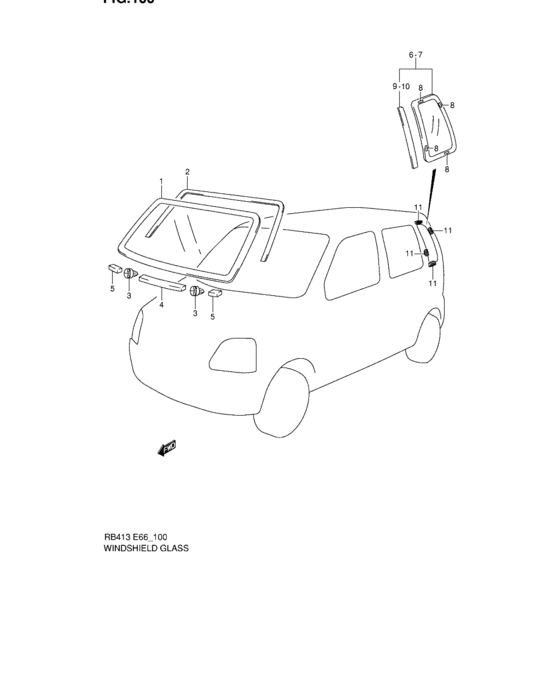

Windshield glass (WINDSHIELD GLASS) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Europe
- transmission
- AT
- grade
- GLS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84511-83E00-000
Glass, windshield
GL,GLX,GS |
84511-83E00-000 |
— | ||
|
1
|
1
84511-83E10-000
Glass, windshield
GLX,GS |
84511-83E10-000 |
— | ||
|
2
|
2
84611-83E00-000
Molding, windshield
|
84611-83E00-000 |
— | ||
|
3
|
3
84618-76G10-000 STOPPER,WINDSHIELD GLASS |
84618-76G10-000 |
from US $1.76 |
||
|
4
|
4
84617-60D00-000 SPACER,WINDSHIELD GLASS |
84617-60D00-000 |
from US $3.29 |
||
|
5
|
5
84617-76F00-000 SPACER,WINDSHIELD GLASS |
84617-76F00-000 |
from US $3.22 |
||
|
6
|
6
84580-83E00-000
Glass, qtr window rh
GL,GLX,GS |
84580-83E00-000 |
— | ||
|
6
|
6
84580-83E10-000
Glass, qtr window rh
GLX,GS |
84580-83E10-000 |
— | ||
|
7
|
7
84590-83E00-000
Glass, qtr window lh
GL,GLX,GS |
84590-83E00-000 |
— | ||
|
7
|
7
84590-83E10-000
Glass, qtr window lh
GLX,GS |
84590-83E10-000 |
— | ||
|
8
|
8
84513-76F00-000 MALE,GLASS FASTENER NO.2 |
84513-76F00-000 |
from US $1.60 |
||
|
9
|
9
84582-83E00-000
Garnish, qtr window rh
|
84582-83E00-000 |
— | ||
|
10
|
10
84592-83E00-000
Garnish, qtr window lh
|
84592-83E00-000 |
— | ||
|
11
|
11
84514-65D00-000 FEMALE,GLASS FASTENER NO.1 |
84514-65D00-000 |
from US $2.30 |
