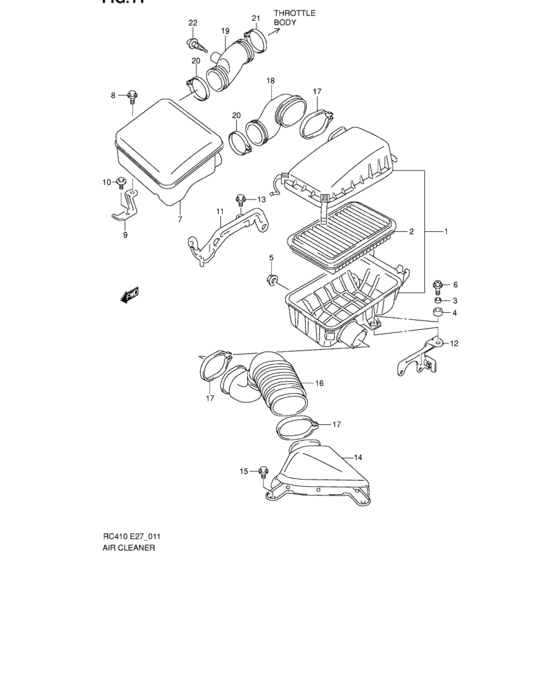

Air cleaner (AIR CLEANER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-77G00-000 CLEANER ASSY,AIR |
13700-77G00-000 |
US $170.02 |
||
|
2
|
2
13780-75F00-000 ELEMENT,AIR CLEANER |
13780-75F00-000 |
from US $25.09 |
||
|
3
|
3
13772-75F00-000 SPACER |
13772-75F00-000 |
US $4.75 |
||
|
4
|
4
09320-11017-000 CUSHION |
09320-11017-000 |
from US $10.24 |
||
|
5
|
5
13723-75F00-000 GROMMET,AIR CLEANER |
13723-75F00-000 |
US $1.62 |
||
|
6
|
6
09136-06141-000 SCREW(6X25) |
09136-06141-000 |
from US $1.12 |
||
|
7
|
7
13760-75F00-000 RESONATOR,AIR INTK |
13760-75F00-000 |
US $78.75 |
||
|
8
|
8
09116-06167-000 BOLT(6X20)Bolt (6x20) |
09116-06167-000 |
from US $1.37 |
||
|
9
|
9
13765-75F01-000
ブラケット,レゾネータ
|
13765-75F01-000 |
— | ||
| replacement | |||||
|
9
|
9
13765-75F0V-000 BRACKET,RESONATOR |
13765-75F0V-000 |
US $3.97 |
||
|
10
|
10
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
13810-78F00-000
BRACKET,AIR CLNR,NO.1
|
13810-78F00-000 |
— | ||
|
12
|
12
13820-78F00-000
Bracket comp,air clnr,no.2
|
13820-78F00-000 |
— | ||
|
13
|
13
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
13
|
13
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
14
|
14
13870-78F00-000
PIPE,AIR CLNR INLET
|
13870-78F00-000 |
— | ||
|
15
|
15
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
16
|
16
13871-78F00-000 HOSE,AIR CLNR INLET |
13871-78F00-000 |
US $18.03 |
||
|
17
|
17
13875-75F00-000 CLAMP,AIR CLEANER HOSEClamp (clnr) |
13875-75F00-000 |
from US $2.77 |
||
|
18
|
18
13881-75F00-000 HOSE,AIR CLNR OUTLET NO.1 |
13881-75F00-000 |
US $48.80 |
||
|
19
|
19
13882-78F00-000
Hose,air clnr outlet,no.2
|
13882-78F00-000 |
— | ||
|
20
|
20
09402-50901-000 CLAMP |
09402-50901-000 |
US $36.40 |
||
|
21
|
21
09402-52208-000 CLAMP |
09402-52208-000 |
from US $2.08 |
||
|
22
|
22
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp |
13650-52G00-000 |
from US $50.92 |
||
