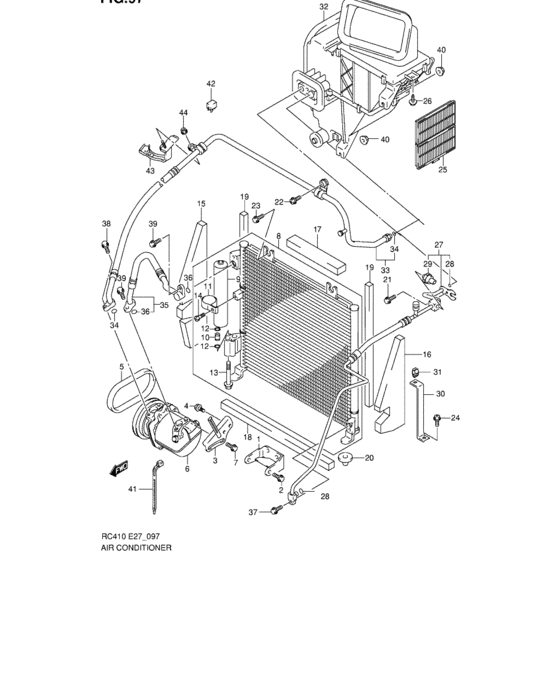

Air conditioner (AIR CONDITIONER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95110-73G01-000 BRACKET,COMPRESSOR |
95110-73G01-000 |
US $13.06 |
||
|
2
|
2
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
2
|
2
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
3
|
3
95121-75F00-000 STAY,COMPRESSOR |
95121-75F00-000 |
US $10.49 |
||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
5
|
5
95141-60D03-000 V-BELT,762 |
95141-60D03-000 |
from US $17.60 |
||
|
6
|
6
95200-70C62-000 COMPRESSOR ASSY |
95200-70C62-000 |
US $1,165.12 |
||
|
7
|
7
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
7
|
7
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
8
|
8
95311-78F20-000 CONDENSERTYPE 1,TYPE 2 |
95311-78F20-000 |
US $471.68 |
||
|
8
|
8
95311-78F30-000 CONDENSERTYPE 3 |
95311-78F30-000 |
US $471.68 |
||
|
9
|
9
95330-78F10-000
レシーバ,ドライヤ
|
95330-78F10-000 |
— | ||
| replacement | |||||
|
9
|
9
95330-78F11-000 RECEIVER DRYER |
95330-78F11-000 |
US $95.31 |
||
|
10
|
10
95331-78F10-000 JOINT |
95331-78F10-000 |
US $8.87 |
||
|
11
|
11
95351-78F10-000 CLAMP |
95351-78F10-000 |
US $8.35 |
||
|
12
|
12
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
13
|
13
01500-06503-000
New Genuine Part
|
01500-06503-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0650A-000 Bolt |
01500-0650A-000 |
US $0.80 |
||
|
14
|
14
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
14
|
14
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
15
|
15
95811-78F01-000 PACKING,CONDENSER |
95811-78F01-000 |
US $14.98 |
||
|
16
|
16
95812-78F01-000 PACKING,CONDENSER |
95812-78F01-000 |
US $11.74 |
||
|
17
|
17
95813-78F01-000 PACKING,CONDENSER |
95813-78F01-000 |
US $4.71 |
||
|
18
|
18
95814-78F00-000 PACKING,CONDENSER |
95814-78F00-000 |
US $4.97 |
||
|
19
|
19
95815-78F00-000 PACKING,CONDENSER |
95815-78F00-000 |
US $4.97 |
||
|
20
|
20
95851-77A00-000 BUSH,COND |
95851-77A00-000 |
from US $3.02 |
||
|
21
|
21
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
22
|
22
09116-06129-000 BOLT(6X30) |
09116-06129-000 |
US $1.44 |
||
|
23
|
23
09116-06146-000 BOLT(6X25)Bolt (6x20) |
09116-06146-000 |
from US $0.79 |
||
| replacement | |||||
|
23
|
23
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber |
09116-06150-000 |
from US $1.28 |
||
|
24
|
24
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
25
|
25
95860-78F00-000 FILTERTYPE 1 |
95860-78F00-000 |
from US $37.60 |
||
|
25
|
25
95860-78F10-000 FILTERTYPE 2,TYPE 3 |
95860-78F10-000 |
from US $40 |
||
|
26
|
26
09136-06140-000 SCREW(6X25) |
09136-06140-000 |
US $18.80 |
||
|
27
|
27
95731-78F10-000 HOSE,LIQUID |
95731-78F10-000 |
US $235.52 |
||
|
28
|
28
95891-50G00-000 O-RING,D:1.8 ID:6.7 |
95891-50G00-000 |
from US $1.12 |
||
|
29
|
29
95526-78F00-000 SWITCH,TRIPLE PRESSURE |
95526-78F00-000 |
from US $55.87 |
||
|
30
|
30
95781-78F00-000 STAY,LIQUID HOSE |
95781-78F00-000 |
US $7.62 |
||
|
31
|
31
09403-08321-000 CLAMP |
09403-08321-000 |
from US $0.43 |
||
|
32
|
32
95400-78F10-000 COOLING UNIT |
95400-78F10-000 |
US $647.68 |
||
|
33
|
33
95710-78F02-000 HOSE,SUCTION |
95710-78F02-000 |
US $146.46 |
||
|
34
|
34
95896-50G00-000 O-RING,D:2.4 ID:13.4O ring (d:2.5,id:13.4) |
95896-50G00-000 |
from US $1.28 |
||
|
35
|
35
95720-78F00-000 HOSE,DISCHARGE |
95720-78F00-000 |
US $108.56 |
||
|
36
|
36
95895-50G00-000 O-RING,D:2.4 ID:10.8 |
95895-50G00-000 |
from US $1.28 |
||
|
37
|
37
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
37
|
37
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
38
|
38
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
38
|
38
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
39
|
39
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
39
|
39
01550-0620B-000 BoltBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
40
|
40
09159-06081-000 NUT |
09159-06081-000 |
from US $1.31 |
||
|
41
|
41
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $1.08 |
||
|
42
|
42
38860-76F01-000 RELAY ASSYRelay, starting motor |
38860-76F01-000 |
from US $26.53 |
||
|
43
|
43
95782-78F00-000 BRACKET,SUCTION HOSE |
95782-78F00-000 |
US $13.21 |
||
|
44
|
44
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
44
|
44
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.80 |
||
