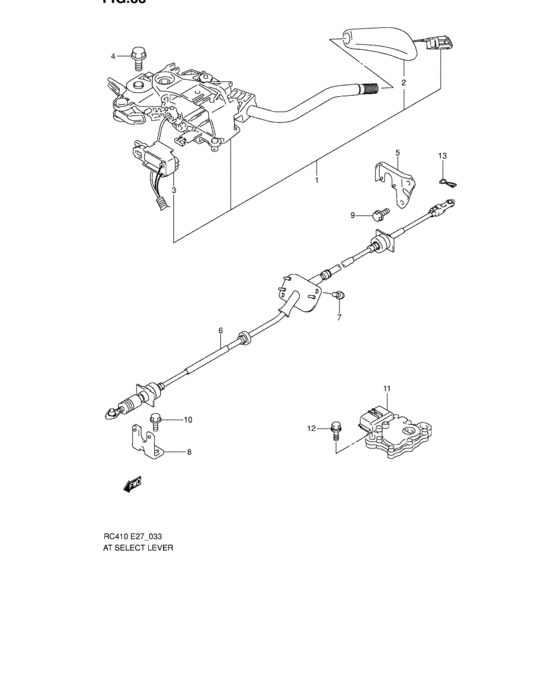

At select lever (AT SELECT LEVER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-76FV3-000
Selector assy, column
TYPE 1 |
28100-76FV3-000 |
— | ||
| replacement | |||||
|
1
|
1
28100-76FVB-000 SELECTOR ASSY,COLUMNTYPE 1 |
28100-76FVB-000 |
US $274.16 |
||
|
1
|
1
28100-82H11-000
セレクトアッシ,コラム
TYPE 2,TYPE 3 |
28100-82H11-000 |
— | ||
| replacement | |||||
|
1
|
1
28100-82H12-000
SELECTOR ASSY,COLUMN
TYPE 2,TYPE 3 |
28100-82H12-000 |
— | ||
|
2
|
2
28160-76FK0-000
KNOB ASSY,SEL LEVER
|
28160-76FK0-000 |
— | ||
| replacement | |||||
|
2
|
2
28160-76FK1-000 KNOB ASSY,SEL LEVER |
28160-76FK1-000 |
US $23.18 |
||
|
3
|
3
28610-76FJ0-000 SOLENOID,SHIFT LOCKTYPE 1 |
28610-76FJ0-000 |
US $76.91 |
||
|
3
|
3
28610-82H10-000
SOLENOID,SHIFT LOCK
TYPE 2,TYPE 3 |
28610-82H10-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
5
|
5
28222-78FJ0-000 BRACKET,SEL CABLE COLUMN |
28222-78FJ0-000 |
US $8.72 |
||
|
6
|
6
28210-78FM0-000 CABLE ASSY,COLUMN |
28210-78FM0-000 |
US $100.10 |
||
|
6
|
6
28210-82H10-000
CABLE ASSY,COLUMN
MA64S-122200~ |
28210-82H10-000 |
— | ||
|
7
|
7
02162-06203-000
Bolt
|
02162-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0620C-000 SCREW |
02162-0620C-000 |
from US $0.83 |
||
|
8
|
8
28221-61D11-000 BRACKET,SELECT CABLE |
28221-61D11-000 |
US $6.59 |
||
|
9
|
9
28223-61D00-000 BoltBolt, selector cable bracket |
28223-61D00-000 |
US $3.97 |
||
|
10
|
10
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
10
|
10
01550-0820A-000 BoltBolt, funnel bracket |
01550-0820A-000 |
from US $1.12 |
||
|
11
|
11
37720-76G31-000 SWITCH ASSY,SHIFT |
37720-76G31-000 |
from US $134.46 |
||
|
12
|
12
25948-76G10-000
Bolt, shift switch
|
25948-76G10-000 |
— | ||
| replacement | |||||
|
12
|
12
25948-76G11-000 BOLT,SHIFT SWITCH |
25948-76G11-000 |
from US $1.98 |
||
|
13
|
13
09385-08007-000 PIN,SNAPClip |
09385-08007-000 |
from US $1.09 |
||
