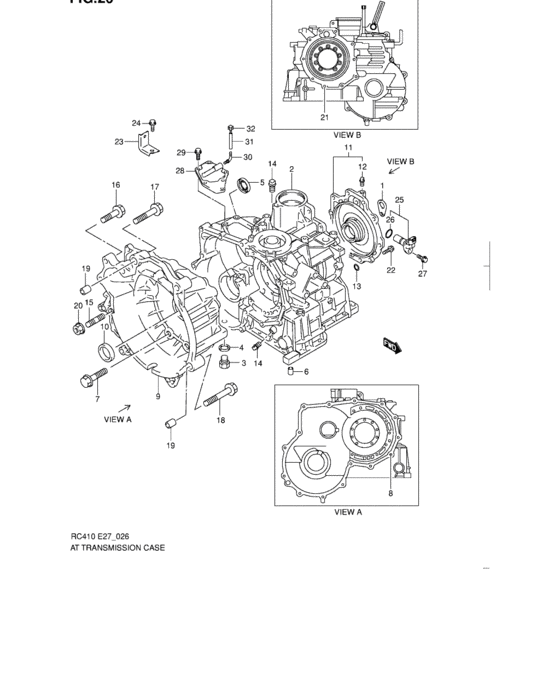

At transmission case (AT TRANSMISSION CASE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11851-72B21-000 HOOK,ENGINE |
11851-72B21-000 |
from US $1.78 |
||
|
2
|
2
24710-78G30-000
CASE ASSY,T/M
|
24710-78G30-000 |
— | ||
|
3
|
3
09247-14027-000 PLUG(14X11.5)Plug, oil drain |
09247-14027-000 |
from US $1.89 |
||
| replacement | |||||
|
3
|
3
09247-14044-000 DRAIN PLUG (M14x1.5) |
09247-14044-000 |
from US $1.67 |
||
|
4
|
4
24824-71B71-000 GASKET,18X24X2 |
24824-71B71-000 |
from US $1.10 |
||
|
5
|
5
27431-73H30-000 SEAL,OIL |
27431-73H30-000 |
from US $14.58 |
||
|
6
|
6
09202-06035-000 PIN |
09202-06035-000 |
US $37.20 |
||
|
7
|
7
24739-78G10-000 BOLT,T/M CASE |
24739-78G10-000 |
US $3.28 |
||
|
8
|
8
24739-78G30-000
BOLT,T/M CASE
|
24739-78G30-000 |
— | ||
| replacement | |||||
|
8
|
8
24739-78G31-000 Bolt,t/m Case |
24739-78G31-000 |
US $2.94 |
||
|
9
|
9
24720-78G30-000
ハウジングアッシ,トルクコンバータ
|
24720-78G30-000 |
— | ||
| replacement | |||||
|
9
|
9
24720-78G51-000 HOUSING ASSY,T/C |
24720-78G51-000 |
US $665.28 |
||
|
10
|
10
29282-73H10-000 SEAL,INPUT SHAFT OIL |
29282-73H10-000 |
from US $12.40 |
||
|
11
|
11
24730-78GM1-000
カバーアッシ,トランスミッション,リヤ
|
24730-78GM1-000 |
— | ||
| replacement | |||||
|
11
|
11
24730-78GP0-000 COVER ASSY,T/M RR |
24730-78GP0-000 |
US $290.72 |
||
|
12
|
12
24822-58E00-000
PLUG,BOOSTER
|
24822-58E00-000 |
— | ||
| replacement | |||||
|
12
|
12
24822-58E01-000 Plug,booster |
24822-58E01-000 |
US $5 |
||
|
13
|
13
24736-78G10-000 O-RING,REAR COVER |
24736-78G10-000 |
US $3.28 |
||
|
14
|
14
24822-58E00-000
PLUG,BOOSTER
|
24822-58E00-000 |
— | ||
| replacement | |||||
|
14
|
14
24822-58E01-000 Plug,booster |
24822-58E01-000 |
US $5 |
||
|
15
|
15
01421-10353-000
Stud 10x1.25x55
|
01421-10353-000 |
— | ||
| replacements | |||||
|
15
|
15
01421-1035A-000 BOLT,STUD |
01421-1035A-000 |
from US $4.13 |
||
|
15
|
15
01421-1035B-000 BOLT,STUD |
01421-1035B-000 |
US $17.30 |
||
|
16
|
16
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
17
|
17
01550-10553-000
Bolt
|
01550-10553-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.60 |
||
|
18
|
18
01550-10603-000
Bolt
|
01550-10603-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
18
|
18
01550-1060A-000 Bolt |
01550-1060A-000 |
from US $1.60 |
||
|
19
|
19
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
20
|
20
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
21
|
21
24739-78G70-000
BOLT,RR COVER
|
24739-78G70-000 |
— | ||
|
22
|
22
24739-78G90-000
ボルト,リヤカバー
|
24739-78G90-000 |
— | ||
| replacements | |||||
|
22
|
22
24739-78GH0-000
BOLT,RR COVER
|
24739-78GH0-000 |
— | ||
|
22
|
22
24739-78GH1-000 Bolt,rr Cover |
24739-78GH1-000 |
US $2.72 |
||
|
23
|
23
24895-78FH0-000
BRACKET,HARN
|
24895-78FH0-000 |
— | ||
|
24
|
24
24896-78G10-000 Bolt |
24896-78G10-000 |
US $3.28 |
||
|
25
|
25
26141-78GH0-000 SENSOR,TURBINE SPEED |
26141-78GH0-000 |
US $145.73 |
||
|
26
|
26
26142-78GH0-000 O-RING,TURBIN SPEED SENSOR |
26142-78GH0-000 |
US $3.75 |
||
|
27
|
27
24362-78G50-000 Bolt |
24362-78G50-000 |
US $10.24 |
||
|
28
|
28
24799-78G10-000 COVER,BREATHER |
24799-78G10-000 |
US $39.38 |
||
|
29
|
29
24362-78G50-000 Bolt |
24362-78G50-000 |
US $10.24 |
||
|
30
|
30
24713-78G10-000 PLUG,BREATHER |
24713-78G10-000 |
US $7.95 |
||
|
31
|
31
09352-50823-600
HOSE(5X8.2X600)
L:600->50 |
09352-50823-600 |
— | ||
| replacements | |||||
|
31
|
31
44420-44AR0-000 HOSE SET,FUELL:600->50 |
44420-44AR0-000 |
US $11.95 |
||
|
31
|
31
09352-50005-600 Hose(5X8.2X600)L:600->50 |
09352-50005-600 |
from US $4.10 |
||
|
32
|
32
27991-78G10-000 PLUG,BREATHER HOSE |
27991-78G10-000 |
from US $1.15 |
||
