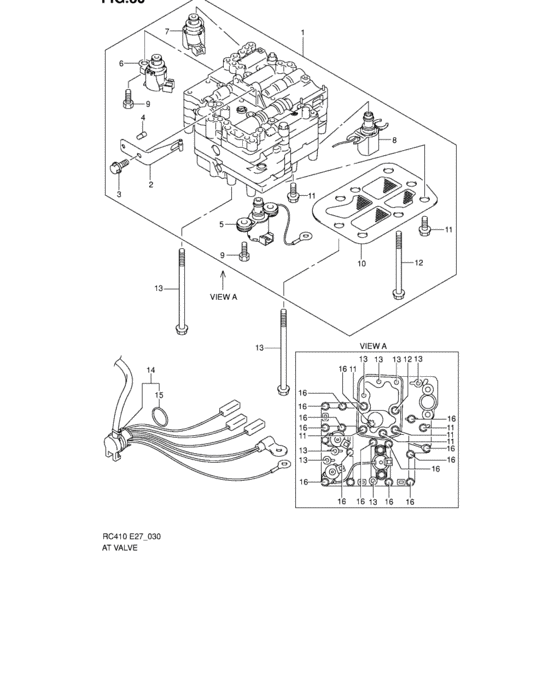

At valve (AT VALVE) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26500-78FH1-000
VALVE ASSY,T/M CONTROL
TYPE 1 |
26500-78FH1-000 |
— | ||
|
1
|
1
26500-78FK0-000
VALVE ASSY,T/M CONTROL
TYPE 2,TYPE 3 |
26500-78FK0-000 |
— | ||
|
2
|
2
25961-78G31-000
SPRING,MANUAL DETENT
|
25961-78G31-000 |
— | ||
|
3
|
3
24772-78G10-000 Bolt |
24772-78G10-000 |
US $3.28 |
||
|
4
|
4
09209-06041-000 PIN |
09209-06041-000 |
US $98.60 |
||
|
5
|
5
26581-78G11-000 SOLENOID ASSY,DUTY |
26581-78G11-000 |
US $129.54 |
||
|
6
|
6
26582-78G10-000
Solenoid assy, low on/off
|
26582-78G10-000 |
— | ||
| replacement | |||||
|
6
|
6
26583-78G10-000 SOLENOID ASSY,ON-OFF |
26583-78G10-000 |
US $84.64 |
||
|
7
|
7
26583-78G10-000 SOLENOID ASSY,ON-OFF |
26583-78G10-000 |
US $84.64 |
||
|
8
|
8
26584-78G10-000 SOLENOID ASSY,N-LOCK UP DUTY |
26584-78G10-000 |
US $116.66 |
||
|
9
|
9
22863-78G10-000 BOLT,SOLENOID |
22863-78G10-000 |
US $2.61 |
||
|
10
|
10
26572-78G10-000 STRAINER,T/M OIL |
26572-78G10-000 |
US $37.17 |
||
|
11
|
11
24772-78G10-000 Bolt |
24772-78G10-000 |
US $3.28 |
||
|
12
|
12
26589-78G10-000 BOLT,VALVE BODY NO.1 |
26589-78G10-000 |
US $2.65 |
||
|
13
|
13
26595-78G10-000 BOLT,VALVE BODY TO CASE |
26595-78G10-000 |
US $4.12 |
||
|
14
|
14
26597-78G50-000 TERMINAL ASSY,SOL HARNESS |
26597-78G50-000 |
US $124.38 |
||
|
15
|
15
26598-78G10-000 O-RING,SOL HARNESS TERMINAL |
26598-78G10-000 |
US $4.12 |
||
|
16
|
16
26596-78G10-000 BOLT,VALVE BODY NO.2 |
26596-78G10-000 |
US $3.53 |
||
