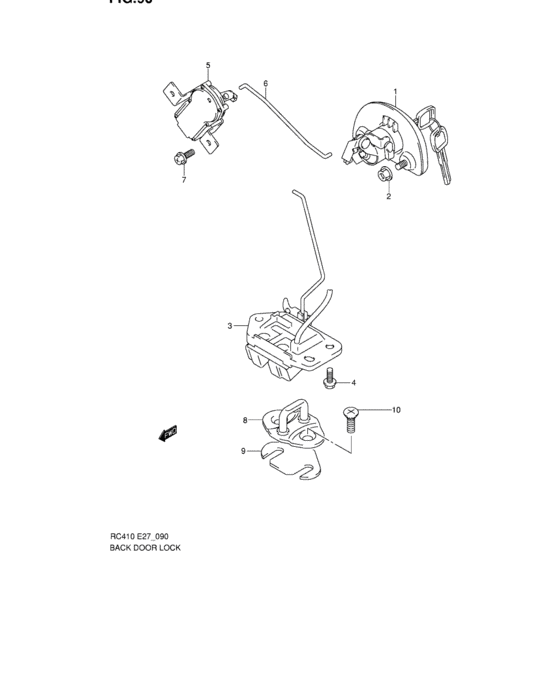

Back door lock (BACK DOOR LOCK) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82500-78810-5PK CYLINDER,BACK DR LOCK |
82500-78810-5PK |
US $88.32 |
||
|
2
|
2
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
3
|
3
82510-78F01-000 LATCH ASSY,BACK DR |
82510-78F01-000 |
from US $80.22 |
||
|
4
|
4
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
5
|
5
82550-76F00-000 ACTUATOR,BACK DR LATCH |
82550-76F00-000 |
US $110.40 |
||
|
6
|
6
82555-76F00-000 ROD,BACK DOOR ACTUATOR |
82555-76F00-000 |
US $4.75 |
||
|
7
|
7
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
8
|
8
82610-60D00-000 STRIKER,DOOR LATCH |
82610-60D00-000 |
from US $9.68 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
from US $0.68 |
||
|
10
|
10
09137-08006-000
Screw
|
09137-08006-000 |
— | ||
| replacements | |||||
|
10
|
10
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
from US $1.40 |
||
|
10
|
10
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
from US $0.99 |
||
