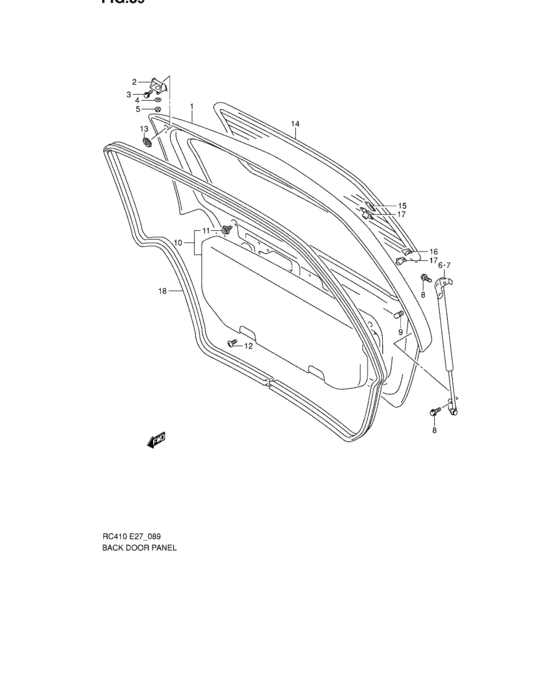

Back door panel (BACK DOOR PANEL) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-78F00-000
パネルアッシ,バックドア
|
69100-78F00-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-78FA0-000
PANEL ASSY,BACK DOOR
|
69100-78FA0-000 |
— | ||
|
2
|
2
69510-76G00-000 HINGE,BACK DOOR |
69510-76G00-000 |
from US $16.49 |
||
|
3
|
3
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0612B-000 BoltBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
01550-0612A-000 Bolt |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
69571-76G00-000 PACKING,BACK DR HNG |
69571-76G00-000 |
US $2.24 |
||
|
5
|
5
08361-25083-000
Nut
|
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.96 |
||
|
6
|
6
81850-78F00-X10
バランサ,バックドア,ライト
|
81850-78F00-X10 |
— | ||
| replacement | |||||
|
6
|
6
81850-78F00-000 BALANCER,BACK DR,R |
81850-78F00-000 |
US $103.04 |
||
|
7
|
7
81860-78F00-X10
バランサ,バックドア,レフト
|
81860-78F00-X10 |
— | ||
| replacement | |||||
|
7
|
7
81860-78F00-000 BALANCER,BACK DR,L |
81860-78F00-000 |
US $103.04 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
82683-60B10-000 CUSHION |
82683-60B10-000 |
from US $1.92 |
||
|
10
|
10
83770-78F01-P4Z TRIM,BACK DOOR |
83770-78F01-P4Z |
US $113.34 |
||
|
11
|
11
76216-76F20-000 CLIP,QTR TRIM |
76216-76F20-000 |
from US $1.89 |
||
|
12
|
12
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
09250-20023-000 CAP(OD:25.8) |
09250-20023-000 |
from US $1.67 |
||
|
14
|
14
84570-78F00-000 GLASS,BACK DR WINDOW |
84570-78F00-000 |
US $397.76 |
||
|
15
|
15
84513-76F00-000 MALE,GLASS FASTENER NO.2 |
84513-76F00-000 |
from US $1.60 |
||
|
16
|
16
84572-74G00-000 MALE,GLASS FASTENER NO.1 |
84572-74G00-000 |
from US $3.20 |
||
|
17
|
17
84515-65D00-000 FEMALE,GLASS FASTENER NO.2 |
84515-65D00-000 |
from US $3.60 |
||
|
18
|
18
84681-78F00-000 WEATHERSTRIP,BACK DR OPNG |
84681-78F00-000 |
US $90.53 |
||
