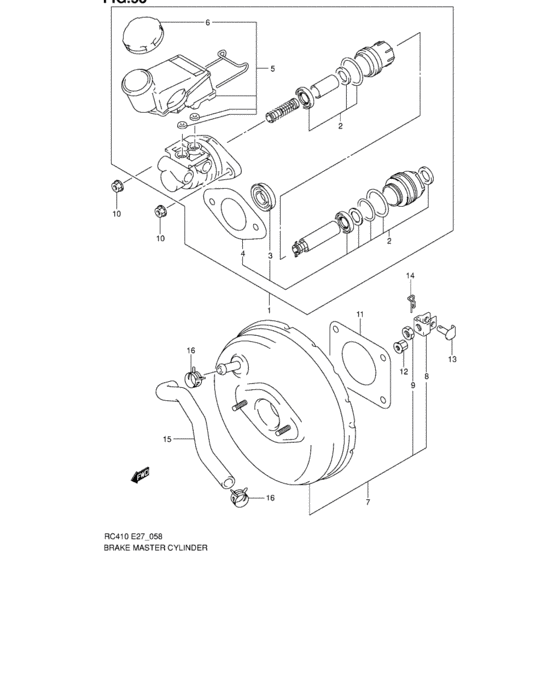

Brake master cylinder (BRAKE MASTER CYLINDER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-78F51-000
シリンダアッシ,ブレーキマスタ
|
51100-78F51-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-80G71-000
CYLINDER ASSY,BRAKE MASTER
|
51100-80G71-000 |
— | ||
|
2
|
2
51810-76F20-000 PISTON SET,BRAKE MASTER |
51810-76F20-000 |
from US $59.49 |
||
|
3
|
3
51311-76F20-000 SEAL,BRAKE MASTER CYLINDER |
51311-76F20-000 |
US $19.50 |
||
|
4
|
4
51312-76F20-000 GASKET,BRAKE MASTER CYLINDER |
51312-76F20-000 |
from US $1.40 |
||
|
5
|
5
51200-78F50-000
RESERVOIR ASSY,MASTER CYLINDER
|
51200-78F50-000 |
— | ||
|
6
|
6
51220-75F51-000
Cap,reservoir
|
51220-75F51-000 |
— | ||
| replacement | |||||
|
6
|
6
51220-77M00-000 CAP,RESERVOIR |
51220-77M00-000 |
from US $20 |
||
|
7
|
7
51300-78F50-000
BOOSTER ASSY,BRAKE MASTER
|
51300-78F50-000 |
— | ||
|
8
|
8
51182-60D10-000 CLEVIS,CYLINDER PUSH ROD |
51182-60D10-000 |
US $14.32 |
||
|
9
|
9
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
09159-08075-000 NUT |
09159-08075-000 |
from US $0.91 |
||
|
11
|
11
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
from US $1.60 |
||
|
12
|
12
09159-08127-000 NUT |
09159-08127-000 |
US $9.90 |
||
|
13
|
13
09200-08069-000 PIN |
09200-08069-000 |
from US $1.37 |
||
|
14
|
14
09385-08007-000 PIN,SNAPClip |
09385-08007-000 |
from US $1.09 |
||
|
15
|
15
51010-78F00-000 HOSE,BRAKE VACUUM |
51010-78F00-000 |
US $41.22 |
||
|
16
|
16
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.33 |
||
