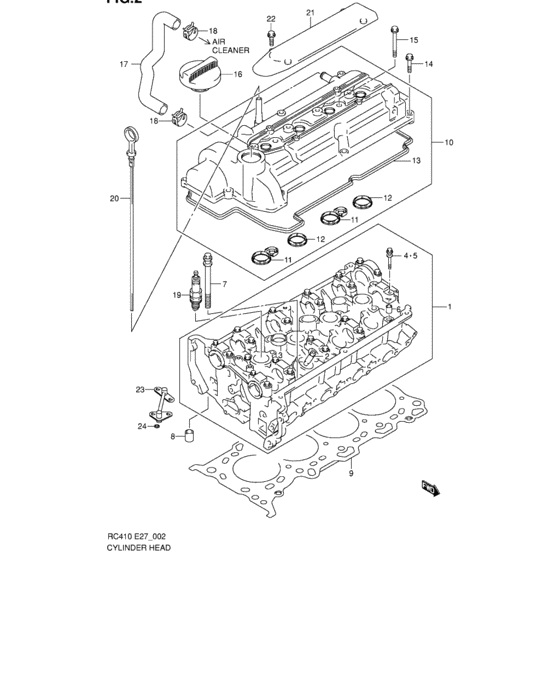

Cylinder head (CYLINDER HEAD) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-78F83-000
ヘッドアッシ,シリンダ
|
11100-78F83-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-78F85-000
HEAD ASSY,CYLINDER
|
11100-78F85-000 |
— | ||
|
2
|
2
11115-73G01-001 GUIDE,VALVE |
11115-73G01-001 |
from US $13.38 |
||
|
3
|
3
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.60 |
||
|
4
|
4
11128-73G60-000 BOLT,CAMSHAFT HOUSING 6X36 |
11128-73G60-000 |
US $1.52 |
||
|
5
|
5
11128-78G70-000 BOLT,CAMSHAFT HOUSING 6X42 |
11128-78G70-000 |
US $2.43 |
||
|
6
|
6
09206-08001-000 PIN(8X11) |
09206-08001-000 |
from US $1.53 |
||
|
7
|
7
11117-73G00-000 BOLT,CYLINDER HEAD |
11117-73G00-000 |
from US $4.80 |
||
|
8
|
8
04211-13189-000 PIN |
04211-13189-000 |
from US $1.22 |
||
|
9
|
9
11141-75F10-000 GASKET,CYL HEAD |
11141-75F10-000 |
from US $77.31 |
||
|
10
|
10
11170-78F90-000
COVER ASSY,CYLINDER HEAD
|
11170-78F90-000 |
— | ||
|
11
|
11
11178-78F90-000 GASKET,SPARK PLUG HOLE NO.1 |
11178-78F90-000 |
from US $8.61 |
||
|
12
|
12
11179-78F90-000 GASKET,SPARK PLUG HOLE NO.2 |
11179-78F90-000 |
from US $6.92 |
||
|
13
|
13
11189-78F90-000 GASKET,CYL HEAD COVER |
11189-78F90-000 |
from US $29.81 |
||
|
14
|
14
09103-06229-000 BOLT(6X35) |
09103-06229-000 |
US $17.70 |
||
|
15
|
15
01547-06553-000
Bolt
|
01547-06553-000 |
— | ||
| replacement | |||||
|
15
|
15
01547-0655B-000 Bolt |
01547-0655B-000 |
from US $1.91 |
||
|
16
|
16
16920-83G00-000
Cap,oil filler
|
16920-83G00-000 |
— | ||
| replacement | |||||
|
16
|
16
16920-83G01-000 CAP OIL FILLER |
16920-83G01-000 |
US $10.22 |
||
|
17
|
17
11191-75F00-000 HOSE,BREATHER |
11191-75F00-000 |
US $15.16 |
||
|
18
|
18
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.26 |
||
|
19
|
19
09482-00448-000 PLUG,SPARK(NGK DCPR7E) |
09482-00448-000 |
from US $7.85 |
||
|
19
|
19
09482-00449-000 PLUG,SPARK(XU22EPR-U) |
09482-00449-000 |
US $11.41 |
||
|
20
|
20
16910-78F00-000 GAUGE,OIL LEVEL |
16910-78F00-000 |
US $16.78 |
||
|
21
|
21
11180-78F00-000
Cover,cyl head upper
|
11180-78F00-000 |
— | ||
|
22
|
22
09103-06232-000 BOLT(6X16) |
09103-06232-000 |
from US $0.47 |
||
|
23
|
23
11150-78G71-000 PIPE,CYLINDER HEAD OIL |
11150-78G71-000 |
US $33.49 |
||
|
24
|
24
11157-78G70-000 O-RING,OIL PIPE |
11157-78G70-000 |
from US $2.06 |
||
