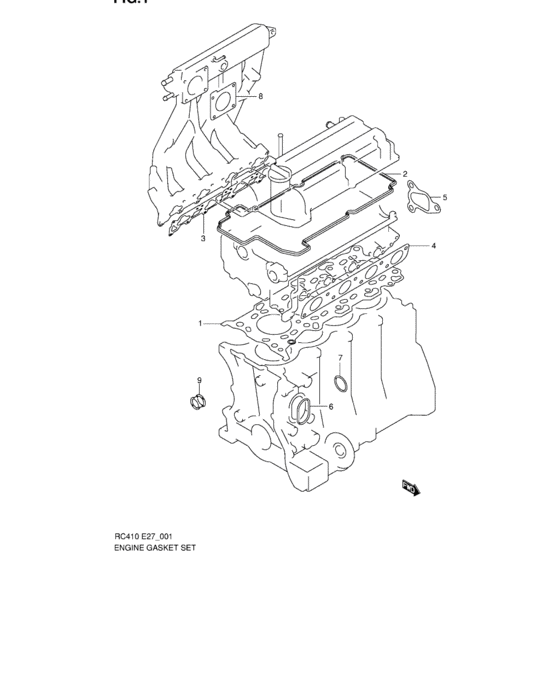

Engine gasket set (ENGINE GASKET SET) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
11403-78810-000
ガスケットセット,エンジン
|
11403-78810-000 |
— | ||
| replacement | |||||
|
|
11403-78814-000 GASKET SET,ENGINE |
11403-78814-000 |
US $104.51 |
||
|
1
|
1
11141-75F10-000 GASKET,CYL HEAD |
11141-75F10-000 |
from US $77.31 |
||
|
2
|
2
11189-78F90-000 GASKET,CYL HEAD COVER |
11189-78F90-000 |
from US $29.81 |
||
|
3
|
3
13119-78F00-000 GASKET,INTK MANF |
13119-78F00-000 |
US $6.55 |
||
|
4
|
4
14140-78F00-000
GASKET,EXH MANF
|
14140-78F00-000 |
— | ||
|
5
|
5
17699-73G01-000 GASKET,THERMOSTAT CASEGasket, thermostat case |
17699-73G01-000 |
from US $3.74 |
||
|
6
|
6
17611-73G00-000
O ring
|
17611-73G00-000 |
— | ||
| replacement | |||||
|
6
|
6
17611-73G03-000 O-RING,WATER PUMP |
17611-73G03-000 |
from US $4.95 |
||
|
7
|
7
17849-53E00-000 O-RING,WATER INLET PIPEO ring, water inlet pipe |
17849-53E00-000 |
from US $1.52 |
||
|
8
|
8
13421-77G00-000 GASKET,THROTTLE BODYGasket, throttle body |
13421-77G00-000 |
from US $2.24 |
||
|
9
|
9
16118-73H00-000 O-RING,OIL PUMP CASE |
16118-73H00-000 |
from US $2.36 |
||
