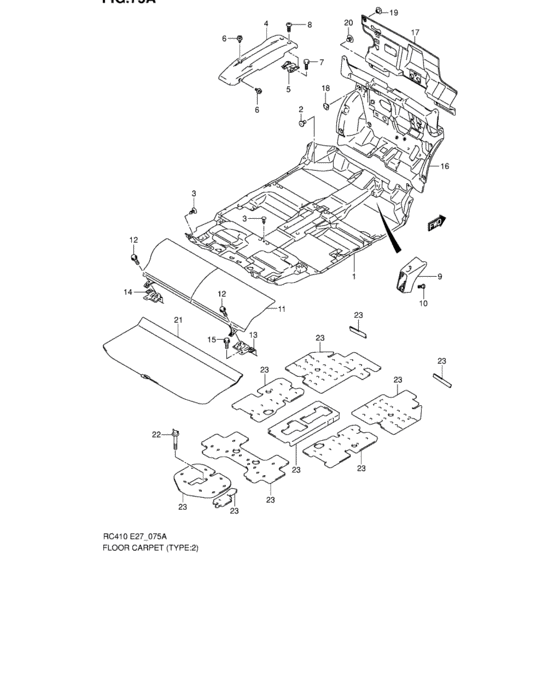

Floor carpet (TYPE 2,3) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-82H00-R3F CARPET,FL |
75110-82H00-R3F |
US $580.80 |
||
|
2
|
2
09148-05042-000 CLIP |
09148-05042-000 |
US $1.12 |
||
|
3
|
3
09409-10302-P4Z CLIP(GRAY) |
09409-10302-P4Z |
US $12.90 |
||
|
4
|
4
75121-78F00-P4Z
COVER,FL CENTER
|
75121-78F00-P4Z |
— | ||
|
5
|
5
75122-78F00-000
ブラケット,フロアセンタカバー
|
75122-78F00-000 |
— | ||
| replacement | |||||
|
5
|
5
75122-78F01-000 BRACKET,FLOOR CENTER COVER |
75122-78F01-000 |
US $6.92 |
||
|
5
|
5
75122-78F01-000 BRACKET,FLOOR CENTER COVERMA64S-122154~ |
75122-78F01-000 |
US $6.92 |
||
|
6
|
6
09409-06322-P4Z CLIP(GRAY) |
09409-06322-P4Z |
from US $1.82 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
8
|
8
03142-05123-000
Screw
|
03142-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
9
|
9
75491-76F00-000 PEDAL,FOOTREST |
75491-76F00-000 |
US $22.26 |
||
|
10
|
10
75492-76G00-000
Clip, footrest
|
75492-76G00-000 |
— | ||
| replacement | |||||
|
10
|
10
75492-76G01-000 CLIP,FOOTREST |
75492-76G01-000 |
US $2.69 |
||
|
11
|
11
75101-82H00-R3F
フラップアッシ,リヤフロア(ブラック)
|
75101-82H00-R3F |
— | ||
| replacement | |||||
|
11
|
11
75101-82H01-R3F
Flap assy,rr floor
|
75101-82H01-R3F |
— | ||
|
12
|
12
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
13
|
13
75451-73H10-000 COVER,RR FL SIDE,R |
75451-73H10-000 |
US $18.77 |
||
|
14
|
14
75456-73H10-000 COVER,RR FL SIDE,L |
75456-73H10-000 |
US $18.77 |
||
|
15
|
15
01551-10203-000
Bolt, 3rd striker
|
01551-10203-000 |
— | ||
| replacement | |||||
|
15
|
15
01551-1020A-000 Bolt |
01551-1020A-000 |
US $17.30 |
||
|
16
|
16
75220-82H00-000
SILENCER,DASH PANEL
|
75220-82H00-000 |
— | ||
|
17
|
17
75280-78F00-000
SILENCER,DASH OUTER
|
75280-78F00-000 |
— | ||
|
18
|
18
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.28 |
||
|
19
|
19
09148-05037-000 CLIP |
09148-05037-000 |
from US $1.28 |
||
|
20
|
20
09409-06321-000 CLIP |
09409-06321-000 |
from US $1.33 |
||
|
21
|
21
75440-82H00-R3F
COVER,SPARE TIRE
|
75440-82H00-R3F |
— | ||
|
22
|
22
75463-70B00-000
SCREW,SPARE TIRE
|
75463-70B00-000 |
— | ||
|
23
|
23
99611-60A01-000 SHEET,SILENCER 800X1000X3CUT AS REQUIRED |
99611-60A01-000 |
US $62.40 |
||
