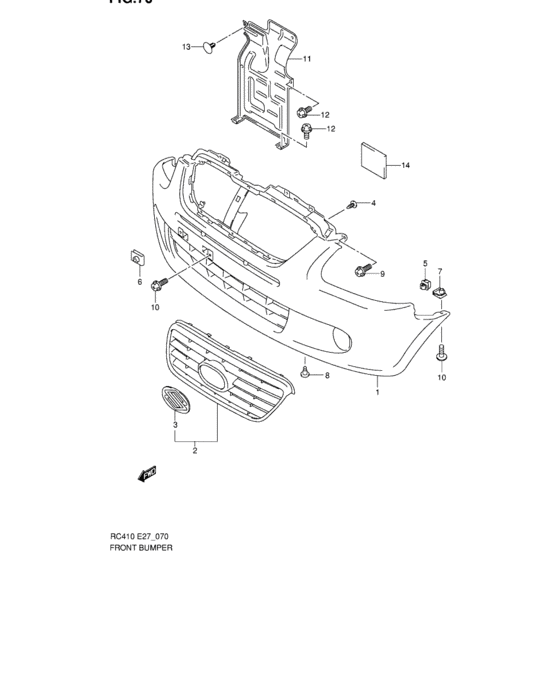

Front bumper (FRONT BUMPER) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-78F00-799 BUMPER,FR(PRIMARY)PAINT TO MATCH |
71711-78F00-799 |
US $454.08 |
||
|
2
|
2
71740-78F20-KG1
GRILLE,RDTR
|
71740-78F20-KG1 |
— | ||
|
3
|
3
77811-52D10-GB2 EMBLEM,S |
77811-52D10-GB2 |
from US $20.36 |
||
|
4
|
4
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
4
|
4
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
4
|
4
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.96 |
||
|
5
|
5
71721-83E00-000 CLIP,FR BUMPER SIDE |
71721-83E00-000 |
US $1.60 |
||
|
6
|
6
71812-82010-000
Nut
|
71812-82010-000 |
— | ||
| replacement | |||||
|
6
|
6
09148-06021-000 NUTNut, air cleaner |
09148-06021-000 |
from US $1.34 |
||
|
7
|
7
09148-05028-000 NUT |
09148-05028-000 |
from US $0.63 |
||
|
8
|
8
09409-08327-000 CLIP |
09409-08327-000 |
from US $1.82 |
||
|
9
|
9
02162-06163-000
Screw
|
02162-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.96 |
||
|
10
|
10
09136-05034-000 SCREW(5X16) |
09136-05034-000 |
from US $0.68 |
||
|
11
|
11
72390-78F00-000 COVER,ENGINE,FR |
72390-78F00-000 |
US $46 |
||
|
12
|
12
02162-06123-000
Bolt (6x12)
|
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket |
02162-0612A-000 |
from US $0.79 |
||
|
13
|
13
09409-05307-5ES CLIP(BLACK) |
09409-05307-5ES |
US $1.60 |
||
|
14
|
14
72152-78F00-000 CUSHION,FR HOOD UPPER |
72152-78F00-000 |
US $2.29 |
||
