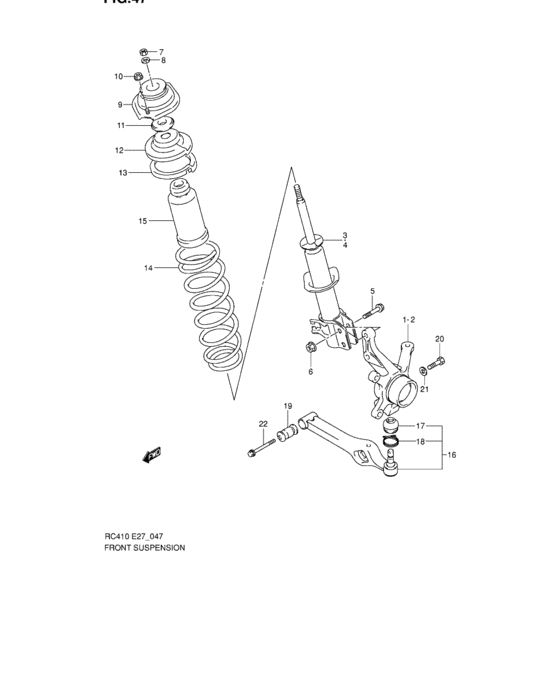

Front suspension (FRONT SUSPENSION) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45110-78810-000 KNUCKLE SET,STEERING,R |
45110-78810-000 |
from US $237.92 |
||
|
2
|
2
45150-78810-000 KNUCKLE SET,STEERING,L |
45150-78810-000 |
US $196.88 |
||
|
3
|
3
41601-78F51-000 STRUT ASSY,FR SUSPENSION,R |
41601-78F51-000 |
US $213.44 |
||
|
4
|
4
41602-78F51-000 STRUT ASSY,FR SUSPENSION,L |
41602-78F51-000 |
US $213.44 |
||
|
5
|
5
09103-12051-000 BOLT(12X50) |
09103-12051-000 |
from US $2.56 |
||
|
6
|
6
08316-10123-000
Nut
|
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
9
|
9
41710-80G10-000 SUPPORT,FRONT STRUT |
41710-80G10-000 |
from US $67.20 |
||
|
10
|
10
09159-08123-000 NUT |
09159-08123-000 |
US $14.40 |
||
|
11
|
11
41741-50E00-000 BEARING,FR STRUTBearing, front strut |
41741-50E00-000 |
from US $23.45 |
||
|
12
|
12
41230-50E00-000 SEAT,FRONT SPRING UPPER |
41230-50E00-000 |
from US $34.16 |
||
|
13
|
13
41211-70B00-000 SEAT,FRONT COIL SPRING |
41211-70B00-000 |
from US $8.28 |
||
|
14
|
14
41111-78FA1-000
SPRING,FRONT COIL
|
41111-78FA1-000 |
— | ||
|
15
|
15
42111-78F00-000 STOPPER,FR BUMP |
42111-78F00-000 |
from US $12.35 |
||
|
16
|
16
45200-76G20-000
ARM ASSY FR SUSPENSION CONTRO
|
45200-76G20-000 |
— | ||
| replacement | |||||
|
16
|
16
45200-76G22-000 ARM ASSY,FR SPNSN CONTROL |
45200-76G22-000 |
from US $135.34 |
||
|
17
|
17
45723-70B00-000
SEAL SET,DUST
|
45723-70B00-000 |
— | ||
| replacements | |||||
|
17
|
17
45723-70B01-000
Seal Set,dust
|
45723-70B01-000 |
— | ||
|
17
|
17
45700-70810-000 Seal Set,dust |
45700-70810-000 |
from US $20.48 |
||
|
18
|
18
09401-27402-000 CLIP |
09401-27402-000 |
from US $1.04 |
||
|
19
|
19
45261-77A10-000 BUSH,FR SUSPENSION CONTROL |
45261-77A10-000 |
from US $19.15 |
||
|
20
|
20
09100-10184-000 BOLT(10X40) |
09100-10184-000 |
from US $1.15 |
||
|
21
|
21
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
21
|
21
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.96 |
||
|
21
|
21
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.96 |
||
|
22
|
22
09117-10025-000
Bolt (10x89.5)
|
09117-10025-000 |
— | ||
| replacement | |||||
|
22
|
22
45215-72J10-000 BOLT,SPNSN ARM FR BUSHING |
45215-72J10-000 |
from US $4.43 |
||
