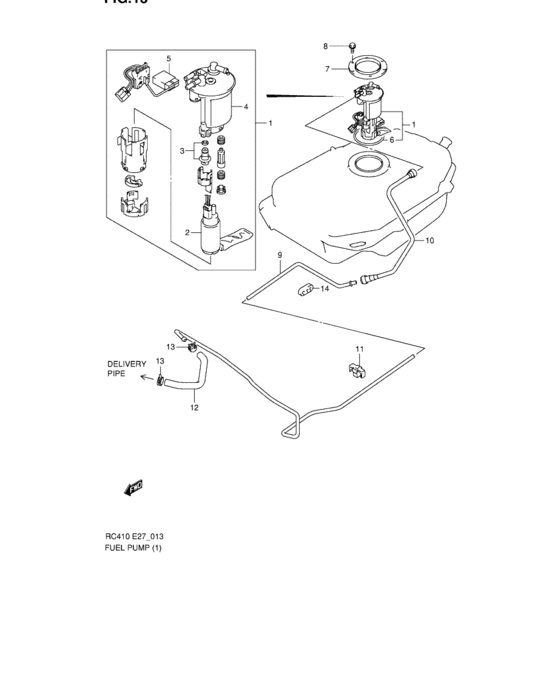

Fuel Pump (TYPE 1) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-78851-000
ポンプセット,フューエル
|
15100-78851-000 |
— | ||
| replacement | |||||
|
1
|
1
15100-78852-000 PUMP SET,FUEL |
15100-78852-000 |
from US $579.89 |
||
|
2
|
2
15110-65G00-000 PUMP ASSY,FUEL |
15110-65G00-000 |
from US $357.50 |
||
|
3
|
3
15610-76G50-000 REGULATOR ASSY,FUEL |
15610-76G50-000 |
from US $51.37 |
||
|
4
|
4
15310-78F00-000
FILTER ASSY
|
15310-78F00-000 |
— | ||
| replacement | |||||
|
4
|
4
15310-78F01-000 FILTER ASSY,FUEL |
15310-78F01-000 |
from US $169 |
||
|
5
|
5
34810-78F00-000 GAUGE ASSY,LEVEL |
34810-78F00-000 |
from US $44.87 |
||
|
6
|
6
15111-50G01-000 GASKET,FUEL PUMP |
15111-50G01-000 |
US $4.82 |
||
|
7
|
7
15121-50G00-000 PLATE,FUEL PUMP |
15121-50G00-000 |
from US $6.26 |
||
|
8
|
8
02162-06103-000
Bolt
|
02162-06103-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0610A-000 SCREW |
02162-0610A-000 |
from US $0.64 |
||
|
9
|
9
15811-78F10-000
PIPE,FUEL
|
15811-78F10-000 |
— | ||
|
10
|
10
15812-78F01-000 PIPE,FUEL PUMP TO PIPE |
15812-78F01-000 |
US $84.80 |
||
|
11
|
11
15893-83G00-000
クランプ,フューエルパイプ
|
15893-83G00-000 |
— | ||
| replacement | |||||
|
11
|
11
15893-83G01-000 CLAMP,FUEL PIPE |
15893-83G01-000 |
US $1.52 |
||
|
12
|
12
15815-78F00-000
HOSE,FUEL PIPE TO ENG
|
15815-78F00-000 |
— | ||
|
13
|
13
09401-11420-000 CLIP |
09401-11420-000 |
from US $1.26 |
||
|
14
|
14
15438-76G00-000 CUSHION,FUEL PIPE |
15438-76G00-000 |
US $6.69 |
||
