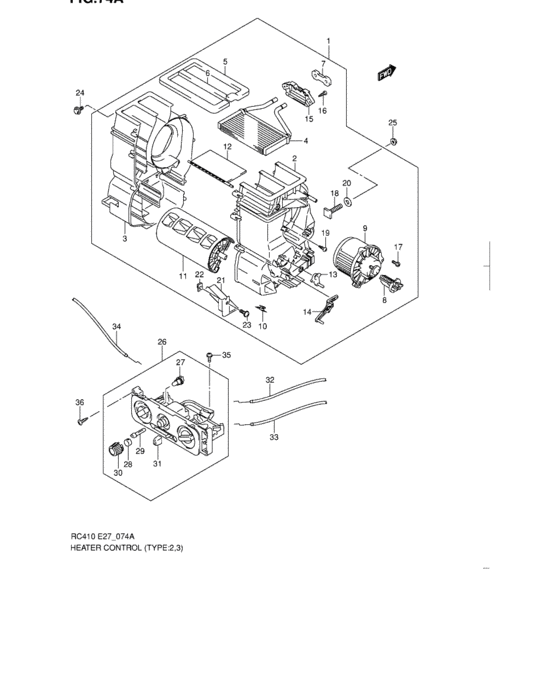

Heater control (TYPE 2,3) Diagram Suzuki WAGON R/PLUS/SOLIO/WIDE
- Year
- -
- Sales region
- Pacific
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-78F03-000
ヒータユニット
|
74100-78F03-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-78F04-000 HEATER UNIT |
74100-78F04-000 |
US $844.80 |
||
|
1
|
1
74100-78F04-000 HEATER UNITMA64S-122172~ |
74100-78F04-000 |
US $844.80 |
||
|
2
|
2
74111-78F04-000
Case, heater rh
|
74111-78F04-000 |
— | ||
| replacement | |||||
|
2
|
2
74111-78F05-000 CASE,HTR,L |
74111-78F05-000 |
US $71.39 |
||
|
2
|
2
74111-78F05-000 CASE,HTR,LMA64S-122172~ |
74111-78F05-000 |
US $71.39 |
||
|
3
|
3
74112-78F02-000
ケース,ヒータ,レフト
|
74112-78F02-000 |
— | ||
| replacement | |||||
|
3
|
3
74112-78F03-000
CASE,HTR,R
|
74112-78F03-000 |
— | ||
|
3
|
3
74112-78F03-000
CASE,HTR,R
MA64S-122172~ |
74112-78F03-000 |
— | ||
|
4
|
4
74120-80G00-000 CORE,HEATER |
74120-80G00-000 |
from US $404.80 |
||
|
5
|
5
74116-78F00-000 PACKING |
74116-78F00-000 |
US $7.51 |
||
|
6
|
6
74117-78F00-000 PACKING |
74117-78F00-000 |
US $6.96 |
||
|
7
|
7
74118-80G00-000 PACKING |
74118-80G00-000 |
US $6.96 |
||
|
8
|
8
74140-78F00-000 RESISTOR,BLOWER |
74140-78F00-000 |
from US $18.36 |
||
|
9
|
9
74150-78F00-000 MOTOR ASSY,FAN |
74150-78F00-000 |
US $345.92 |
||
|
10
|
10
74151-50F00-000 CABLE |
74151-50F00-000 |
from US $2.21 |
||
|
11
|
11
74171-78F00-000 DOOR ASSY,MODE |
74171-78F00-000 |
US $38.27 |
||
|
12
|
12
74172-78F00-000 DOOR ASSY,AIR MIXTURE |
74172-78F00-000 |
US $23.55 |
||
|
13
|
13
74182-78F00-000 LEVER,MODE |
74182-78F00-000 |
US $9.90 |
||
|
14
|
14
74181-78F00-000 LEVER,AIR MXT |
74181-78F00-000 |
US $9.90 |
||
|
15
|
15
74191-78F00-000 BRACKET |
74191-78F00-000 |
US $8.24 |
||
|
16
|
16
03511-04163-000
Screw
|
03511-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03511-0416A-000 SCREW |
03511-0416A-000 |
from US $2.45 |
||
|
17
|
17
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
18
|
18
74115-65D00-000 Bolt |
74115-65D00-000 |
US $3.61 |
||
|
19
|
19
03511-04163-000
Screw
|
03511-04163-000 |
— | ||
| replacement | |||||
|
19
|
19
03511-0416A-000 SCREW |
03511-0416A-000 |
from US $2.45 |
||
|
20
|
20
74119-78F00-000 WASHER,RBR |
74119-78F00-000 |
US $3.53 |
||
|
21
|
21
74910-78F00-000
ADAPTER,HTR,R
MA64S-122172~ |
74910-78F00-000 |
— | ||
|
22
|
22
71812-82010-000
Nut
MA64S-122172~ |
71812-82010-000 |
— | ||
| replacement | |||||
|
22
|
22
09148-06021-000 NUTNut, air cleaner MA64S-122172~ |
09148-06021-000 |
from US $1.34 |
||
|
23
|
23
02112-76163-000
Screw
MA64S-122172~ |
02112-76163-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-7616A-000 SCREWMA64S-122172~ |
02112-7616A-000 |
from US $0.96 |
||
|
24
|
24
09113-06006-000 BOLT(6X20) |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
24
|
24
09113-06014-000 BOLT(6X20) |
09113-06014-000 |
US $14.40 |
||
|
25
|
25
09159-06081-000 NUT |
09159-06081-000 |
from US $1.31 |
||
|
26
|
26
74400-70H02-5PK LEVER ASSY,HTR CONT |
74400-70H02-5PK |
US $291.84 |
||
|
27
|
27
74531-84G00-000 BULB,HTR CONT PNL |
74531-84G00-000 |
from US $7.90 |
||
|
28
|
28
95521-84G00-000 KNOB,A/C SW |
95521-84G00-000 |
from US $2.43 |
||
|
29
|
29
95522-84G00-000 INDICATOR,A/C SW |
95522-84G00-000 |
US $1.52 |
||
|
30
|
30
74462-84G01-000 KNOB,FAN SWITCH |
74462-84G01-000 |
US $5.33 |
||
|
31
|
31
74463-84G00-000 KNOB,FRESH AIR |
74463-84G00-000 |
US $2.43 |
||
|
32
|
32
74451-73H00-000 CABLE,MODE CONTROL L:430NATURAL |
74451-73H00-000 |
US $8.72 |
||
|
33
|
33
74452-82G00-000 CABLE,TEMP CONTROL L:430BLUE |
74452-82G00-000 |
US $8.50 |
||
|
34
|
34
74453-70H00-000 CABLE,FRESH AIR CONTROL L:555BLACK |
74453-70H00-000 |
US $11 |
||
|
35
|
35
09136-05060-000 SCREW(5X16) |
09136-05060-000 |
from US $0.81 |
||
|
36
|
36
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
36
|
36
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
